2GR-FE ENGINE CONTROL SYSTEM – THROTTLE BODY
ES
ENGINE2GR-FE ENGINE CONTROL SYSTEM
THROTTLE BODY

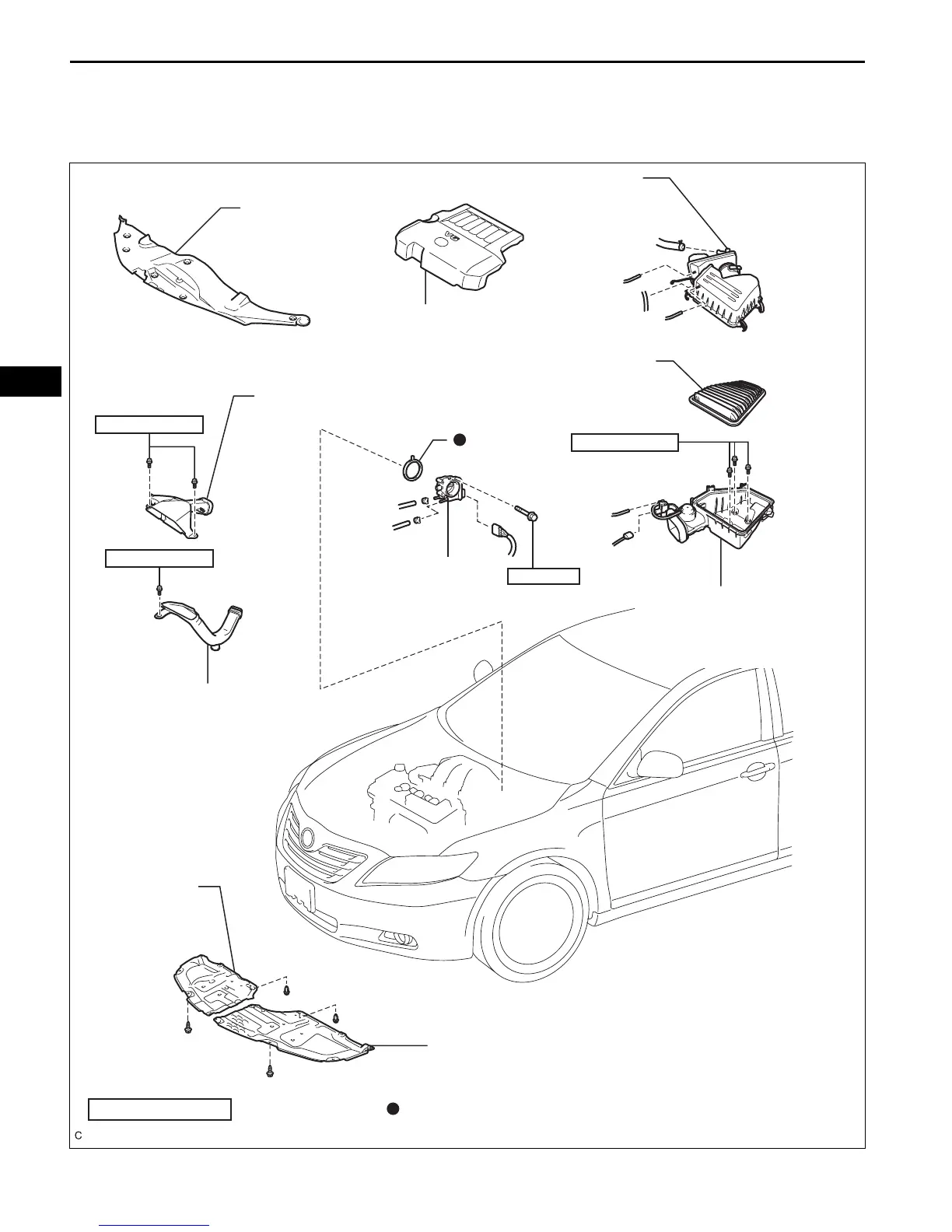

COMPONENTS
AIR CLEANER
SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf)
: Specified torque
Non-reusable part
5.0 (51, 44 in.*lbf)
5.0 (51, 44 in.*lbf)
5.0 (51, 44 in.*lbf)
ENGINE UNDER COVER LH
ENGINE UNDER
COVER RH
GASKET
10 (102, 7)
x4
AIR CLEANER CAP SUB-ASSEMBLY
AIR CLEANER CASE
SUB-ASSEMBLY
AIR CLEANER INLET ASSEMBLY
COOL AIR INTAKE
DUCT SEAL
THROTTLE BODY
V-BANK COVER
SUB-ASSEMBLY
NO. 1 AIR CLEANER INLET
A135108E01

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
