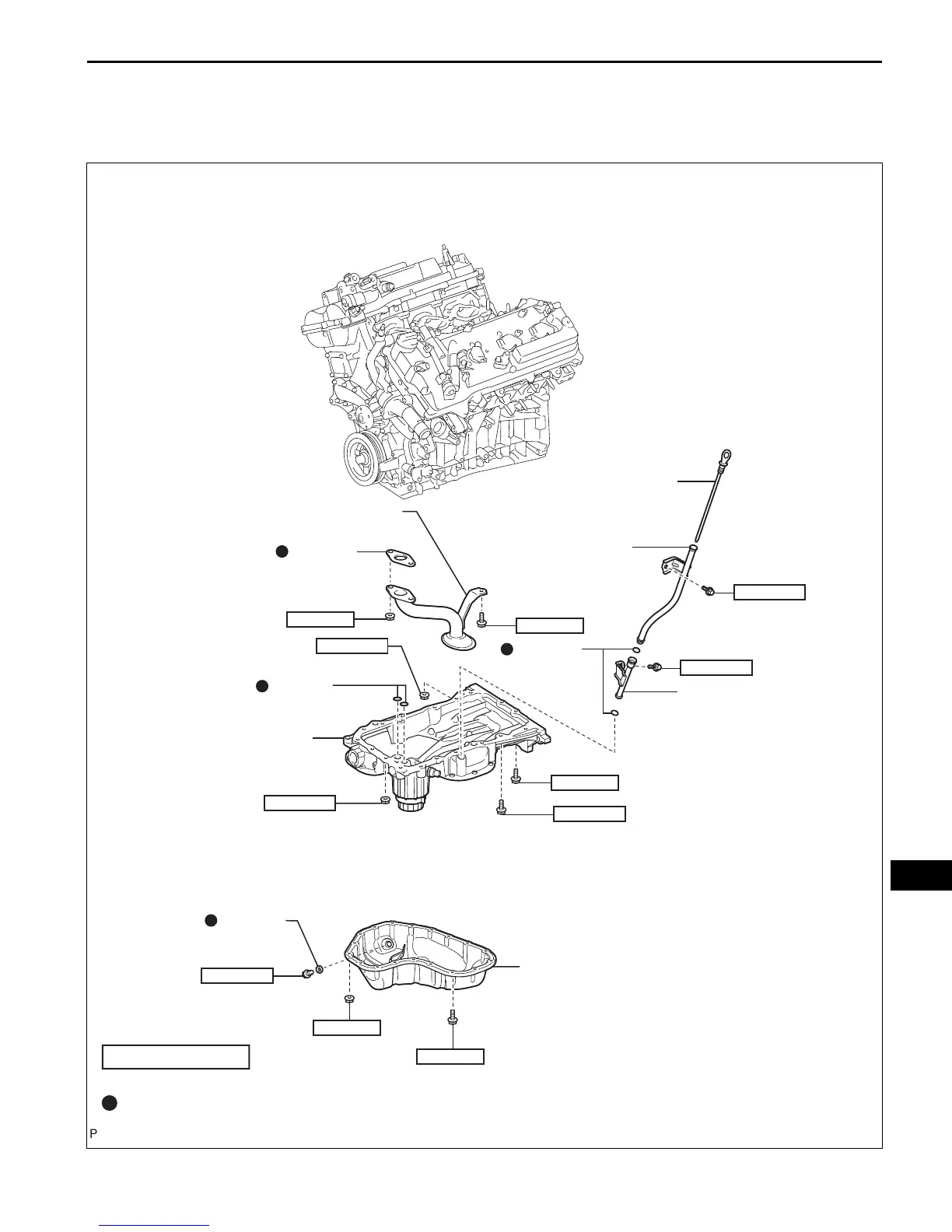

2GR-FE LUBRICATION – OIL PUMP
LU–7
LU
ENGINE2GR-FE LUBRICATION
OIL PUMP
COMPONENTS
Non-reusable part
: Specified torqueN*m (kgf*cm, ft.*lbf)
GASKET
GASKET
O-RING
OIL PAN DRAIN PLUG
x2
x2
x16
40 (408, 30)
10 (102, 7)
10 (102, 7)
21 (214, 15)
21 (214, 15)
10 (102, 7)
x2
x14
21 (214, 15)
10 (102, 7)
10 (102, 7)
GASKET
21 (214, 15)
21 (214, 15)
NO. 2 OIL PAN SUB-ASSEMBLY
OIL PAN SUB-ASSEMBLY
OIL STRAINER SUB-ASSEMBLY
OIL LEVEL GAUGE
NO. 2 OIL LEVEL
GAUGE GUIDE
NO. 1 OIL LEVEL
GAUGE GUIDE
A141061E01
