2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM–83
EM

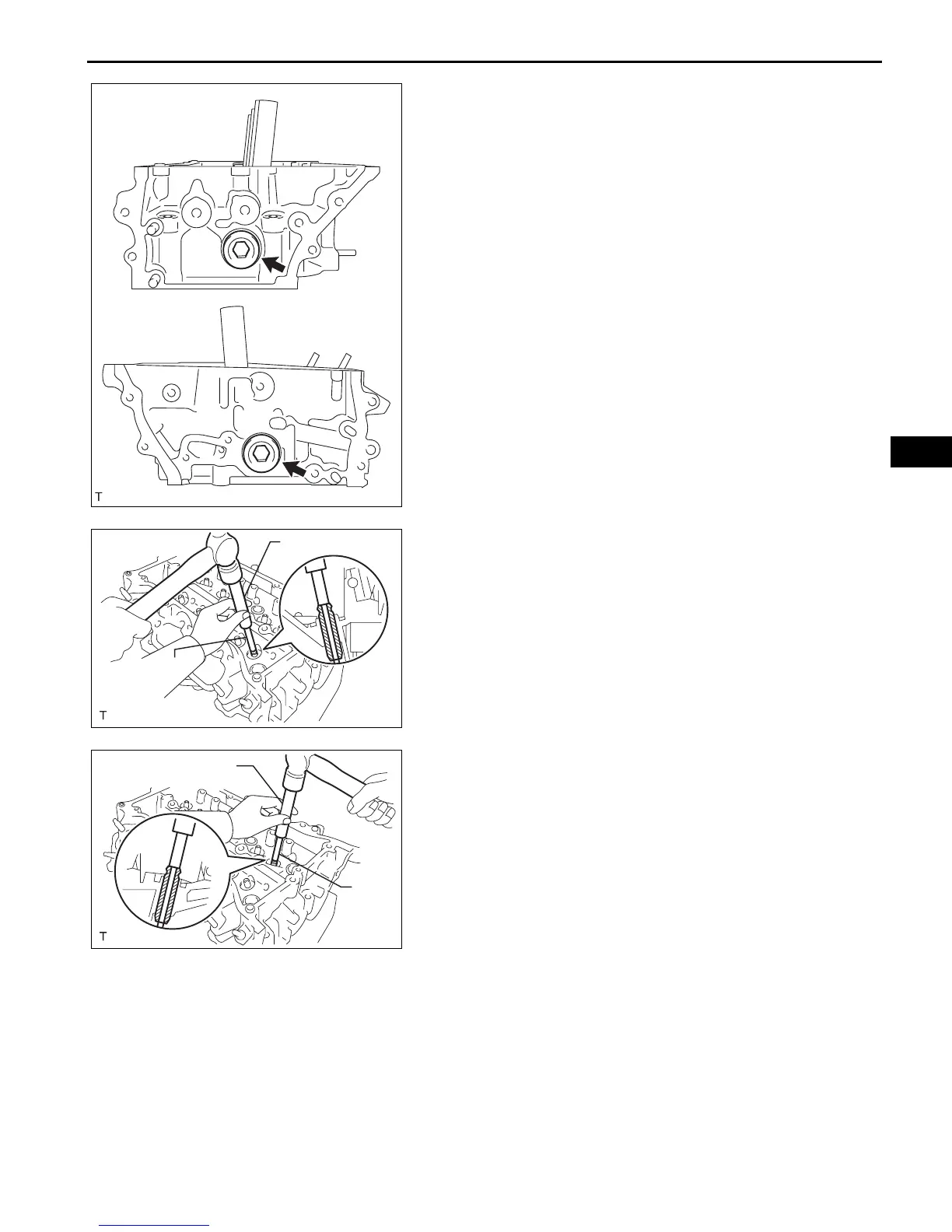

58. REMOVE NO. 2 STRAIGHT SCREW PLUG
(a) Using a 14 mm hexagon wrench, remove the screw
plugs and gaskets.
NOTICE:
If water leaks from the straight screw plug or the
plug corrodes, replace it.
59. REMOVE RING PIN
NOTICE:
It is not necessary to remove the ring pin unless it is
being replaced.
60. REMOVE STUD BOLT
NOTICE:
If the stud bolt is deformed or the threads are
damaged, replace it.
61. REMOVE INTAKE VALVE GUIDE BUSH
(a) Heat the cylinder head to 80 to 100°C (176 to
212°F).
(b) Place the cylinder head on wooden blocks.
(c) Using SST and a hammer, tap out the guide
bushes.
SST 09201-10000 (09201-01050), 09950-70010
(09951-07100)
62. REMOVE EXHAUST VALVE GUIDE BUSH
(a) Heat the cylinder head to 80 to 100°C (176 to
212°F).
(b) Place the cylinder head on wooden blocks.
(c) Using SST and a hammer, tap out the guide
bushes.
SST 09201-10000 (09201-01050), 09950-70010
(09951-07100)
63. REMOVE PISTON SUB-ASSEMBLY WITH
CONNECTING ROD
(a) Check that the matchmarks on the connecting rod
and cap are aligned.
HINT:
The matchmarks on the connecting rods and caps
are for ensuring the correct reassembly.
RH Bank:
LH Bank:
A129719E01
SST
SST
A121839E02
SST
SST
A120709E02
To Next Page
