2GR-FE COOLING – WATER PUMP
CO–7
CO
ENGINE2GR-FE COOLING
WATER PUMP

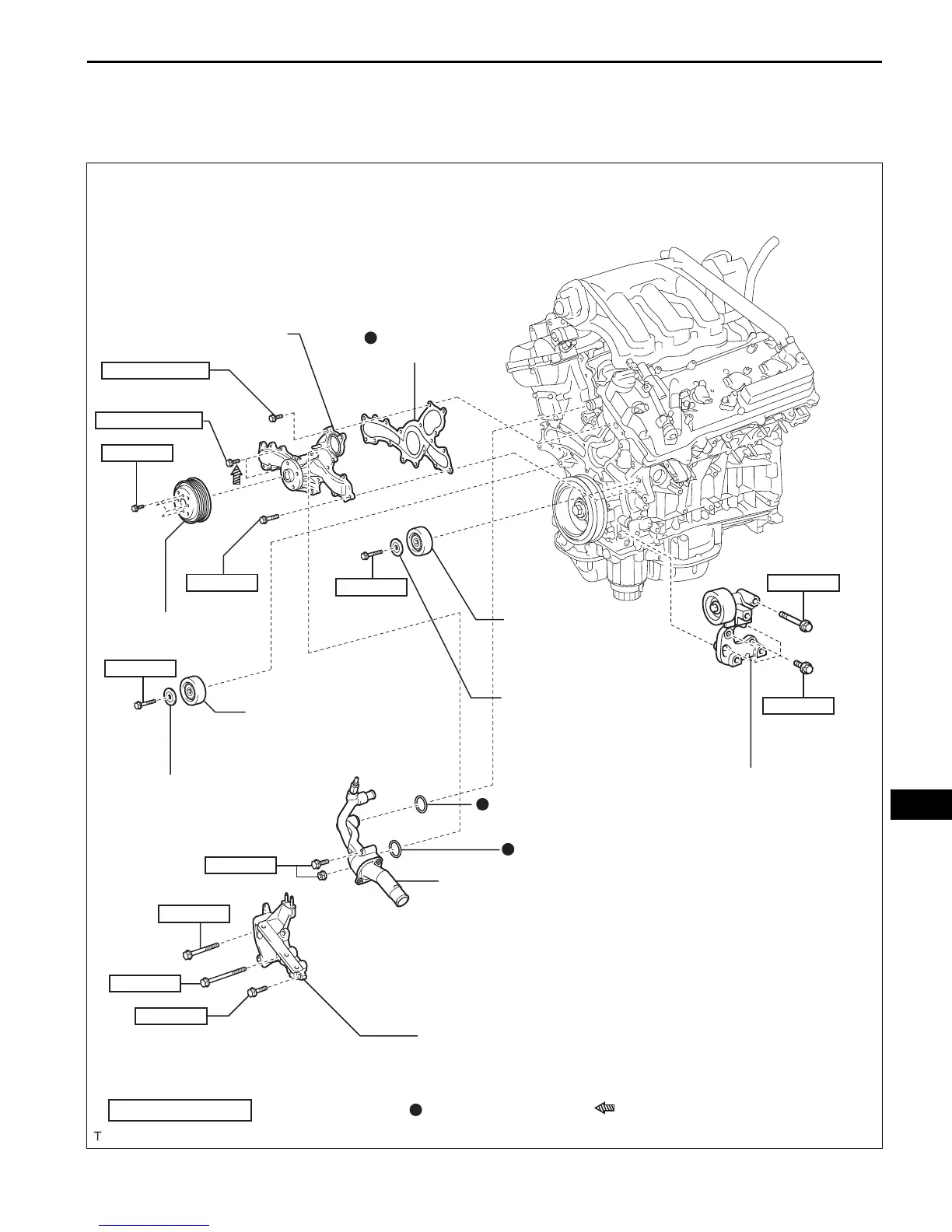

COMPONENTS
NO. 2 IDLER PULLEY
SUB-ASSEMBLY
V-RIBBED BELT TENSIONER
ASSEMBLY
WATER INLET HOUSING
WATER PUMP ASSEMBLY
WATER PUMP PULLEY
NO. 2 IDLER PULLEY
SUB-ASSEMBLY
9.1 (93, 81 in.*lbf)
21 (214, 15)
54 (551, 40)
54 (551, 40)
54 (551, 40)
43 (438, 32)
43 (438, 32)
43 (438, 32)
43 (438, 32)
10 (102, 7)
GASKET
O-RING
9.1 (93, 81 in.*lbf)
N*m (kgf*cm, ft.*lbf)
: Specified torque
Non-reusable part
21 (214, 15)
×5
×9
×2
×3
×2
Precoated part
GASKET
NO. 2 IDLER PULLY
COVER PLATE
NO. 1 ENGINE MOUNTING BRACKET FRONT LH
NO. 2 IDLER PULLEY
COVER PLATE
A134976E07

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
