2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM–41
EM

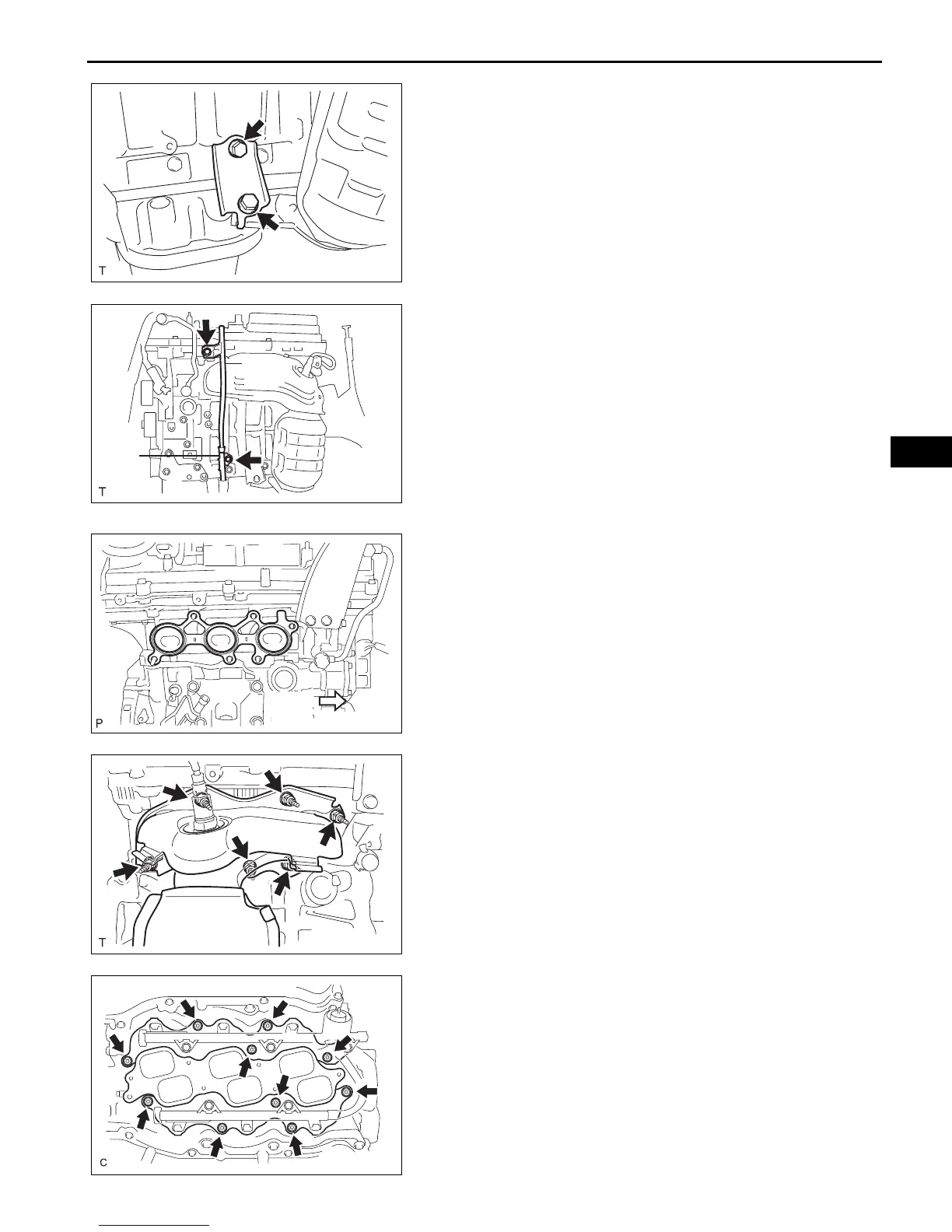

15. INSTALL NO. 2 MANIFOLD STAY
(a) Install the No. 2 manifold stay with the 2 bolts.
Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)
16. INSTALL OIL LEVEL GAUGE GUIDE SUB-
ASSEMBLY
(a) Install 2 new O-rings to the oil level gauge guide.
(b) Apply a light coat of engine oil to the O-rings.
(c) Push in the oil level gauge guide end into the guide
hole.
(d) Install the oil level gauge guide No. 1 with the bolt.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
(e) Install the oil level gauge guide No. 2 with the bolt.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
(f) Install the oil level gauge.
17. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
(a) Install a new gasket as shown in the illustration.
(b) Install the exhaust manifold sub-assembly RH with
the 6 nuts.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
18. INSTALL INTAKE MANIFOLD
(a) Set a new gasket on each cylinder head.
NOTICE:
• Align the port holes of the gasket and
cylinder head.
• Make sure that the gasket is installed in the
correct direction.
(b) Set the intake manifold on the cylinder heads.
A129639
No. 1
No. 2
A129638E01
Front
A129650E01
A129637
A134933
To Next Page
