2GR-FE ENGINE MECHANICAL – ENGINE REAR OIL SEAL
EM–13
EM
2. INSTALL DRIVE PLATE AND RING GEAR SUB-
ASSEMBLY

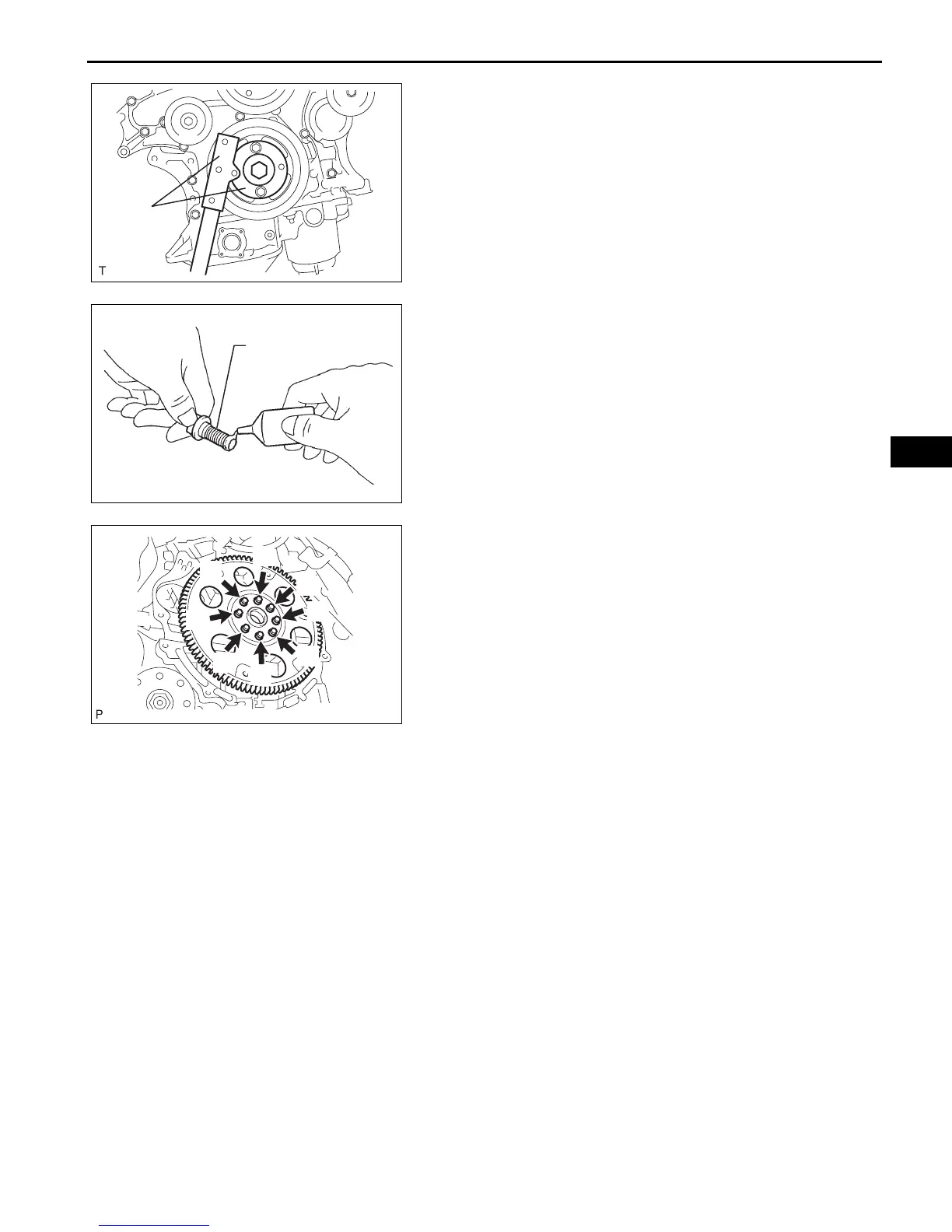

(a) Using SST, hold the crankshaft.
SST 09213-70011 (09213-70020), 09330-00021
(b) Apply adhesive to 2 or 3 threads of the mounting
bolt end.
Adhesive:
Part No. 08833-00070, THREE BOND 1324 or
equivalent
(1) Install the front spacer, drive plate and rear
spacer on the crankshaft.
(2) Install and tighten the 8 mounting bolts
uniformly in several steps.
Torque: 83 N*m (850 kgf*cm, 61 ft.*lbf)
3. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
HINT:
See page AX-214.
SST
A129631E01
Adhesive
P000601E04
1
7
4
6
2
8
3
5
A132243E01

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
