2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM–53
EM
ENGINE2GR-FE ENGINE MECHANICAL
ENGINE UNIT

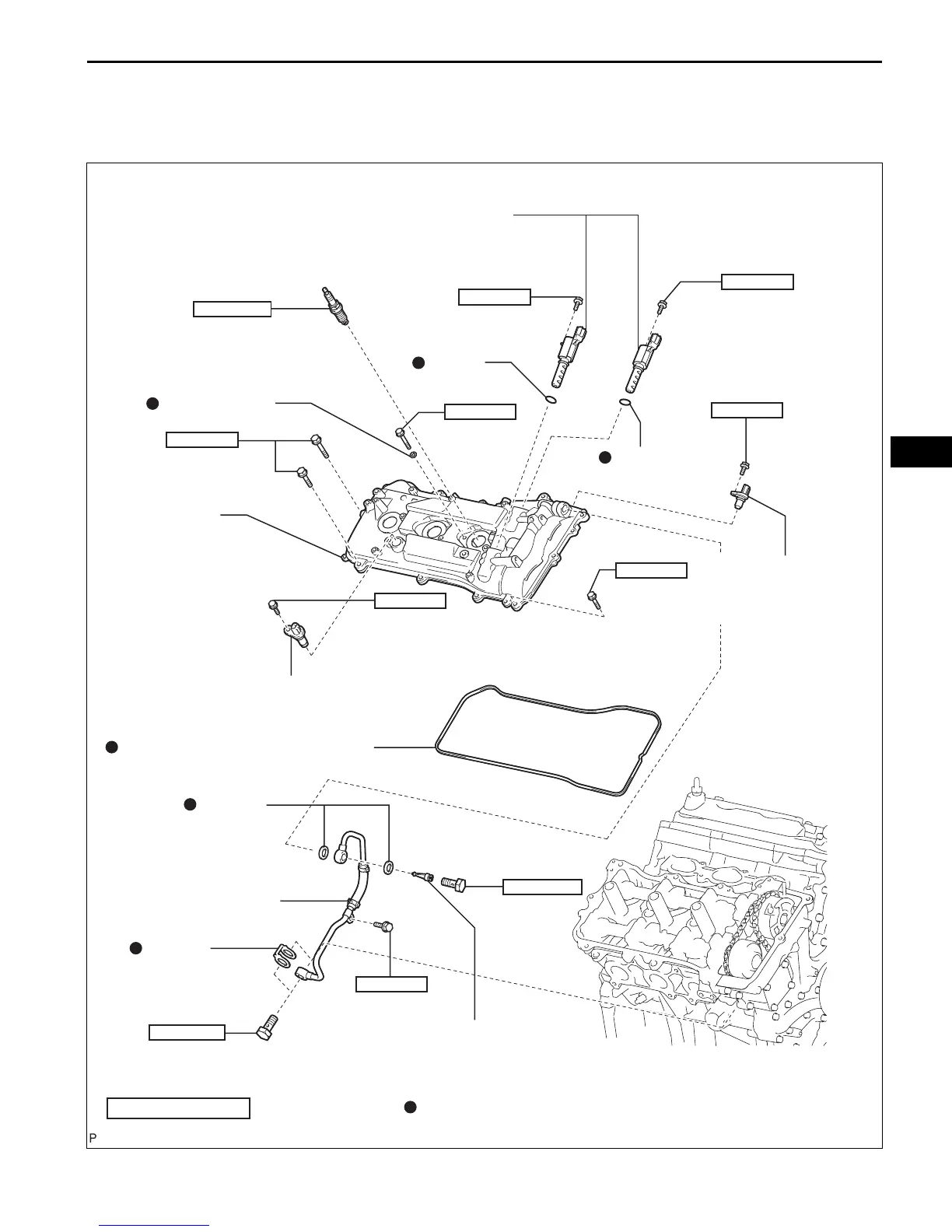

COMPONENTS
N*m (kgf*cm, ft.*lbf)
: Specified torque Non-reusable part
SPARK PLUG
10 (102, 7)
18 (184, 13)
10 (102, 7)
10 (102, 7)
CAMSHAFT POSITION
SENSOR
10 (102, 7)
10 (102, 7)
CYLINDER HEAD COVER GASKET
x3
SEAL WASHER
21 (214, 15)
CAMSHAFT POSITION SENSOR
10 (102, 7)
GASKET
GASKET
65 (663, 48)
OIL CONTROL VALVE FILTER RH
x9
RH SIDE:
O-RING
O-RING
CYLINDER
HEAD COVER
SUB-ASSEMBLY
CAMSHAFT TIMING OIL
CONTROL VALVE ASSEMBLY
10 (102, 7)
65 (663, 48)
OIL PIPE
A132493E01

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
