EM–40
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM

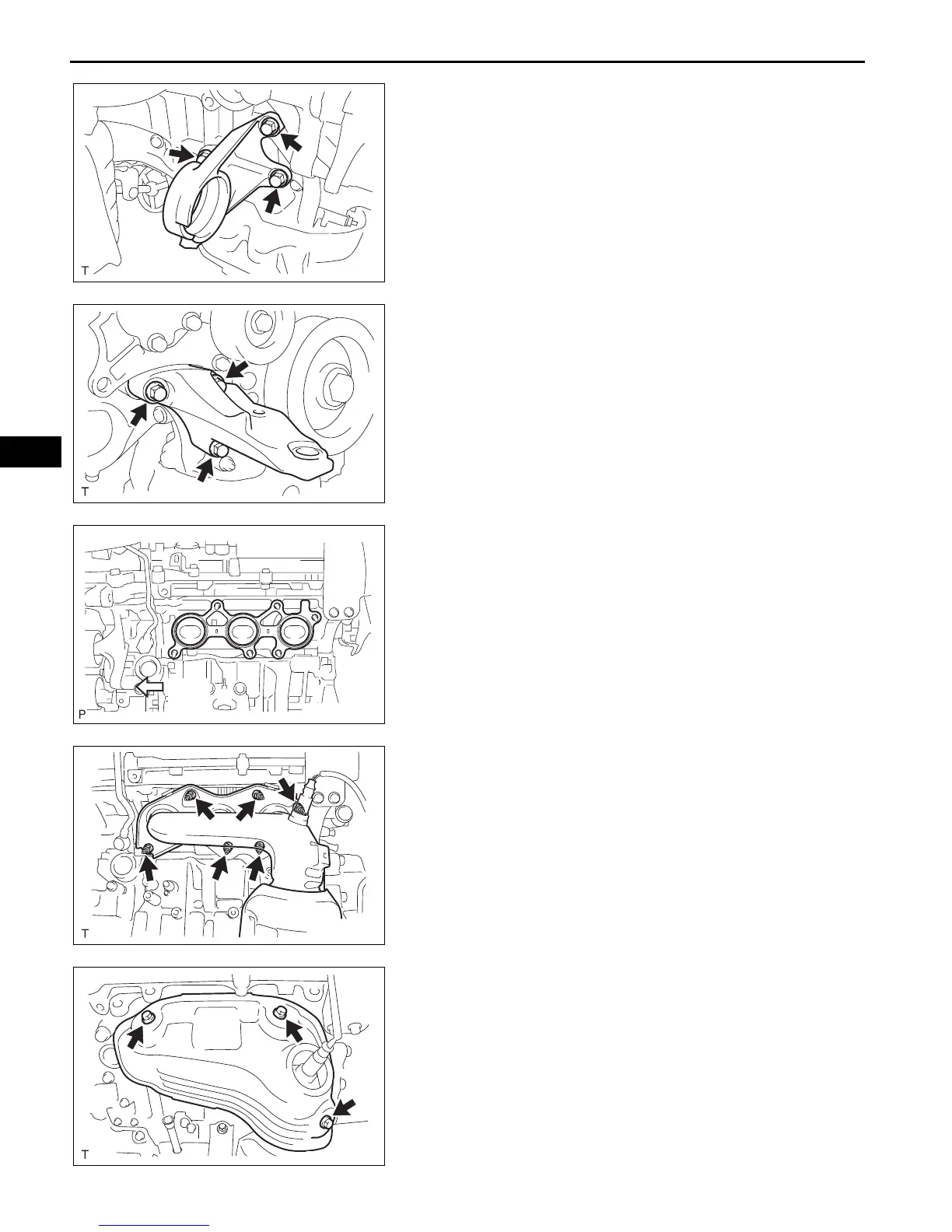

11. INSTALL DRIVE SHAFT BEARING BRACKET
(a) Install the drive shaft bearing bracket with the 3
bolts.
Torque: 64 N*m (650 kgf*cm, 47 ft.*lbf)
12. INSTALL ENGINE MOUNTING BRACKET RH
(a) Install the engine mounting bracket RH with the 3
bolts.
Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)
13. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH
(a) Install a new gasket as shown in the illustration.
(b) Install the exhaust manifold sub-assembly LH with
the 6 nuts.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
14. INSTALL NO. 2 EXHAUST MANIFOLD HEAT
INSULATOR
(a) Install the No. 2 insulator with the 3 bolts.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
