2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM–71
EM

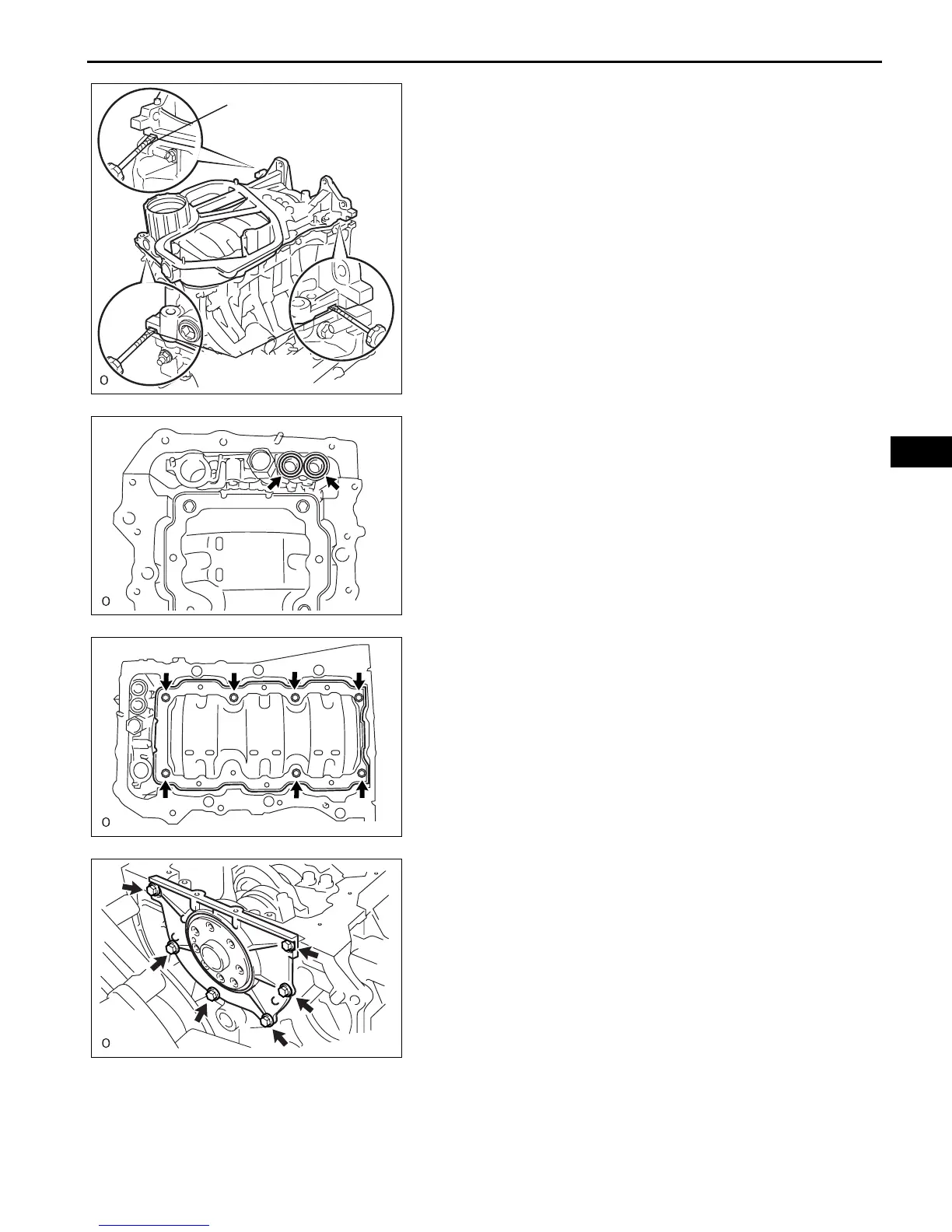

(b) Remove the oil pan by prying between the oil pan
and cylinder block with a screwdriver.
NOTICE:
Be careful not to damage the contact surfaces of
the cylinder block and oil pan.
HINT:
Tape the screwdriver tip before use.
(c) Remove the 2 O-rings.
(d) Using "Torx" socket wrench E8, remove the 2 stud
bolts.
21. REMOVE OIL PAN BAFFLE PLATE
(a) Remove the 7 bolts and baffle plate.
22. REMOVE ENGINE REAR OIL SEAL RETAINER
(a) Remove the 6 bolts.
Protective Tape
Protective Tape
A129683E01
A129684
A129685
A129686

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
