2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM–43
EM

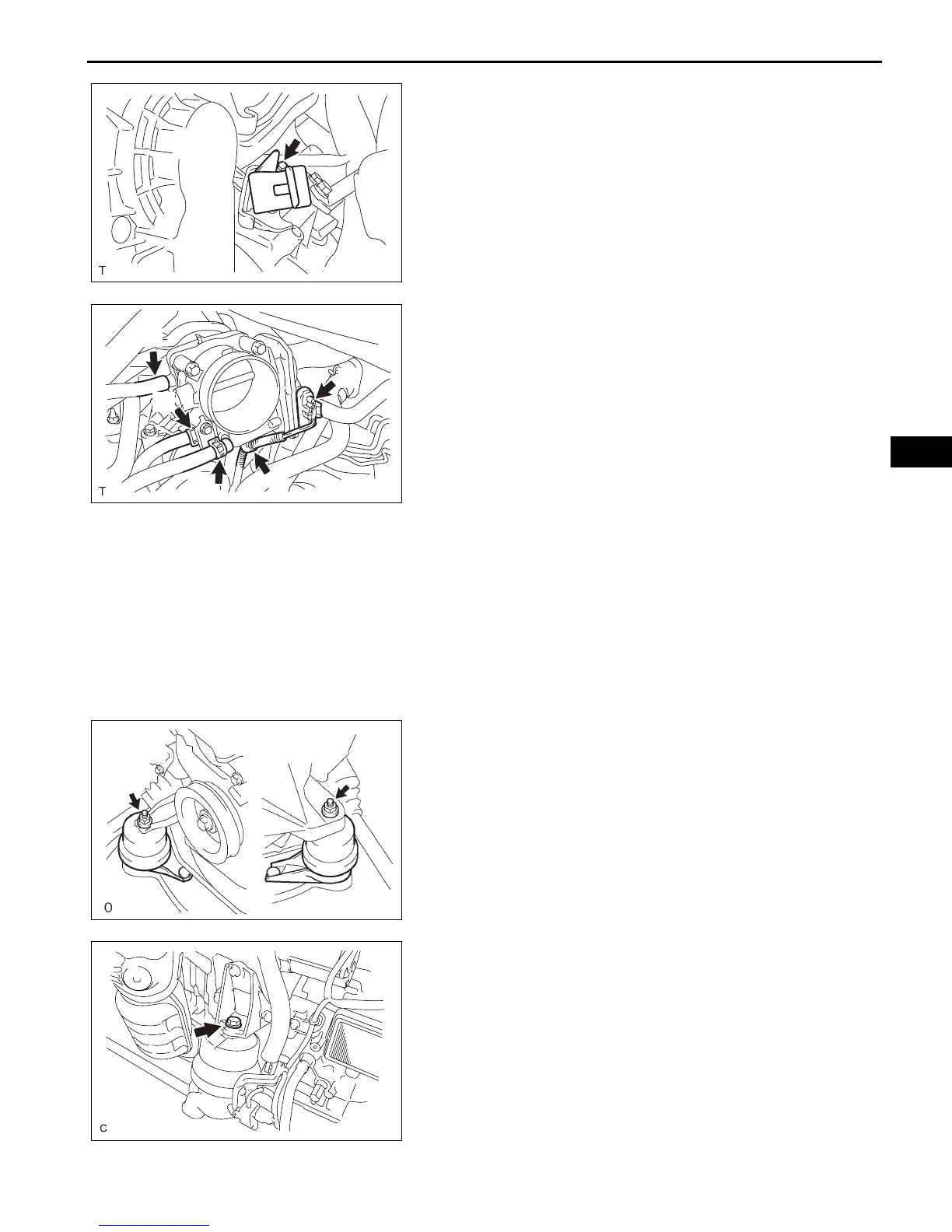

(e) Install the vacuum hose clamp with the bolt.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
(f) Connect the No. 1 ventilation hose.
(g) Install the clamp and connect the throttle with motor
body assembly connector.
(h) Connect the vapor feed hose.
(i) Connect the 2 water by-pass hoses to the throttle
with motor body assembly.
22. REMOVE ENGINE STAND
23. INSTALL DRIVE PLATE AND RING GEAR SUB-
ASSEMBLY (See page EM-13)
24. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
HINT:
See page AX-214.
25. INSTALL STARTER ASSEMBLY (See page ST-148)
26. INSTALL ENGINE WIRE
27. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH (See
page DS-20)
28. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH (See
page DS-21)
29. INSTALL FRONT FRAME ASSEMBLY
(a) Install the engine mounting insulators RH and LH
with the 2 nuts.
Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)
(b) Install the engine mounting insulator FR with the
bolt.
Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)
A129466
(i)
(i)
(h)
(g)
(g)
A129464E04
RH Side: LH Side:
A078403E06
A132988
To Next Page
