2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM–35
EM

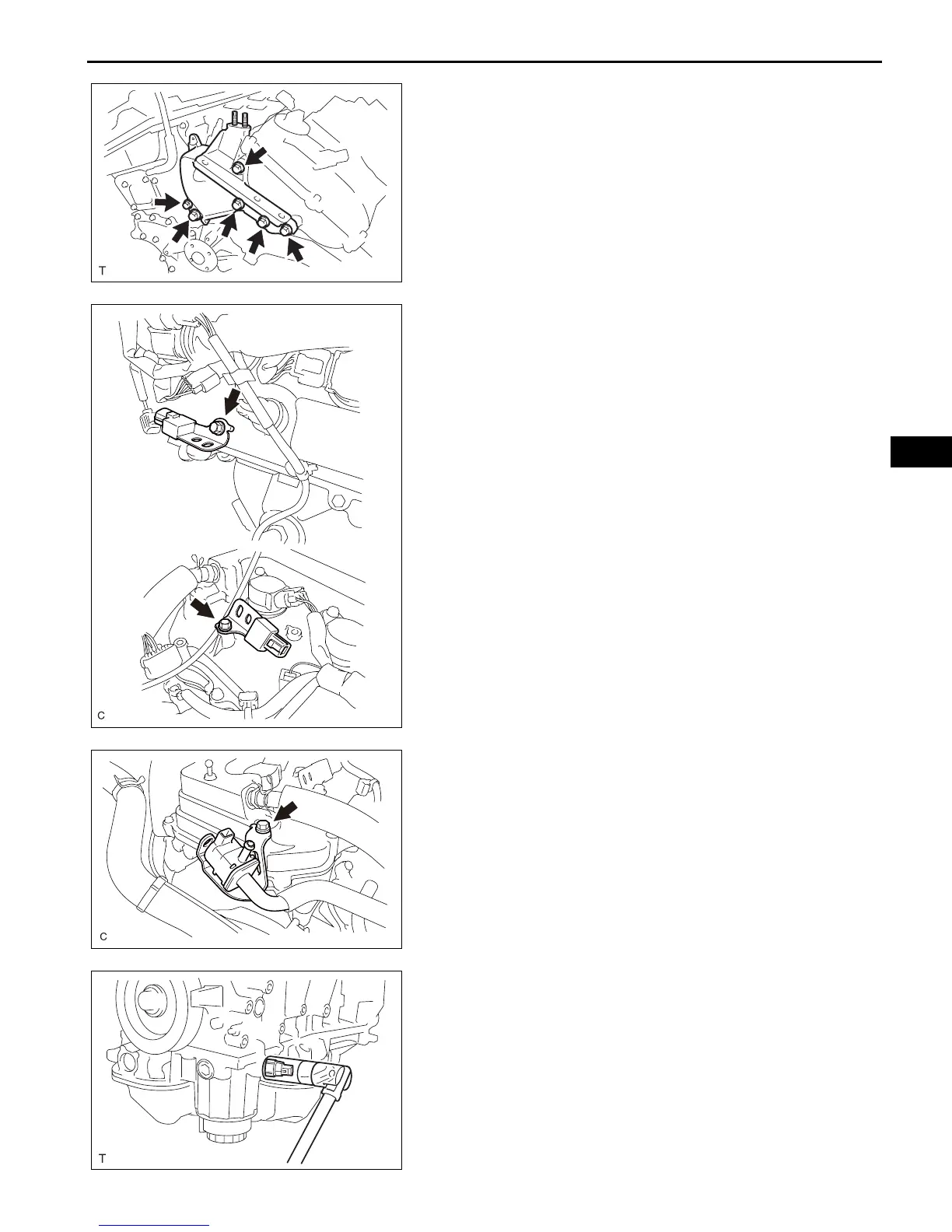

84. REMOVE NO. 1 ENGINE MOUNTING BRACKET
FRONT LH
(a) Remove the 6 bolts and No. 1 engine mounting
bracket front LH.
85. REMOVE RADIO SETTING CONDENSER
(a) Remove the 2 bolts and 2 radio setting condensers.
86. REMOVE NO. 1 VACUUM SWITCHING VALVE
ASSEMBLY
(a) Remove the bolt and No. 1 vacuum switching valve.
87. REMOVE ENGINE OIL PRESSURE SWITCH
ASSEMBLY
(a) Using a 24 mm deep socket wrench, remove the
engine oil pressure switch assembly.
88. REMOVE KNOCK CONTROL SENSOR (See page ES-
511)
A129646
A132991
A132992
A129647

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
