EM–42
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM
(c) Install and tighten the 6 bolts and 4 nuts uniformly in
several steps.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
19. INSTALL NO. 2 ENGINE MOUNTING STAY RH
(a) Install the No. 2 mounting stay RH with the bolt.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
20. INSTALL IGNITION COIL ASSEMBLY
(a) Install the 6 ignition coil assemblies with the 6 bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

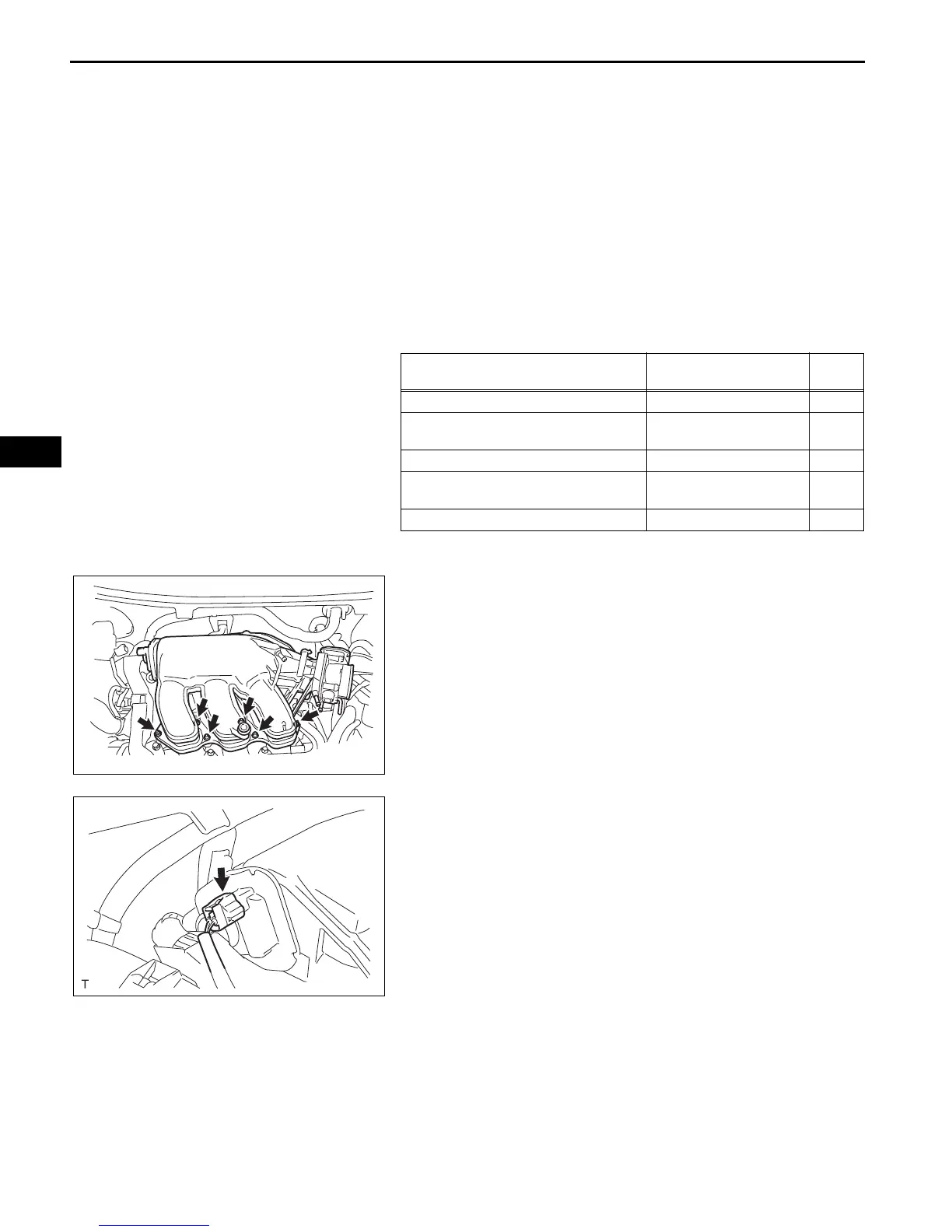

21. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
NOTICE:
DO NOT apply oil to the bolts as listed below
(a) Install a new gasket to the intake air surge tank.
(b) Using a 5 mm hexagon socket wrench, install the 4
bolts and 2 nuts.
Torque: Bolt
18 N*m (184 kgf*cm, 13 ft.*lbf)
Nut
16 N*m (163 kgf*cm, 12 ft.*lbf)
(c) Install the throttle body bracket, No. 1 surge tank
stay and 4 bolts.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
(d) Connect the connector.
Tightening Parts
Torque
N*m (kgf*cm, ft.*lbf)
QTY
Surge Tank and Intake Manifold 18 (184, 13) 4
No. 1 Surge Tank Stay and Cylinder
Head Cover
21 (214, 15) 1
No. 1 Surge Tank Stay and Surge Tank 21 (214, 15) 1
Throttle Body Bracket and Cylinder
Head Cover
21 (214, 15) 1
Throttle Body Bracket and Surge Tank 21 (214, 15) 1
A139209
A129467
To Next Page
