EM–82
2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM

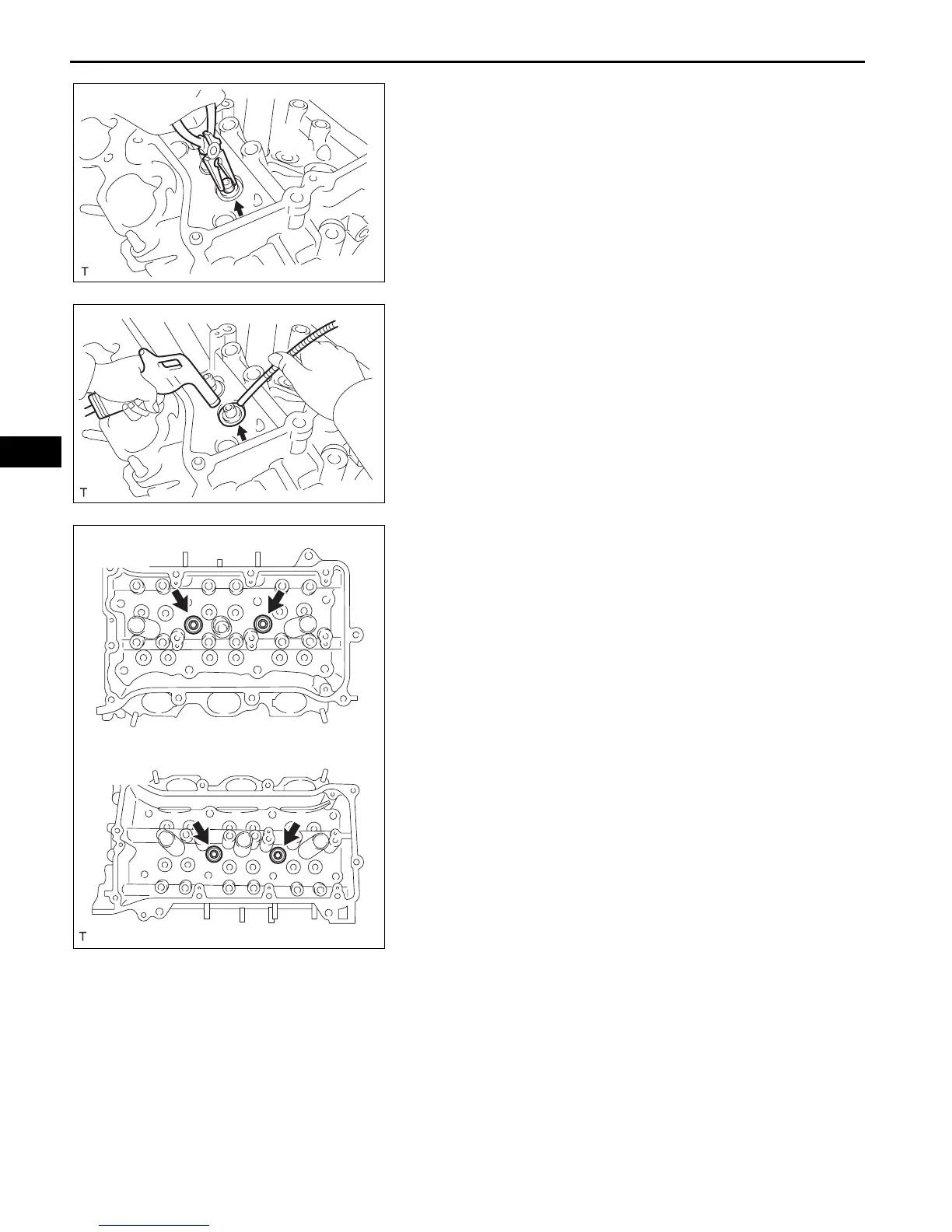

55. REMOVE VALVE STEM OIL SEAL
(a) Using needle-nose pliers, remove the oil seals.
56. REMOVE VALVE SPRING SEAT
(a) Using compressed air and a magnetic finger,
remove the valve spring seats by blowing air onto
them.
57. REMOVE NO. 1 STRAIGHT SCREW PLUG
(a) Using a 10 mm hexagon wrench, remove the 4
screw plugs and 4 gaskets.
NOTICE:
If water leaks from the straight screw plug or the
plug corrodes, replace it.
A120701E01
A120702E01
RH Bank:
LH Bank:
A129718E01

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
