EM–72
2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM

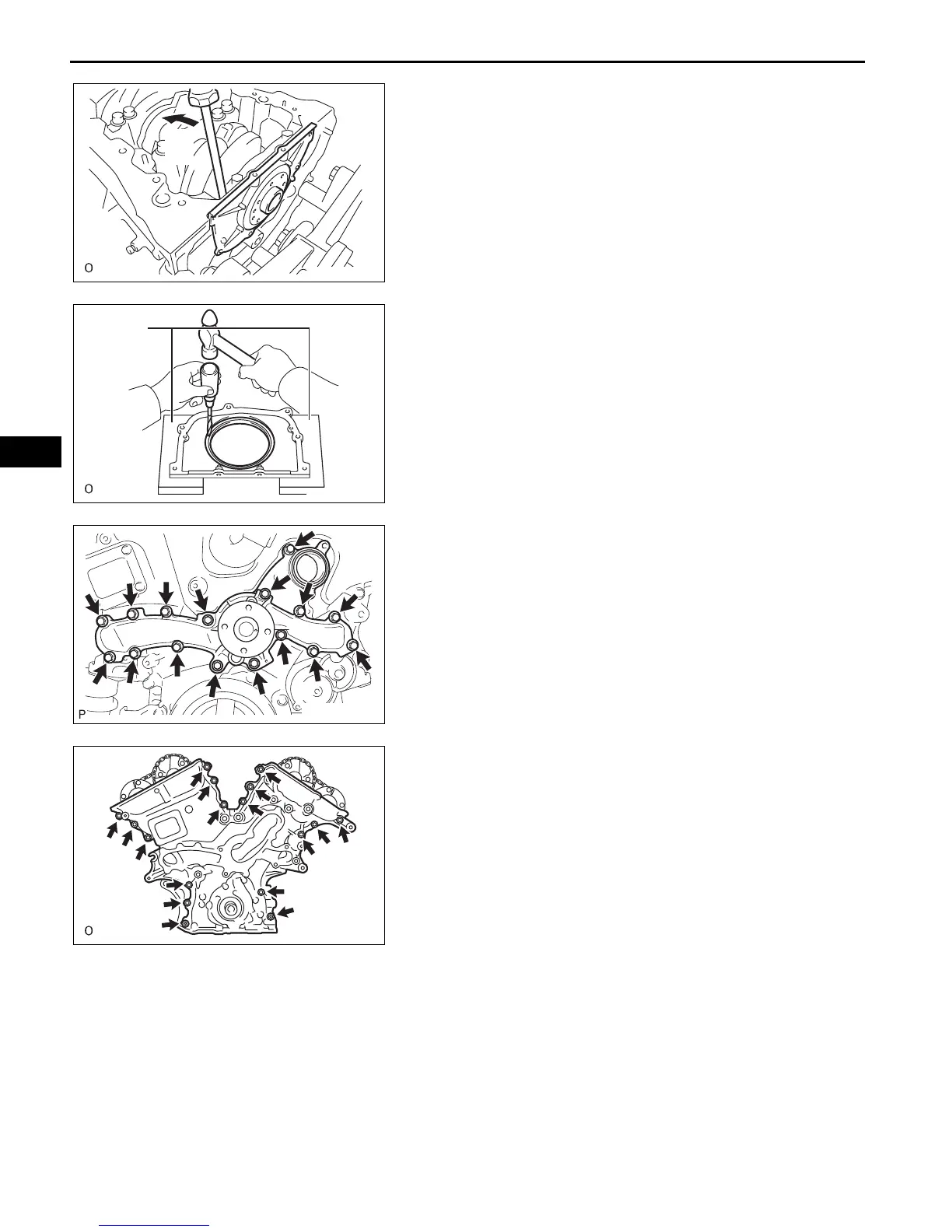

(b) Using a screwdriver, pry out the oil seal retainer.
NOTICE:
Be careful not to damage the engine rear oil seal
retainer.
HINT:
Tape the screwdriver tip before use.
23. REMOVE ENGINE REAR OIL SEAL
(a) Place the oil seal retainer on wooden blocks.
NOTICE:
Be careful not to damage the engine rear oil seal
retainer.
(b) Using a screwdriver and a hammer, tap out the oil
seal.
HINT:
Tape the screwdriver tip before use.
24. REMOVE WATER PUMP ASSEMBLY
(a) Remove the 16 bolts, water pump and gasket.
25. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY
(a) Remove the 15 bolts and 2 nuts as shown in the
illustration.
Pry
A129687E01
Wooden
Block
A131834E02
A129688
Nut
Nut
A129689E01

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
