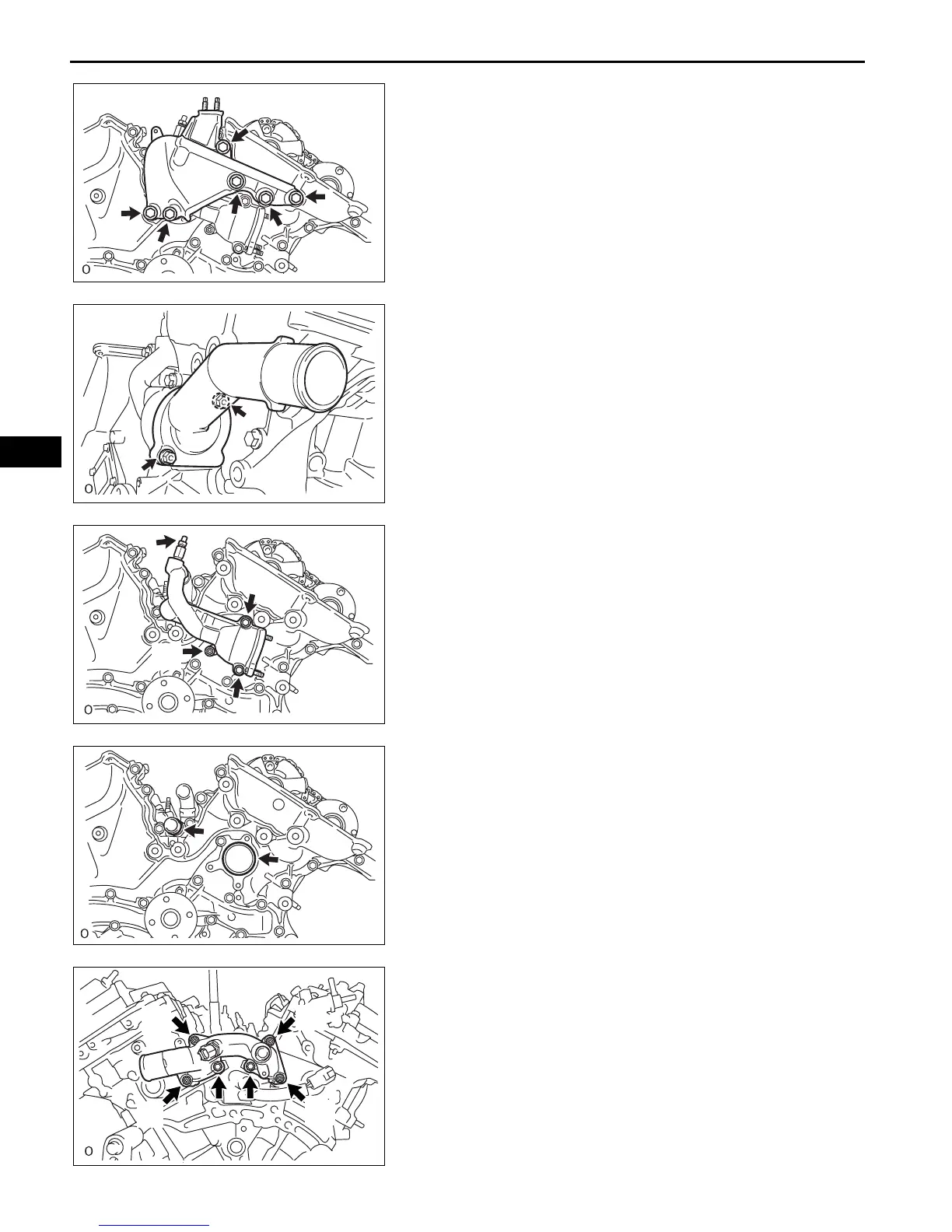

13. REMOVE FRONT ENGINE MOUNTING BRACKET NO.
1 LH
(a) Remove the 6 bolts and engine mounting bracket.
(b) Using "Torx" socket wrench E8, remove the 2 stud
bolts.
14. REMOVE WATER INLET HOUSING
(a) Remove the 2 nuts, water inlet and thermostat.
(b) Remove the gasket.
(c) Remove the housing plug.
(d) Remove the housing drain cock.
(e) Remove the 2 stud bolts.
(f) Separate the water by-pass hose No. 1.
(g) Remove the 2 bolts, nut, and water inlet housing.
(h) Remove the 2 O-rings.
15. REMOVE WATER OUTLET
(a) Remove the 2 bolts, 4 nuts and water outlet.
