EM–50
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM

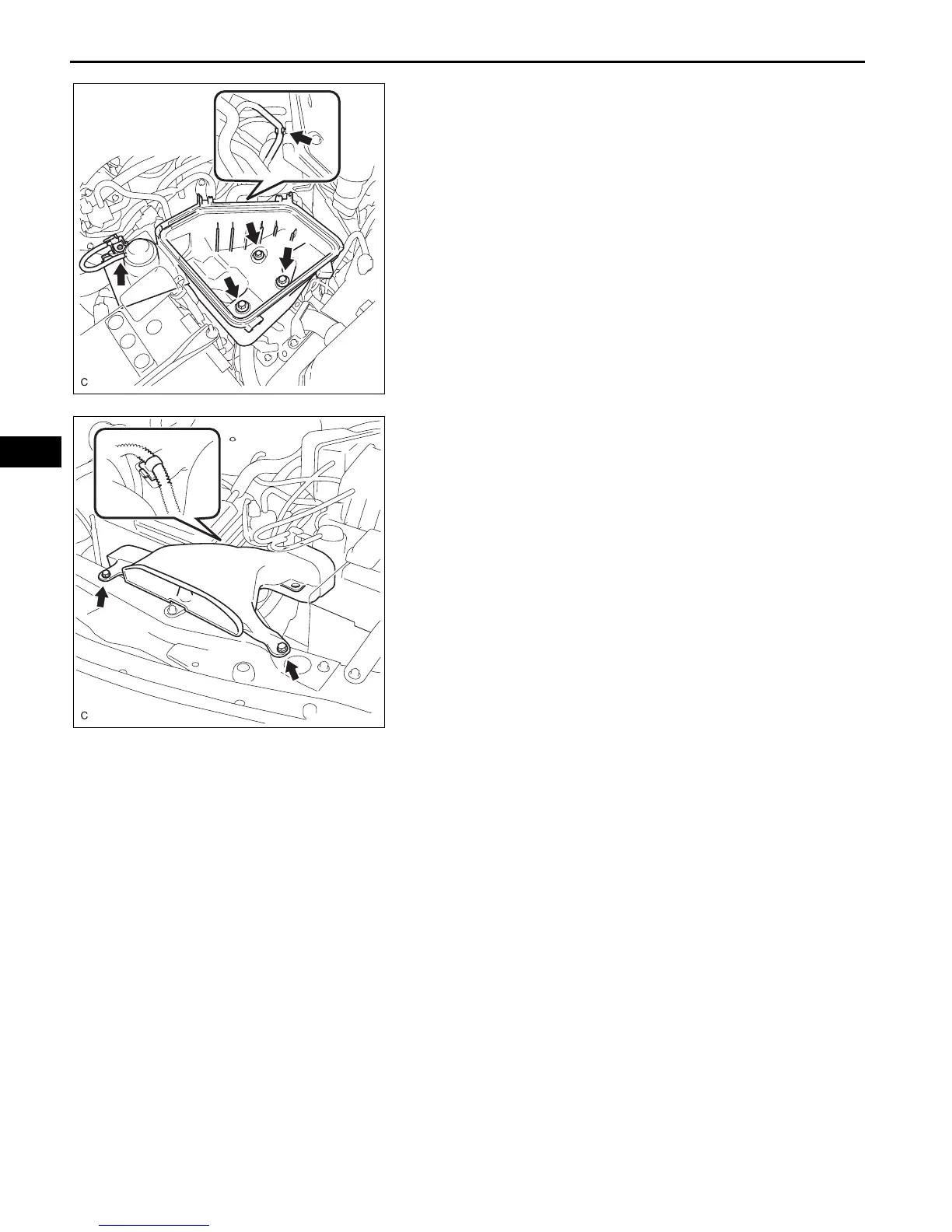

71. INSTALL AIR CLEANER CASE SUB-ASSEMBLY
(a) Install the air cleaner case with the 3 bolts.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
(b) Connect the vacuum hose and hose clamp.
72. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (See
page ES-506)
73. INSTALL AIR CLEANER INLET ASSEMBLY
(a) Install the air cleaner inlet with the clamp and 2
bolts.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
A132971
A132969

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
