Toyota 2GR-FE - Remove Cylinder Head Cover Sub-Assembly

2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM–69
EM

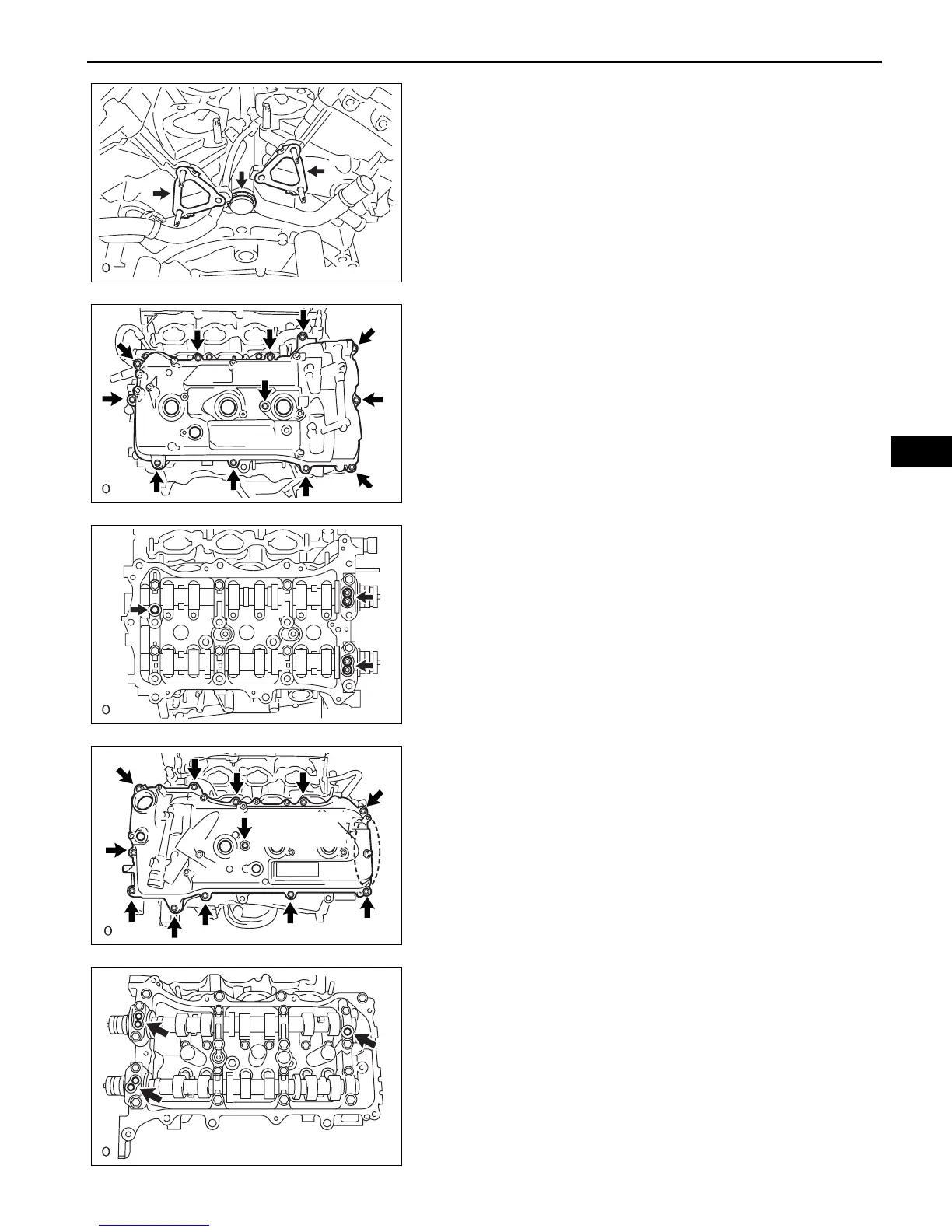

(b) Remove the 2 gaskets and O-ring.
16. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
(for Bank 1)
(a) Remove the 12 bolts, seal washer, head cover and
gasket.
(b) Remove the 3 gaskets.
17. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
(for Bank 2)
(a) Remove the 12 bolts, seal washer, head cover and
gasket.
NOTICE:
The baffle plate is located on the back of the
portion shown in the illustration. Do not damage
the baffle plate when removing the head cover.
(b) Remove the 3 gaskets.
A129677
A129679
A129699
Baffle Plate
A129678E02
A129705
