FU–10
2GR-FE FUEL – FUEL INJECTOR
FU
ENGINE2GR-FE FUEL
FUEL INJECTOR

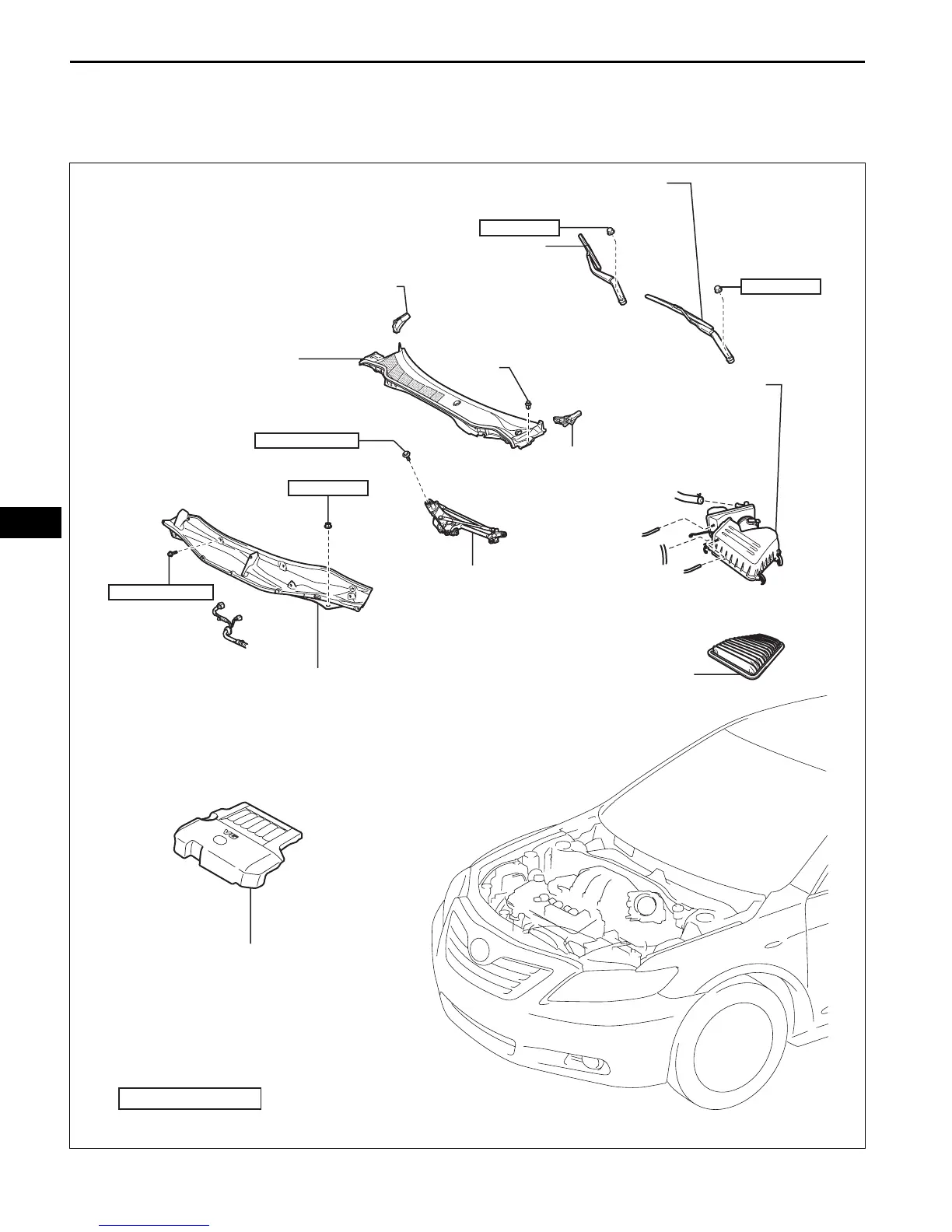

COMPONENTS
V-BANK COVER SUB-ASSEMBLY
AIR CLEANER FILTER ELEMENT
7.0 (71, 62 in.*lbf)
20 (204, 15)
N*m (kgf*cm, ft.*lbf)
: Specified torque
20 (204, 15)
5.0 (51, 44 in.*lbf)
80 (816, 59)
AIR CLEANER CAP
SUB-ASSEMBLY
FRONT FENDER TO
COWL SIDE SEAL LH
FRONT FENDER TO COWL SIDE SEAL RH
FRONT WIPER ARM AND BLADE ASSEMBLY LH
FRONT WIPER ARM AND BLADE ASSEMBLY RH
COWL TOP PANEL
OUTER SUB-ASSEMBLY
x4
CLIP
x2
WINDSHIELD WIPER MOTOR
AND LINK ASSEMBLY
COWL TOP VENTILATOR
LOUVER SUB-ASSEMBLY
A137328E01

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
