2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM–73
EM

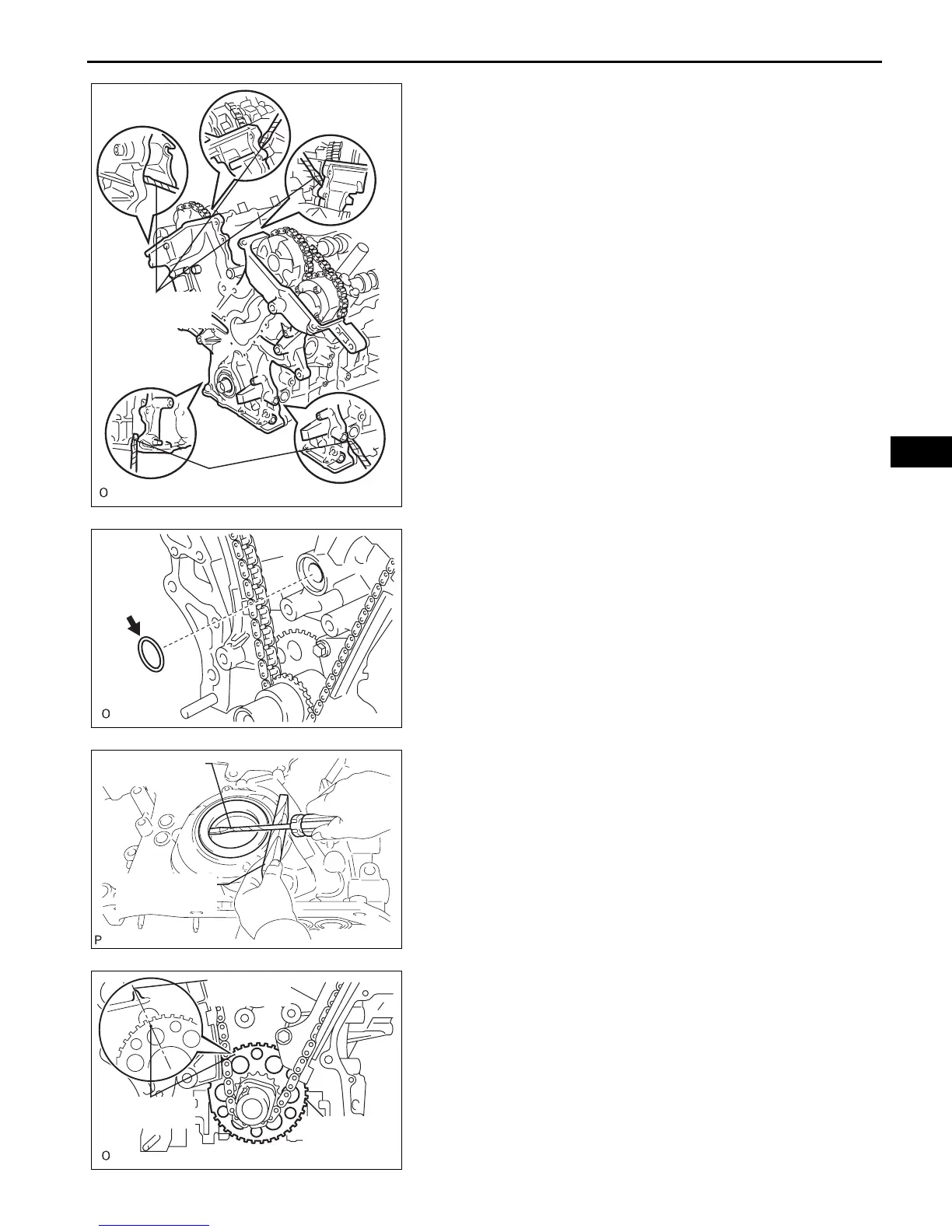

(b) Remove the timing chain cover by prying between
the timing chain cover and cylinder head or cylinder
block with a screwdriver.
NOTICE:
Be careful not to damage the contact surfaces of
the cylinder head, cylinder block and chain
cover.
HINT:
Tape the screwdriver tip before use.
(c) Remove the 4 bolts, chain cover plate and gasket.
(d) Remove the gasket.
26. REMOVE TIMING CHAIN CASE OIL SEAL
(a) Using a screwdriver, pry out the oil seal.
HINT:
Tape the screwdriver tip before use.
27. SET NO. 1 CYLINDER TO TDC / COMPRESSION
(a) Temporarily tighten the pulley set bolt.
(b) Set the timing mark on the crank angle sensor plate
to the RH block bore center line (TDC /
compression).
Protective Tape
Protective Tape
A129690E02
A128006E01
Protective Tape
Wooden Block
A108818E01
Timing Marks
Center Line
Sensor Plate
A129691E01
