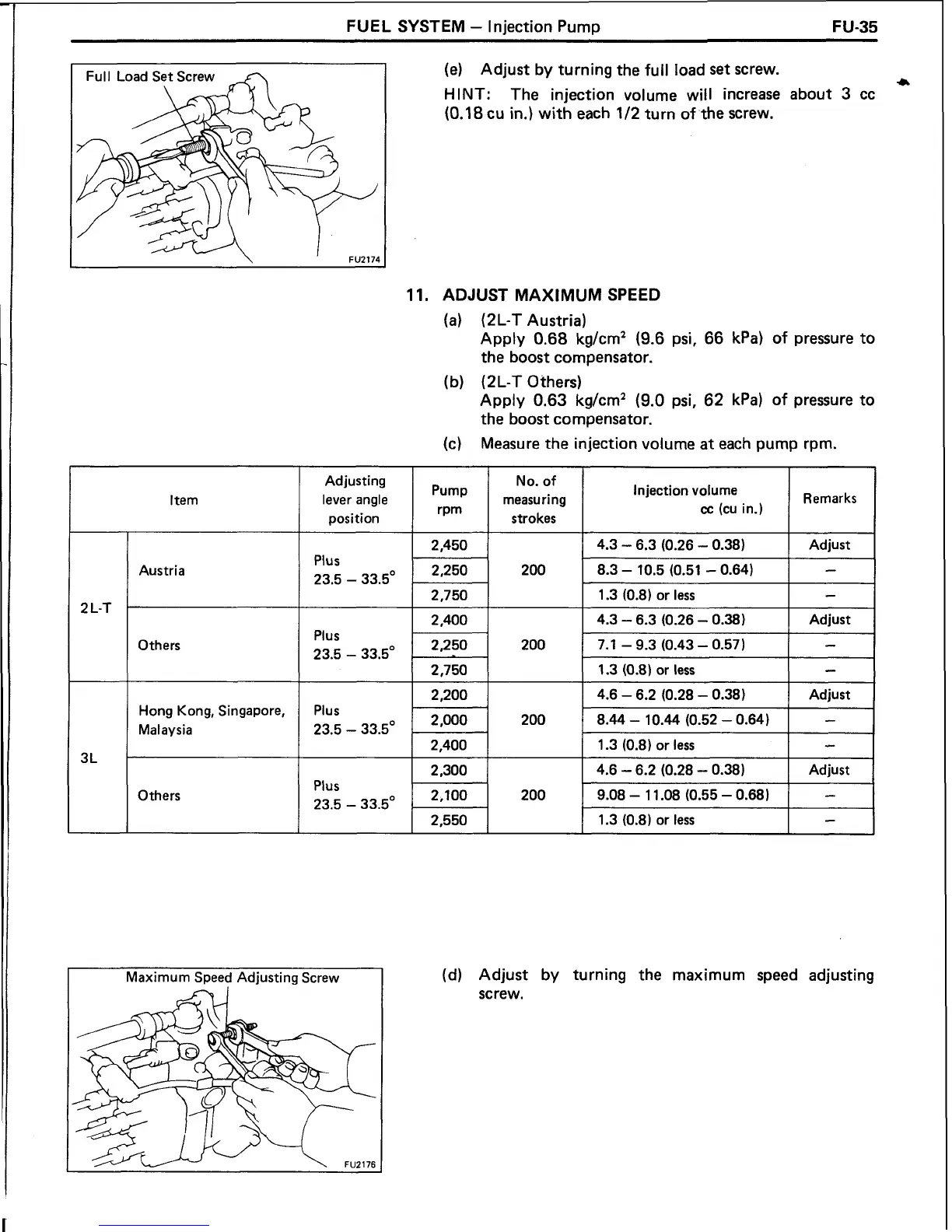

FUEL SYSTEM - Injection Pump FU-35
2 L-T
Austria
Others
Hong Kong, Singapore,
Malaysia
Others
(e)
Adjust by turning the full load set screw.
HINT: The injection volume will increase about
3 cc
(0.18 cu in.) with each
112 turn of the screw.
11. ADJUST MAXIMUM SPEED
(a) (2L-T Austria)
Apply 0.68 kg/cm2 (9.6 psi, 66 kPa) of pressure to
the boost compensator.
(b) (2L-T Others)
Apply 0.63 kg/cm2 (9.0 psi, 62 kPa) of pressure to
the boost compensator.
(c)
Measure the injection volume at each pump rpm.
Adjusting No. of
Pump
measuring
lnjection volume
lever angle Remarks
rpm
cc (cu in.)
position strokes
4.3 - 6.3 (0.26 - 0.38)
Plus
8.3 - 10.5 (0.51 - 0.64)
23.5
- 33.5'
2,750 1.3 (0.8)
or less
Plus
1
7.1 - 9.3 (0.43 - 0.57
-
23.5 - 33.5O
-- -
2,750 1.3 (0.8) or less -
2,200 4.6 - 6.2 (0.28 - 0.38) Adjust
Plus
2,000 200
8.44
- 10.44 (0.52 - 0.64)
-
23.5 - 33.5'
2,400 1.3 (0.8)
or less -
2,300
4.6
- 6.2 (0.28 - 0.38)
Adjust
Plus
2,100 200
9.08
- 11.08 (0.55 - 0.68)
-
23.5 - 33.5"
2,550 1.3 (0.8)
or less -
Maximum Speed Adjusting Screw
(d) Adjust by turning the maximum speed adjusting
screw.
