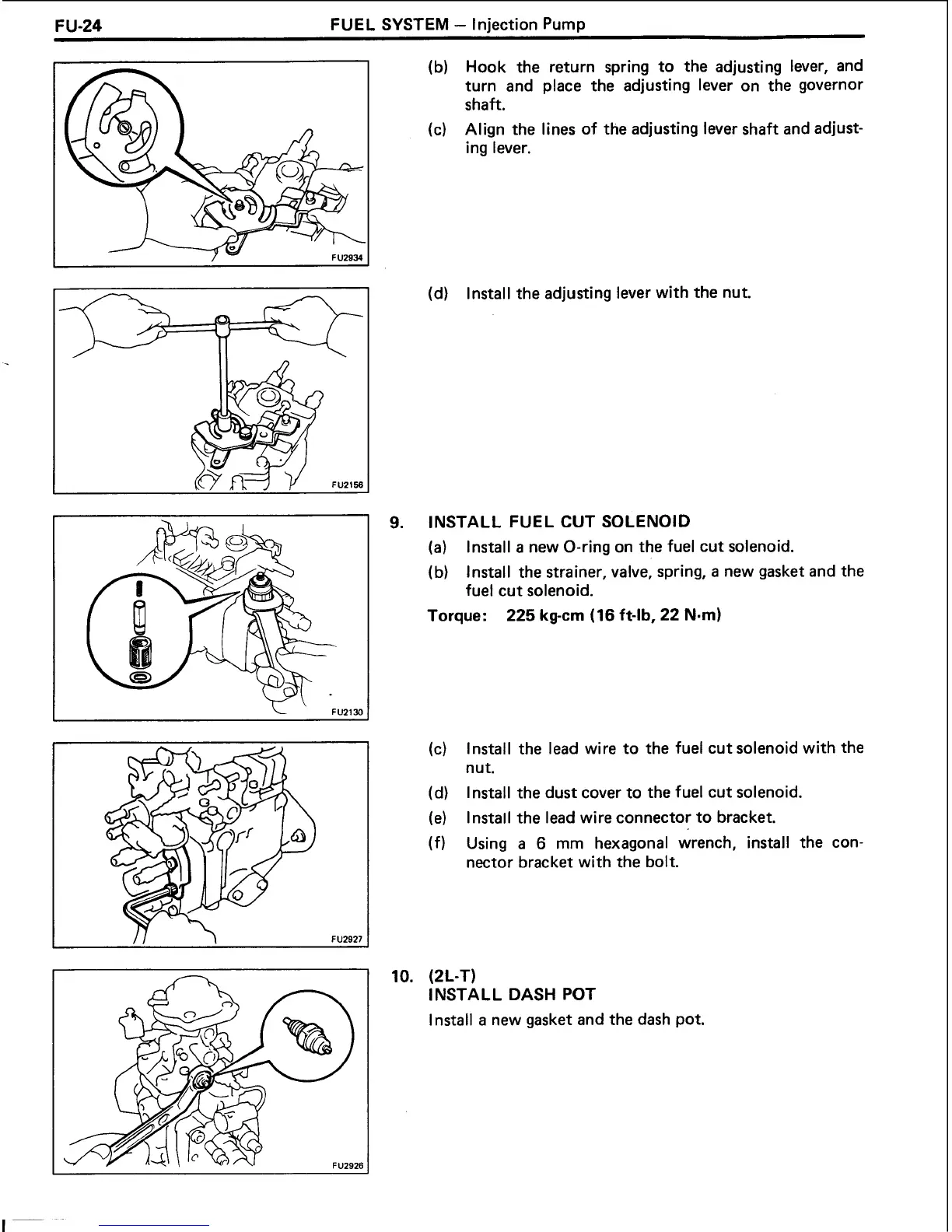

Toyota 3L - Install Dash Pot; Install Fuel Cut Solenoid

FU-24
FUEL SYSTEM
- Injection Pump
(b)
Hook the return spring to the adjusting lever, and
turn and
place the adjusting lever on the governor
shaft.
(c)
Align the lines of the adjusting lever shaft and adjust-
ing lever.
(dl
lnstall the adjusting lever with the nut.
9. INSTALL FUEL CUT SOLENOID
(a)
lnstall a new O-ring on the fuel cut solenoid.
(b)
lnstall the strainer, valve, spring,
a new gasket and the
fuel cut solenoid.
Torque:
225 kg-cm
(16 ft-lb, 22 N.m)
(c)
lnstall the lead wire to the fuel cut solenoid with the
nut.
(d)
l nstall the dust cover to the fuel cut solenoid.
(e)
l nstall the lead wire connector to bracket.
(f) Using
a 6 rnm hexagonal wrench, install the con-
nector bracket with the bolt.
lo. (2L-T)
INSTALL DASH POT
lnstall a new gasket and the dash pot.
