Toyota 3L User Manual

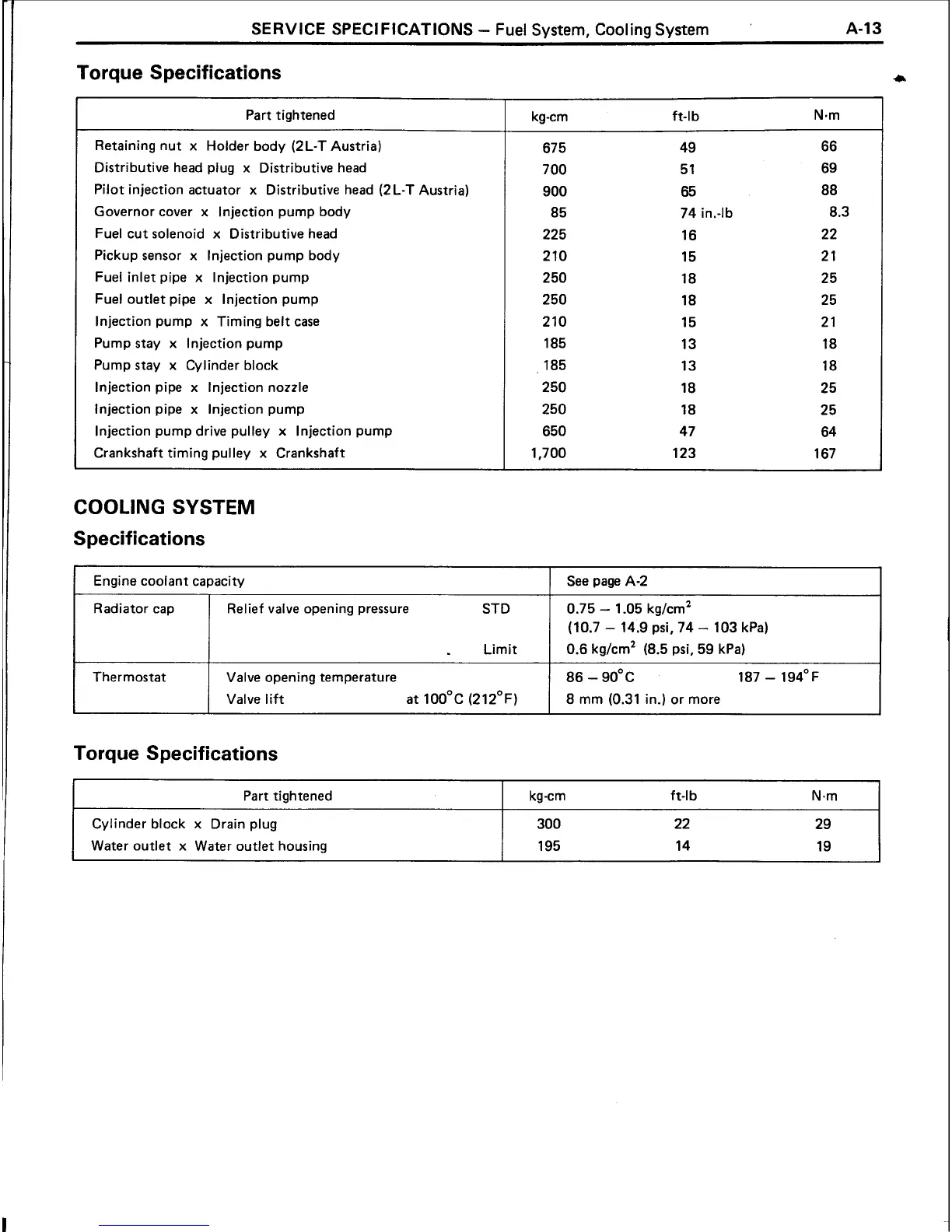

SERVICE SPEC1 FlCATlONS - Fuel System, Cooling System
A-1 3
Torque Specifications
Part tightened
Retaining nut
x Holder body (2L-T Austria)
Distributive head plug
x Distributive head
Pilot injection actuator
x Distributive head (2L-T Austria)
Governor cover
x lnjection pump body
Fuel cut solenoid
x Distributive head
Pickup sensor
x lnjection pump body
Fuel inlet pipe
x lnjection pump
Fuel outlet pipe
x lnjection pump
lnjection pump
x Timing belt case
Pump stay
x lnjection pump
Pump stay
x Cylinder block
lnjection pipe
x lnjection nozzle
lnjection pipe
x lnjection pump
lnjection pump drive pulley
x lnjection pump
Crankshaft timing pulley
x Crankshaft
COOLING SYSTEM
Specifications
kg-cm ft-lb Nm
Torque Specifications
See page A-2
0.75 - 1.05 kg/cm2
(10.7
- 14.9 psi, 74 - 103 kPa)
0.6 kg/cm2 (8.5 psi, 59 kPa)
86 - 90°c 187 - 194"~
8 mm (0.31 in.) or more
Engine coolant capacity
Radiator cap
Thermostat
Part tightened
Cylinder block
x Drain plug
Water outlet
x Water outlet housing
Relief valve opening pressure STD
. Limit
Valve opening temperature
Valve lift at
100"~ (212"~)
kg-cm ft-lb N.m
300 22 29
195 14 19

Toyota 3L Specifications

General

Displacement	2.8 L (2, 779 cc)
Compression Ratio	22.2:1
Fuel Type	Diesel
Valvetrain	SOHC, 8 valves
Fuel System	Indirect injection
Power Output	91 hp (68 kW) at 4, 000 rpm
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Bore x Stroke	96 mm x 96 mm (3.78 in x 3.78 in)
Cylinder Arrangement	Inline-4
