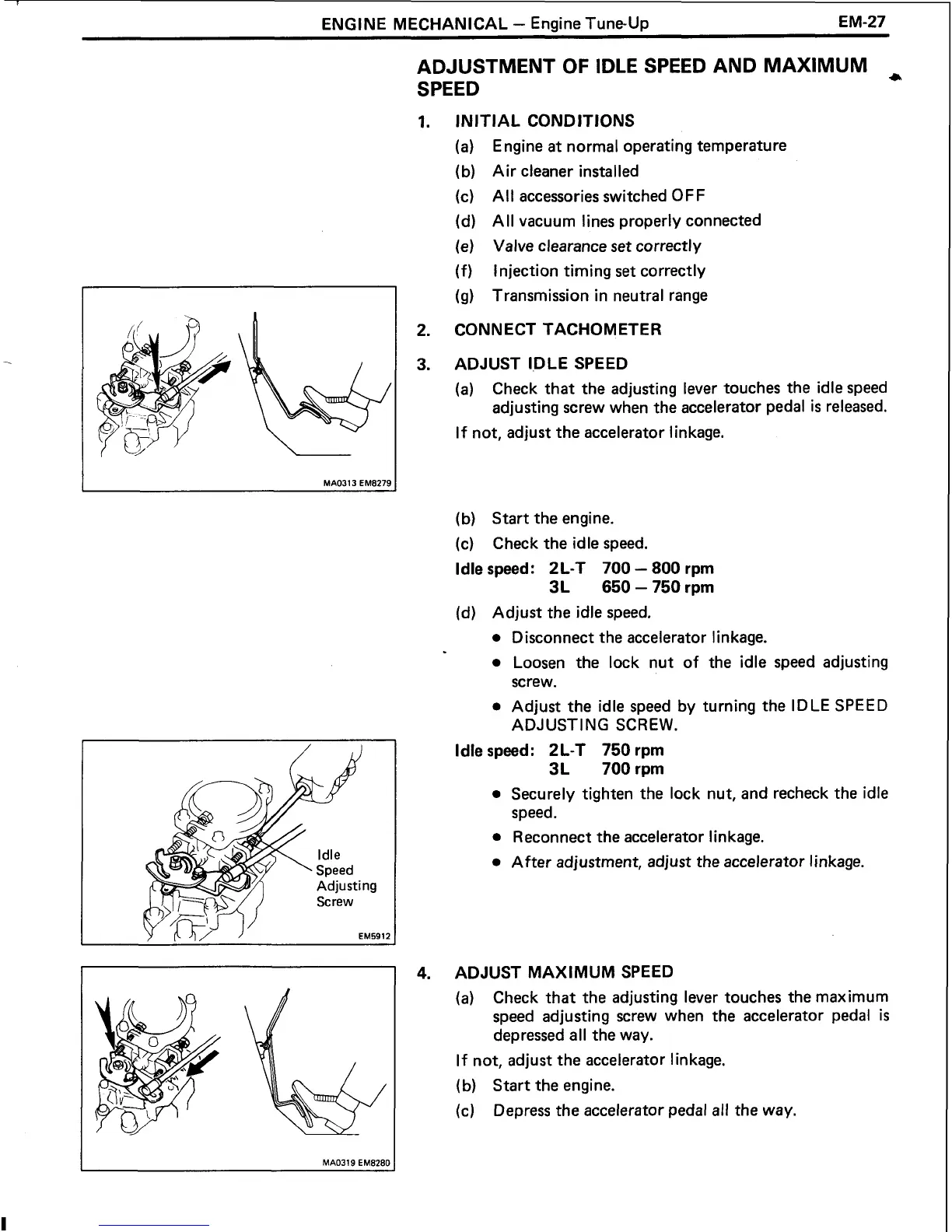

ENGl NE MECHANICAL - Engine TuneU~
EM-27
ADJUSTMENT OF IDLE SPEED AND MAXIMUM
*
SPEED
1. INITIAL CONDITIONS
(a)
Engine at normal operating temperature
(b) Air cleaner installed
(c) All accessories switched OFF
(d) All vacuum lines properly connected
(e) Valve clearance set correctly
(f) Injection timing
set correctly
(g) Transmission in neutral range
2. CONNECT TACHOMETER
3. ADJUST IDLE SPEED
(a)
Check that the adjusting lever touches the idle speed
adjusting screw when the accelerator pedal
is released.
f not, adjust the accelerator linkage.
b) Start the engine.
(c) Check the idle speed.
Idle speed: 2L-T 700
- 800 rpm
3L 650 - 750 rpm
(d) Adjust the idle speed.
Disconnect the accelerator linkage.
Loosen the lock nut of the idle speed adjusting
screw.
Adjust the idle speed by turning the IDLE SPEED
ADJUSTING SCREW.
Idle speed
: 2 L-T 750 rpm
3L 700 rpm
Securely tighten the lock nut, and recheck the idle
speed.
Reconnect the accelerator linkage.
After adjustment, adjust the accelerator linkage.
4. ADJUST MAXIMUM SPEED
(a)
Check that the adjusting lever touches the maximum
speed adjusting screw when the accelerator pedal
is
depressed all the way.
If not, adjust the accelerator linkage.
(b) Start the engine.
(c)
Depress the accelerator pedal all the way.

Toyota 3L Specifications

General

Displacement	2.8 L (2, 779 cc)
Compression Ratio	22.2:1
Fuel Type	Diesel
Valvetrain	SOHC, 8 valves
Fuel System	Indirect injection
Power Output	91 hp (68 kW) at 4, 000 rpm
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Bore x Stroke	96 mm x 96 mm (3.78 in x 3.78 in)
Cylinder Arrangement	Inline-4
