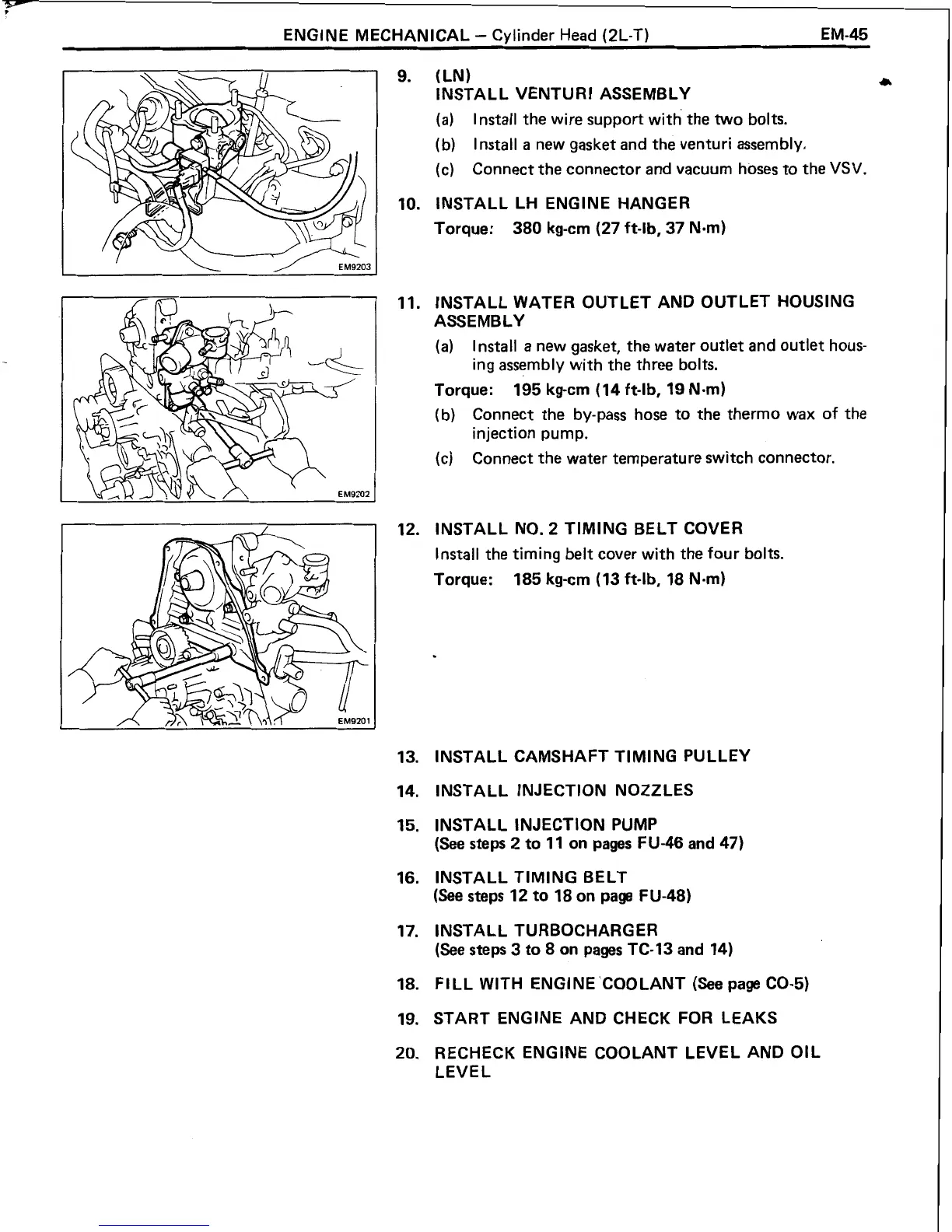

ENGINE MECHANICAL
-
Cylinder Head
(2L-T)
EM-45
9. (LN)
a
INSTALL VENTURI ASSEMBLY
(a)
Install the wire support with the two bolts.
(b)
l
nstall
a
new gasket and the venturi assembly.
(c)
Connect the connector and vacuum hoses to the
VSV.
10. INSTALL LH ENGINE HANGER
Torque:
380 kg-cm (27 ft-lb, 37 Nnm)
INSTALL WATER OUTLET AND OUTLET HOUSING
ASSEMBLY
(a)
l
nstall
a
new gasket, the water outlet and outlet hous-
ing assembly with the three bolts.
Torque: 195kg-cm(14ft-lb,19N-m)
(b)
Connect the by-pass hose to the thermo wax of the
injection pump.
(c)
Connect the water temperature switch connector.
12. INSTALL NO. 2 TIMING BELT COVER
Install the timing belt cover with the four bolts.
Torque: 185 kg-cm (13 ft-lb, 18 N-m)
13. INSTALL CAMSHAFT TIMING PULLEY
14. INSTALL INJECTION NOZZLES
15. INSTALL INJECTION PUMP
(See steps
2
to
11
on
pages
FU-46
and
47)
16. INSTALL TIMING BELT
(See
steps
12
to
18
on
page
FU-48)
17. INSTALL TURBOCHARGER
(See
steps
3 to 8
on pages
TC-13
and
14)
18. FILL WITH ENGINE COOLANT (See
page
CO-5)
19. START ENGINE AND CHECK FOR LEAKS
20. RECHECK ENGINE COOLANT LEVEL AND OIL
LEVEL
