Toyota 3L User Manual

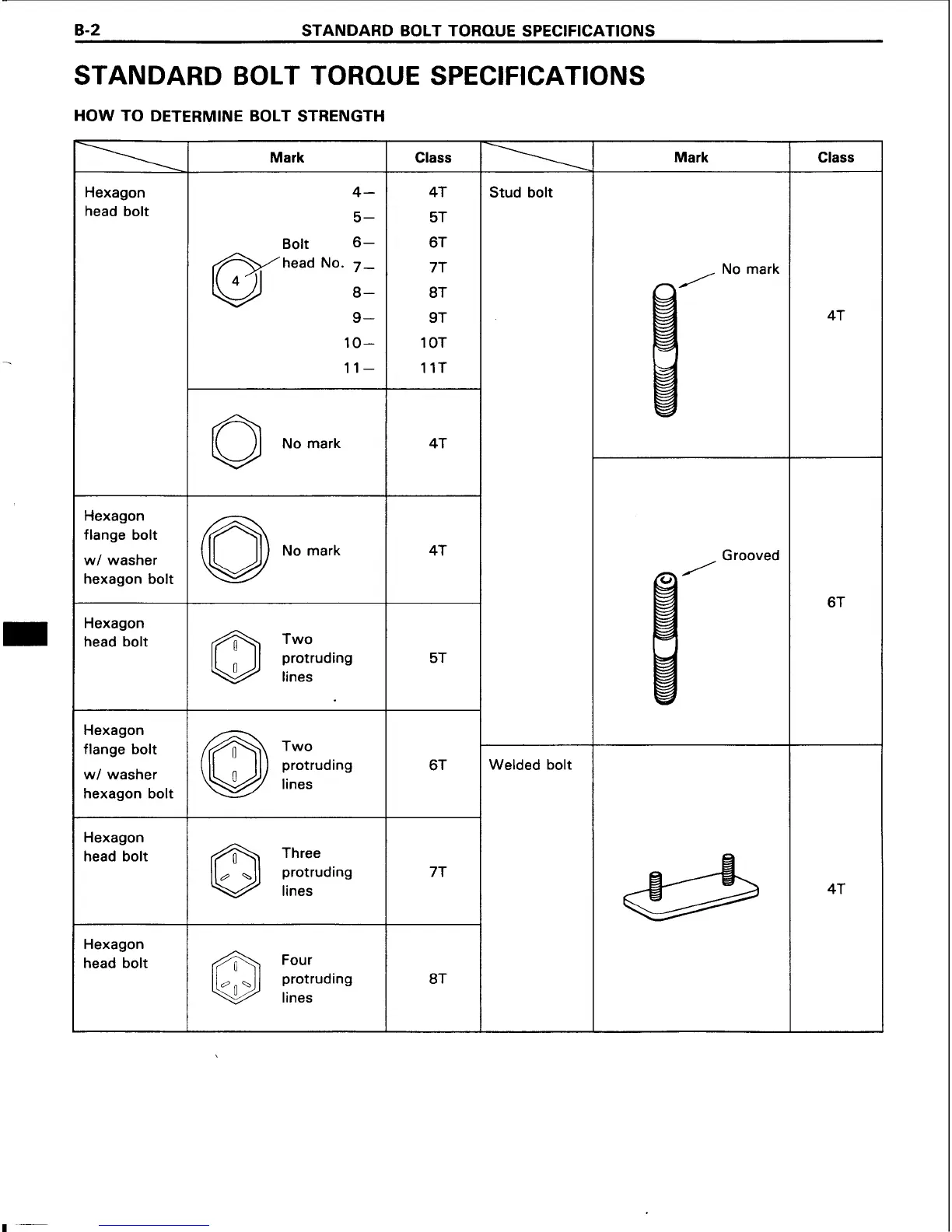

6-2 STANDARD BOLT TORQUE SPECIFICATIONS
STANDARD BOLT TORQUE SPECIFICATIONS
HOW TO DETERMINE BOLT STRENGTH
Hexagon
head bolt
Hexagon
flange bolt
W/ washer
hexagon bolt
Hexagon
head bolt
Hexagon
flange bolt
W/ washer
hexagon bolt
Hexagon
head bolt
Hexagon
head bolt
Mark I class
Bolt 6-
Stud bolt
0 iz:ruding lines
Welded bolt
6T
Mark Class

Toyota 3L Specifications

General

Displacement	2.8 L (2, 779 cc)
Compression Ratio	22.2:1
Fuel Type	Diesel
Valvetrain	SOHC, 8 valves
Fuel System	Indirect injection
Power Output	91 hp (68 kW) at 4, 000 rpm
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Bore x Stroke	96 mm x 96 mm (3.78 in x 3.78 in)
Cylinder Arrangement	Inline-4
