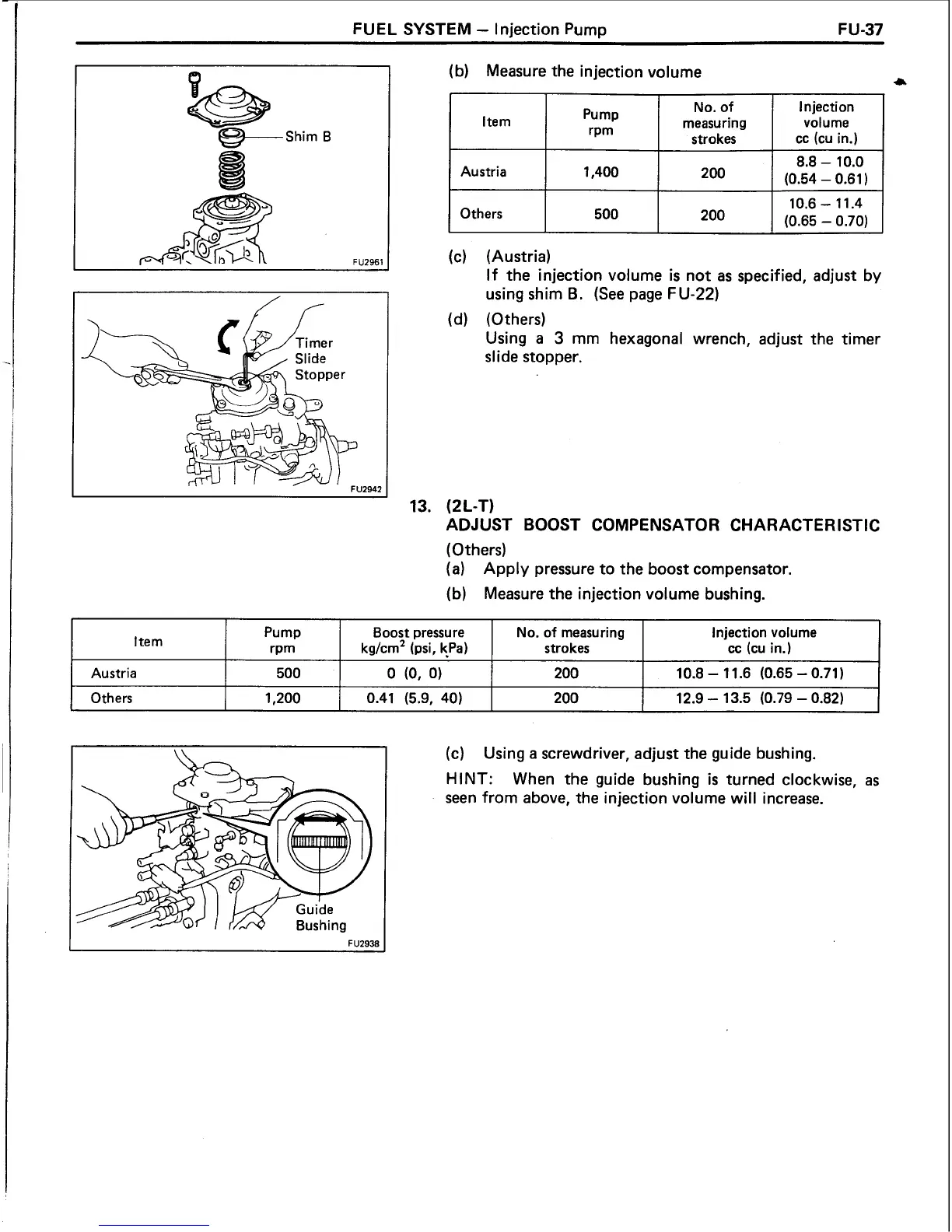

FUEL SYSTEM - Injection Pump
F U -37
(b) Measure the injection volume
*
No. of
measuring
strokes
1 500 1 200 1
10.6 - 11.4
1 Others
(0.65 - 0.70)
l njection
volume
cc
(CU in.)
(c) (Austria)
If the injection volume
is not as specified, adjust by
using shim
B. (See page F U-22)
(d) (Others)
Using
a 3 mm hexagonal wrench, adjust the timer
slide stopper.
Austria
(2 L-T)
ADJUST BOOST COMPENSATOR CHARACTERISTIC
(Others)
(a)
Apply pressure to the boost compensator.
(b)
Measure the injection volume bushing.
200
1,400
8.8
- 10.0
10.54 - 0.6 1
(c)
Using a screwdriver, adjust the guide bushing.
HINT:
When the guide bushing
is turned clockwise, as
seen from above, the injection volume will increase.
Item
Austria
Others
Pump
rPm
500
1,200
Boost pressure
kg/cm2 (psi, !Pa)
0 (0, 0)
0.41 (5.9, 40)
No. of measuring
strokes
200
200
lnjection volume
cc (cu in.)
10.8 - 1 1.6 (0.65 - 0.71 1
12.9 - 13.5 (0.79 - 0.82)
