LUBRICATION SYSTEM - Oil Cooler and Relief Valves (2L-T)
LU-7

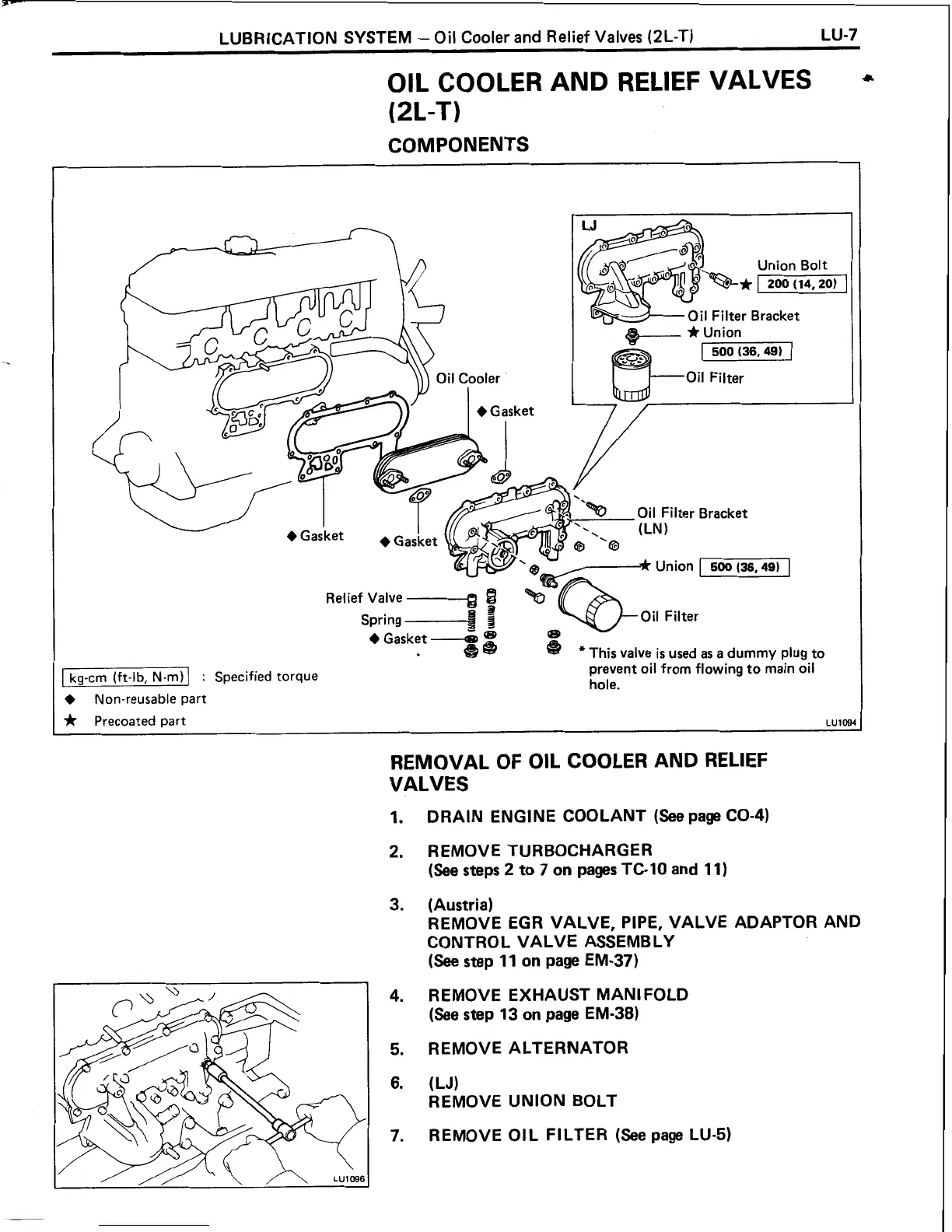

OIL COOLER AND RELIEF VALVES
*
COMPONENTS
Union Bolt
Q-* !3imzy
il Filter Bracket
I Filter Bracket
@
* This valve is used as a dummy plug to
I kg-cm (ft-lb, N.m) 1 : Specified torque
prevent oil from flowing to main oil
hole.
Non-reusable part
* Precoated part LU~W
REMOVAL OF OIL COOLER AND RELIEF
VALVES
DRAIN ENGINE COOLANT (See page CO-4)
REMOVE TURBOCHARGER
(See steps
2 to 7 on pages TC- 10 and 1 1)
CONTROL VALVE ASSEMBLY
(See step 11 on page EM-37)
REMOVE EXHAUST MANIFOLD
(See step 13 on page EM-38)
REMOVE ALTERNATOR
(LJ)
REMOVE UNION BOLT
REMOVE OIL FILTER (See page
(Austria)
REMOVE EGR VALVE, PIPE, VALVE ADAPTOR AND
J-5)
