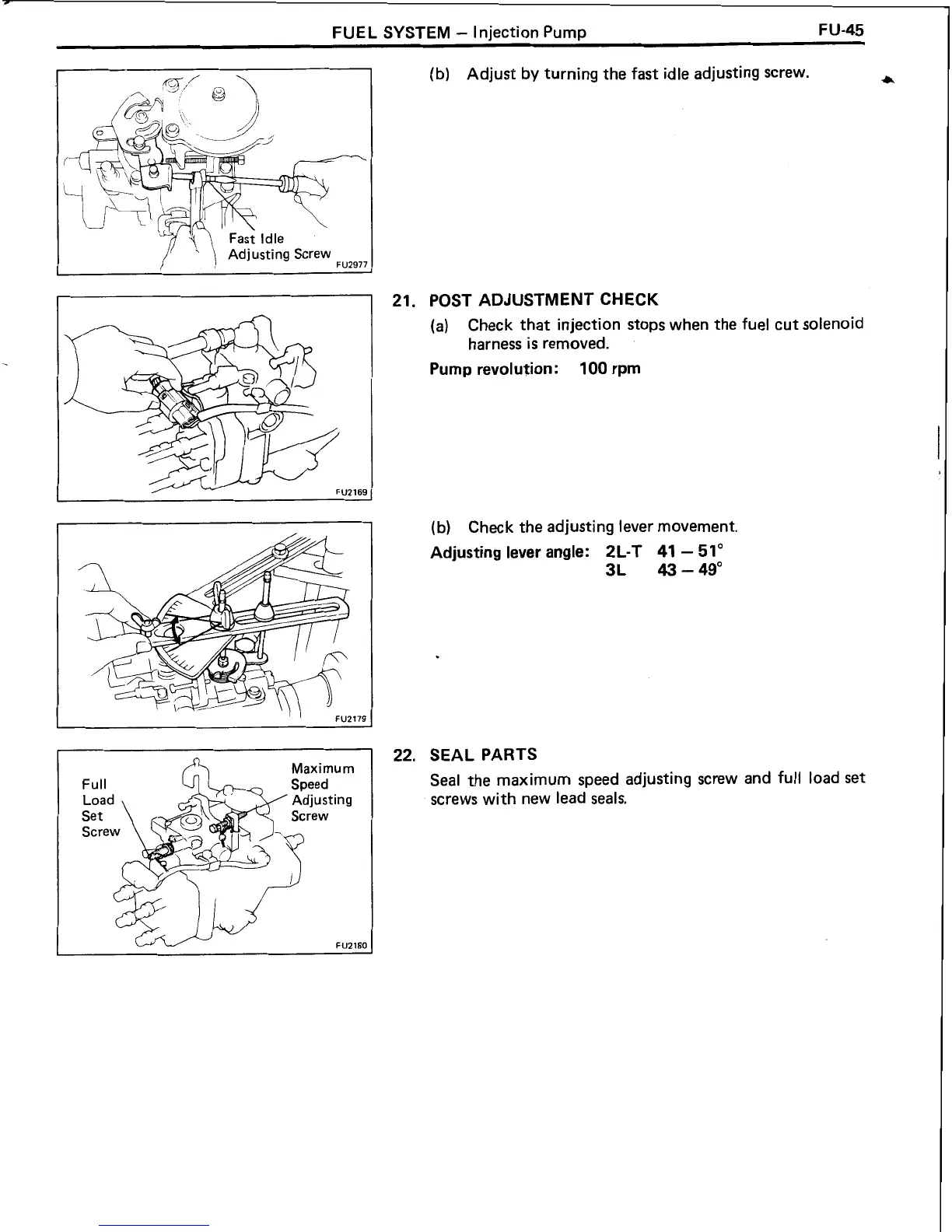

FUEL SYSTEM - Injection Pump
FU-45
(b) Adjust
by turning the fast idle adjusting screw. 4
, 21. POST ADJUSTMENT CHECK
(a)
Check that injection stops when the fuel cut solenoid
harness
is removed.
Pump revolution: 100 rpm
(b)
Check the adjusting lever movement.
Adjusting lever angle: 2L-T 41 - 51"
3L 43 - 49"
22. SEAL PARTS
Seal the maximum speed adjusting screw and full load set
screws with new lead
seals.

Toyota 3L Specifications

General

Displacement	2.8 L (2, 779 cc)
Compression Ratio	22.2:1
Fuel Type	Diesel
Valvetrain	SOHC, 8 valves
Fuel System	Indirect injection
Power Output	91 hp (68 kW) at 4, 000 rpm
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Bore x Stroke	96 mm x 96 mm (3.78 in x 3.78 in)
Cylinder Arrangement	Inline-4
