A-6

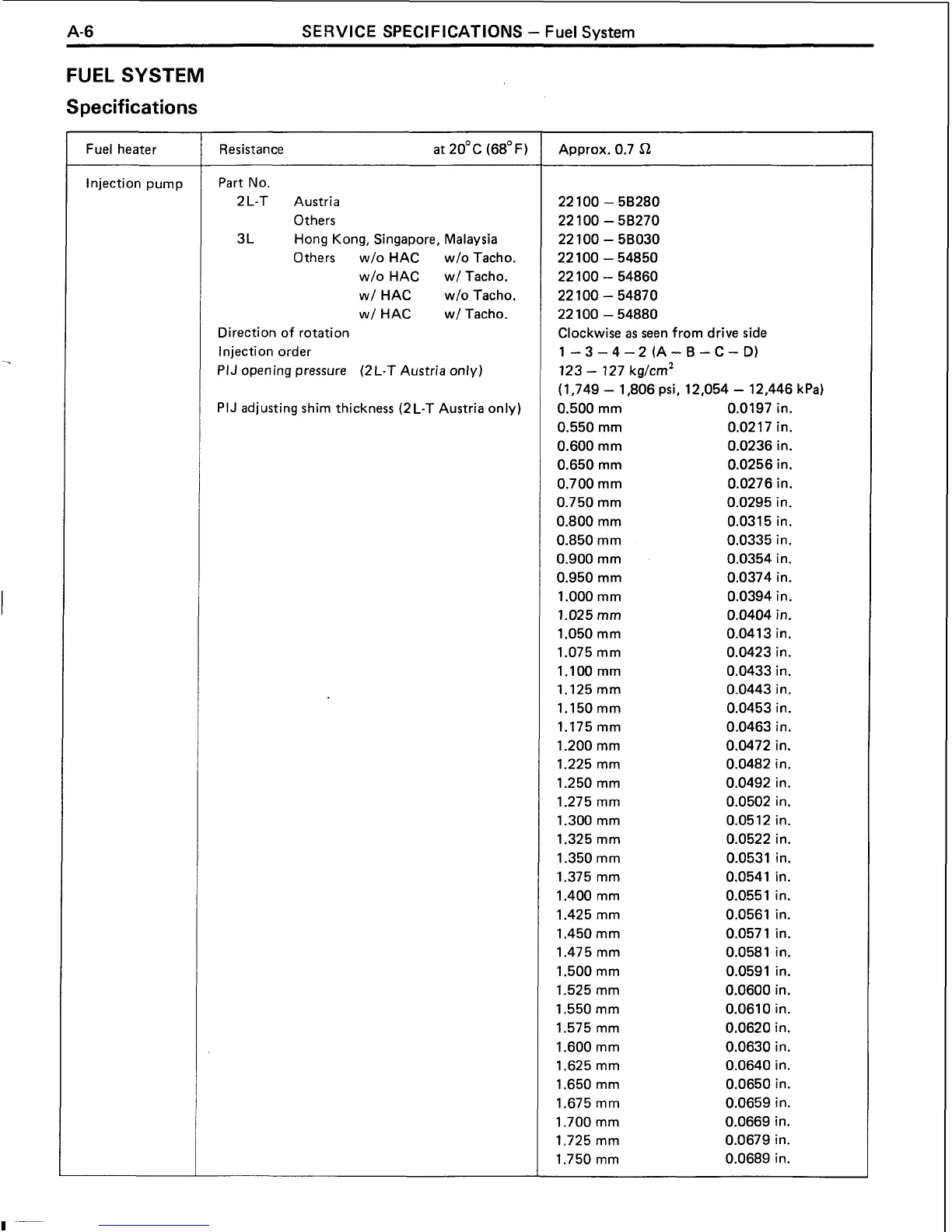

SERVICE SPECIFICATIONS - Fuel Svstem
FUEL SYSTEM
Specifications
Fuel heater
Injection pump
Resistance
at 20"~ (68"~)
Part No.
2L-T Austria
Others
3L Hong Kong, Singapore, Malaysia
Others w/o HAC wlo Tacho.
W/O HAC wl Tacho.
wl HAC w/o Tacho.
wl
H AC w/ Tacho.
Direction of rotation
lnjection order
PIJ opening pressure (2L-T Austria only)
PIJ adjusting shim thickness (2L-T Austria only)
Approx. 0.7
Ct
22 100 - 58280
22 100
- 5B270
22 100
- 5B030
22 100
- 54850
22 100
- 54860
22 100
- 54870
22 100
- 54880
Clockwise as seen from drive side
1
-3-4-2(A-B-C-D)
123
- 127 kg/cm2
(1,749
- 1,806 psi, 12,054 - 12,446 kPa)
0.500 mm 0.0197 in.
0.550 mm 0.0217 in.
0.600 mm 0.0236 in.
0.650 mm 0.0256 in.
0.700 mm 0.0276 in.
0.750 mm 0.0295 in.
0.800 mm 0.0315 in.
0.850 mm 0.0335 in.
0.900 mm 0.0354 in.
0.950 mm 0.0374 in.
1.000 mm 0.0394 in.
1.025 mm 0.0404 in.
1
.050 mm 0.0413 in.
1 .075 mm 0.0423 in.
1 .I00 mm 0.0433 in.
1.125 mm 0.0443 in.
1.150 mm 0.0453 in.
1.175 mm 0.0463 in.
1.200 mm 0.0472 in.
1.225 mm 0.0482 in.
1.250 mm 0.0492 in.
1.275 mm 0.0502 in.
1.300 mm 0.0512 in.
1.325 mm 0.0522 in.
1.350 mm 0.0531 in.
1.375 mm 0.0541 in.
1.400 mm 0.0551 in.
1.425 mm 0.0561 in.
0.0571 in.
0.0581 in.
0.0591 in.
0.0600 in.
0.061 0 in.
0.0620 in.
0.0630 in.
0.0640 in.
0.0650 in.
0.0659 in.
0.0669 in.
1.725 mm 0.0679 in.
1.750 mm 0.0689 in.

Toyota 3L Specifications

General

Displacement	2.8 L (2, 779 cc)
Compression Ratio	22.2:1
Fuel Type	Diesel
Valvetrain	SOHC, 8 valves
Fuel System	Indirect injection
Power Output	91 hp (68 kW) at 4, 000 rpm
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Bore x Stroke	96 mm x 96 mm (3.78 in x 3.78 in)
Cylinder Arrangement	Inline-4
