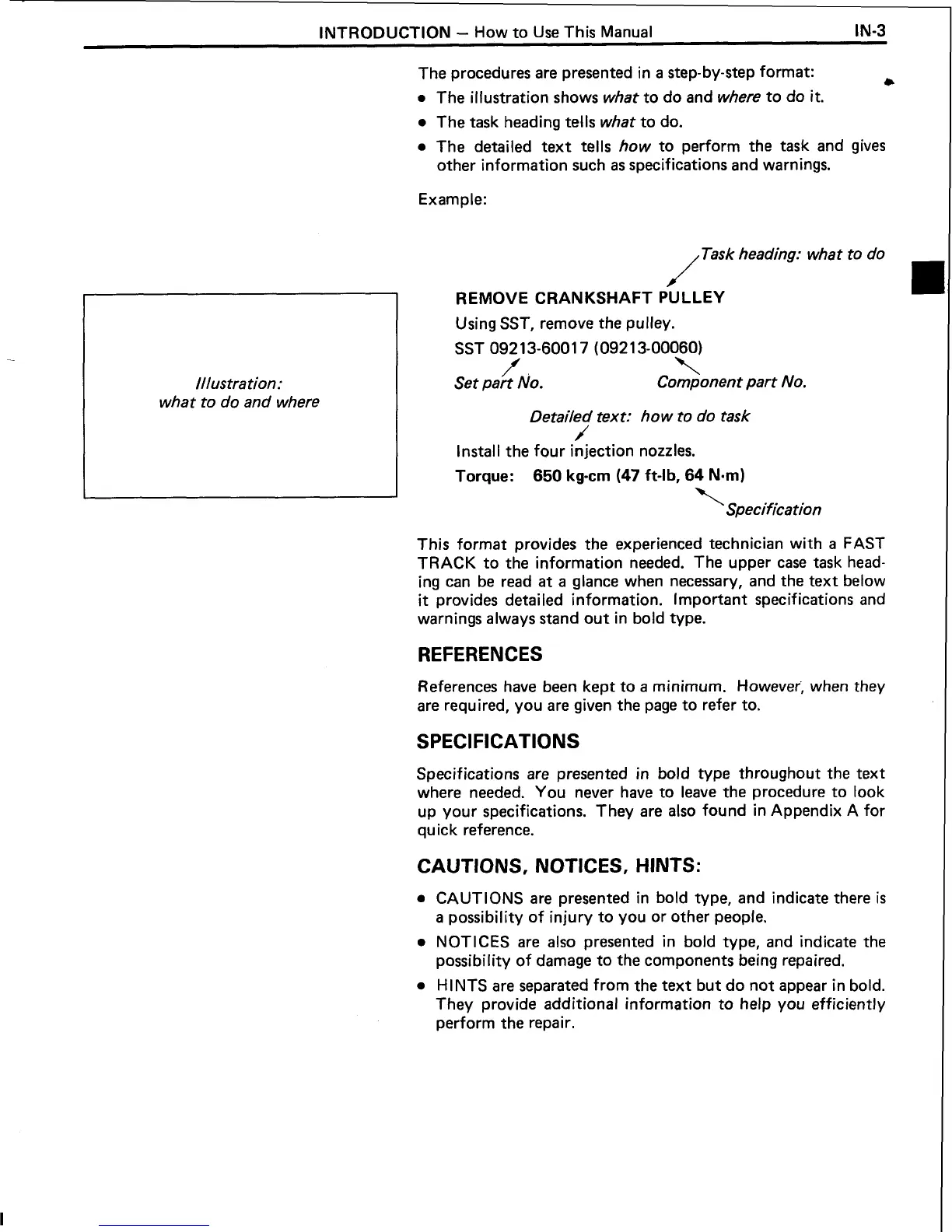

INTRODUCTION
-
How to Use This Manual
IN-3
The procedures are presented in
a
step-by-step format:
&
a
The illustration shows
what
to do and
where
to do
it.
a
The task heading tells
what
to do.
a
The detailed text tells
how
to perform the task and gives
other information such as specifications and warnings.
Example:
illustration:
what to do and where
Task heading: what to do
REMOVE
CRANKSHAFT
PULLEY
Using SST, remove the pulley.
SST
092 13-6001
7
(092 13-00060)
/'.
Set part No.
\
Component part No.
Detailed text: how to do task
/
Install the four injection nozzles.
Torque:
650
kg-cm
(47
ft-lb,
64
N-m)
\
Specification
This format provides the experienced technician with
a
FAST
TRACK to the information needed. The upper case task head-
ing can be read
at
a
glance when necessary, and the text below
it
provides detailed information. Important specifications and
warnings always stand out in bold type.
REFERENCES
References have been kept to
a
minimum. However; when they
are required, you are given the page to refer to.
SPECIFICATIONS
Specifications are presented in bold type throughout the text
where needed. You never have to leave the procedure to look
up your specifications. They are also found in Appendix A for
quick reference.
CAUTIONS, NOTICES, HINTS:
a
CAUTIONS are presented in bold type, and indicate there
is
a
possibility of injury to you or other people.
NOTICES are also presented in bold type, and indicate the
possibility of damage to the components being repaired.
HINTS are separated from the text but do not appear in bold.
They provide additional information to help you efficiently
perform the repair.
