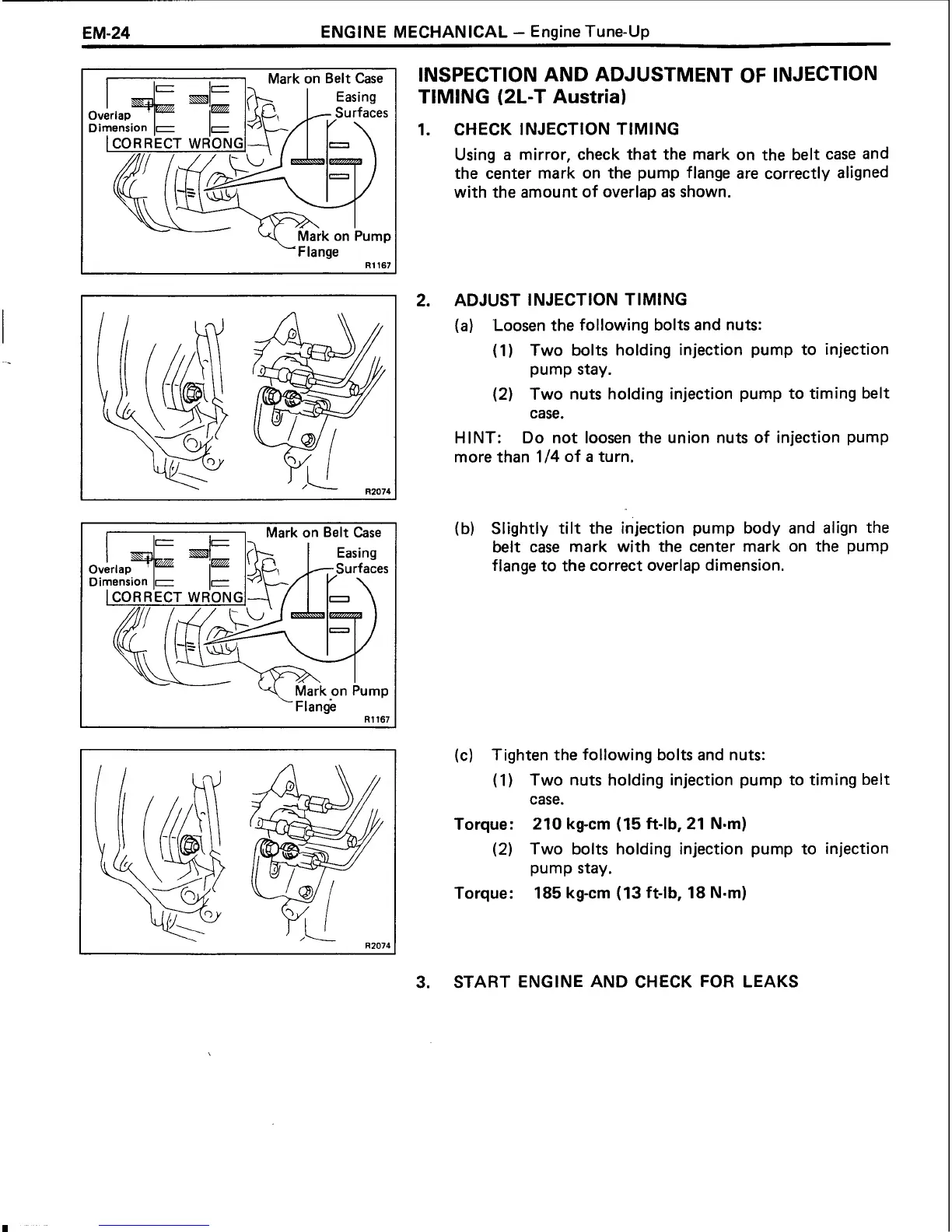

EM-24
ENGINE MECHANICAL
-
Encline Tune-up
Flange
R1167
INSPECTION AND ADJUSTMENT OF INJECTION
TIMING
(2L-T
Austria)
CHECK INJECTION TIMING
Using
a
mirror, check that the mark on the belt case and
the center mark on the pump flange are correctly aligned
with the amount of overlap
as
shown.
ADJUST INJECTION TIMING
(a)
Loosen the following bolts and nuts:
(1)
Two bolts holding injection pump to injection
pump stay.
(2)
Two nuts holding injection pump to timing belt
case.
HINT: Do not loosen the union nuts of injection pump
more than 114 of
a
turn.
(b) Slightly
tilt
the injection pump body and align the
belt case mark with the center mark on the pump
flange to the correct overlap dimension.
(c)
Tighten the following bolts and nuts:
(1) Two nuts holding injection pump to timing belt
case.
Torque:
210
kg-cm
(15
ft-lb,
21
N-m)
(2)
Two bolts holding injection pump to injection
pump stay.
Torque:
185
kg-cm
(13
ft-lb,
18
N-m)
START ENGINE AND CHECK FOR LEAKS
