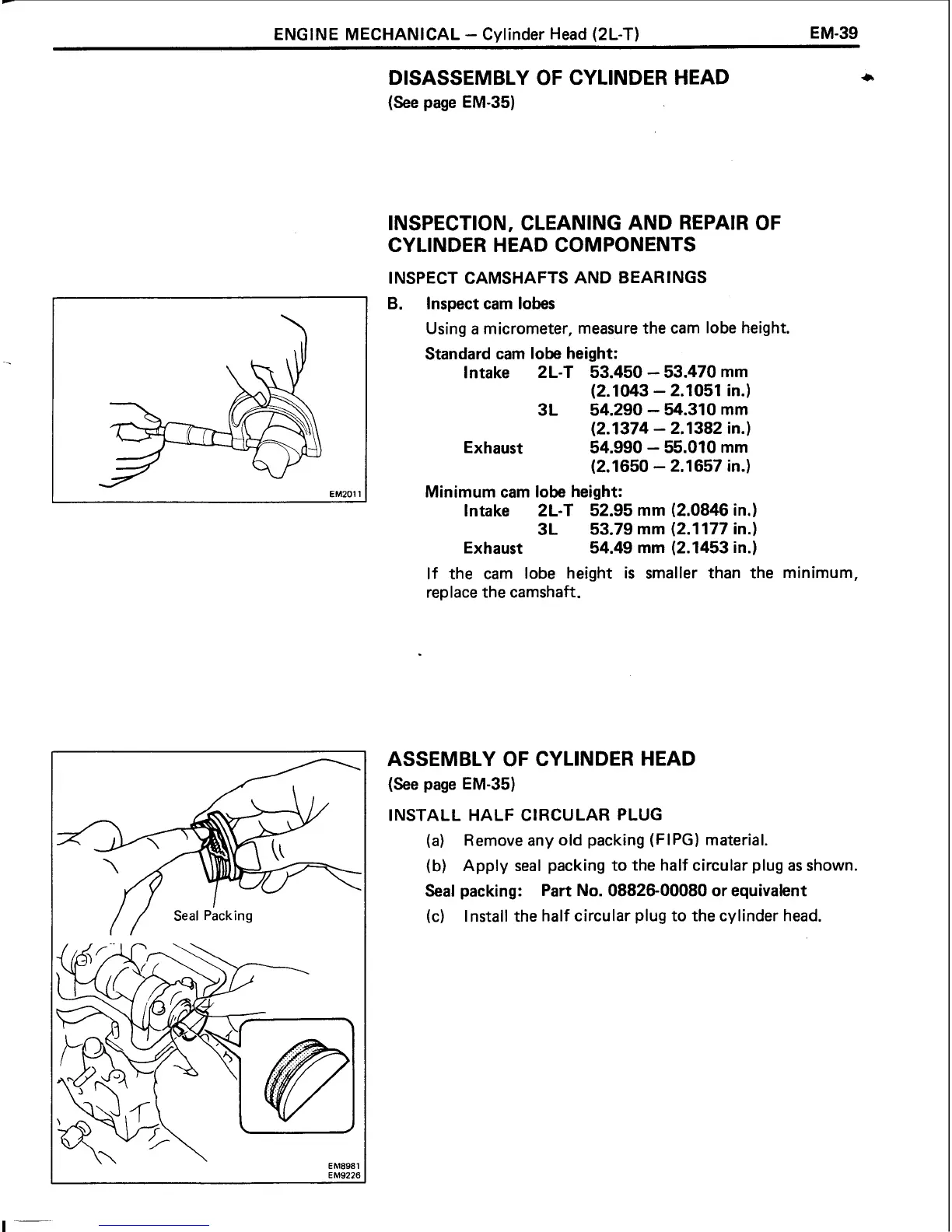

ENGINE MECHANICAL - Cylinder Head (2L-T)
EM-39
DISASSEMBLY OF CYLINDER HEAD a
(See page EM-35)
INSPECTION, CLEANING AND REPAIR OF
CYLINDER HEAD COMPONENTS
INSPECT CAMSHAFTS AND BEARINGS
B. Inspect cam lobes
Using
a micrometer, measure the cam lobe height.
Standard cam lobe height:
lntake 2L-T 53.450
- 53.470 mm
(2.1043
- 2.1051 in.)
3L 54.290
- 54.310 mm
(2.1374 - 2.1382 in.)
Exhaust 54.990
- 55.010 mm
(2.1650
- 2.1657 in.)
Minimum cam lobe height:
lntake 2L-T 52.95 mm (2.0846 in.)
3L 53.79 mm (2.1177 in.)
Exhaust 54.49 mm (2.1453 in.)
If the cam lobe height
is smaller than the minimum,
replace the camshaft.
ASSEMBLY OF CYLINDER HEAD
(See page EM-35)
INSTALL HALF CIRCULAR PLUG
(a)
Remove any old packing (FIPG) material.
(b) Apply seal packing to the half circular plug
as shown.
Seal packing:
Part No. 08826-00080 or equivalent
(c)
Install the half circular plug to the cylinder head.

Toyota 3L Specifications

General

Displacement	2.8 L (2, 779 cc)
Compression Ratio	22.2:1
Fuel Type	Diesel
Valvetrain	SOHC, 8 valves
Fuel System	Indirect injection
Power Output	91 hp (68 kW) at 4, 000 rpm
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Bore x Stroke	96 mm x 96 mm (3.78 in x 3.78 in)
Cylinder Arrangement	Inline-4
