FUEL SYSTEM - Injection Pump
FU-23

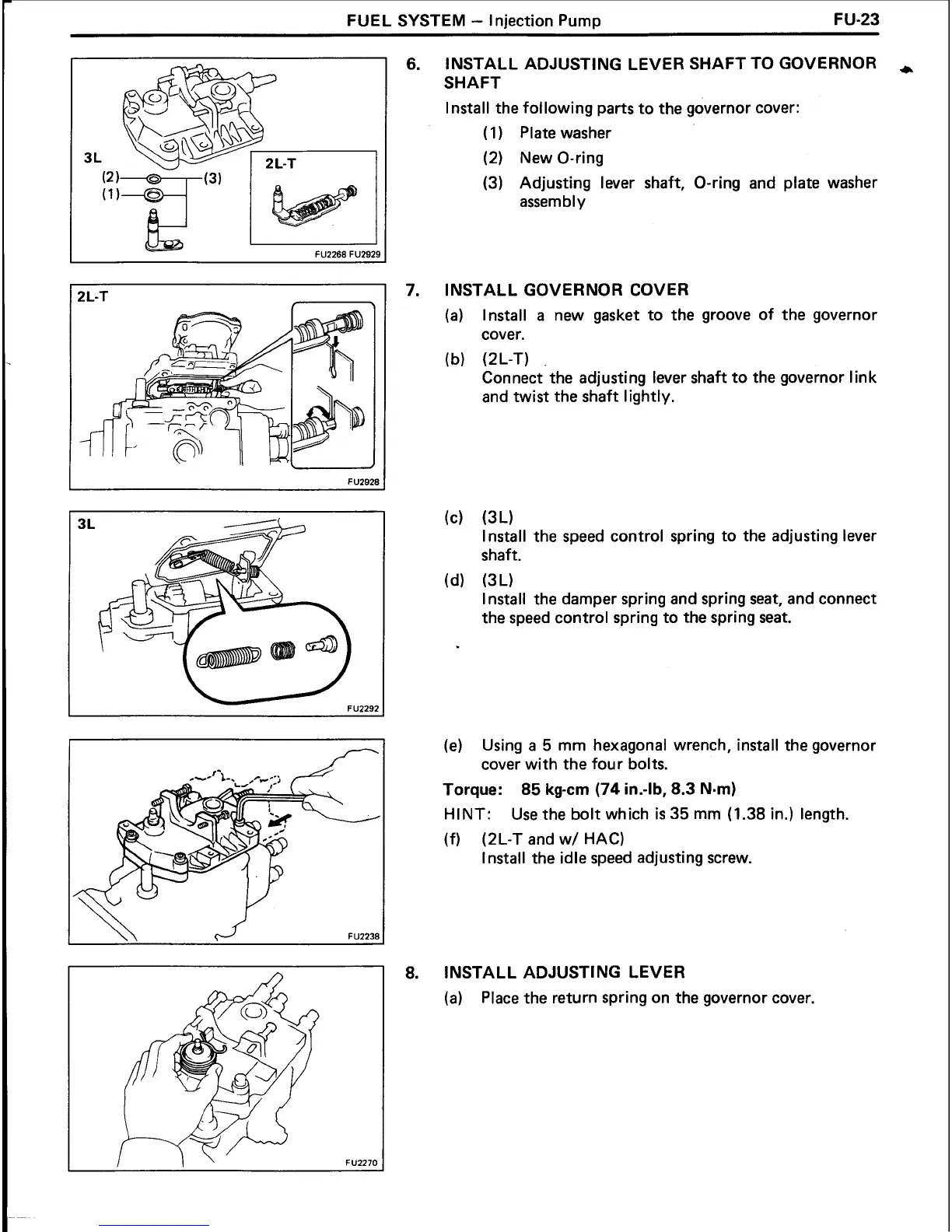

6. INSTALL ADJUSTING LEVER SHAFT TO GOVERNOR a
SHAFT
Install the following parts to the governor cover:
(1) Plate washer
(2) New O-ring
(3) Adjusting lever shaft, O-ring and plate washer
assembly
7. INSTALL GOVERNOR COVER
(a)
Install a new gasket to the groove of the governor
cover.
(b) (2L-T)
Connect the adjusting lever shaft to the governor link
and twist the shaft lightly.
(c) (3L)
Install the speed control spring to the adjusting lever
shaft.
(dl (3L)
l nstall the damper spring and spring seat, and connect
the speed control spring to the spring seat.
(e)
Using
a 5 mm hexagonal wrench, install the governor
cover with the four bolts.
Torque:
85 kg-cm (74 in.-lb, 8.3 N-m)
HINT:
Use the bolt which
is 35 mm (1.38 in.) length.
(f) (2L-T and w/ HAC)
lnstall the idle speed adjusting screw.
8. INSTALL ADJUSTING LEVER
(a)
Place the return spring on the governor cover.
