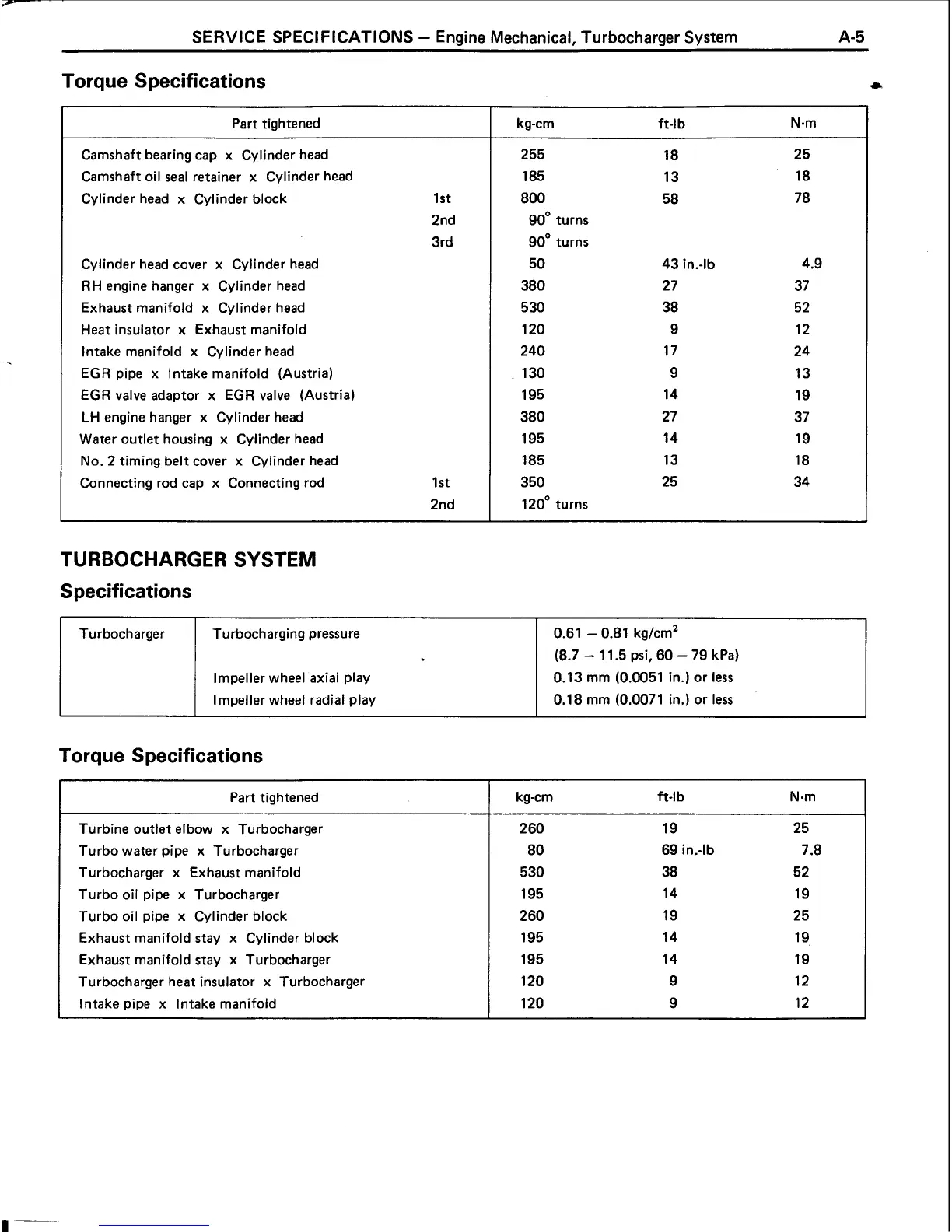

SERVICE SPECIFICATIONS - Engine Mechanical. Turbocharger Svstem
A-5
Torque Specifications
Part tightened
Camshaft bearing cap x Cylinder head
Camshaft oil seal retainer x Cylinder head
Cylinder head x Cylinder block 1st
2nd
3rd
Cylinder head cover x Cylinder head
RH engine hanger x Cylinder head
Exhaust manifold x Cylinder head
Heat insulator x Exhaust manifold
lntake manifold x Cylinder head
EGR pipe x lntake manifold (Austria)
EGR valve adaptor x EGR valve (Austria)
LH engine hanger x Cylinder head
Water outlet housing x Cylinder head
No.
2 timing belt cover x Cylinder head
Connecting rod cap x Connecting rod
1st
2nd
TURBOCHARGER SYSTEM
Specifications
kg-cm ft-lb N-m
255
185
800
90' turns
90' turns
50
380
530
120
240
130
195
380
195
185
350
120' turns
Turbocharger
Turbine outlet elbow x Turbocharger
Turbo water pipe x Turbocharger
Turbocharger x Exhaust manifold
Turbo oil pipe x Turbocharger
Turbo oil pipe
x Cylinder block
Exhaust manifold stay x Cylinder block
Exhaust manifold stay x Turbocharger
Turbocharger heat insulator x Turbocharger
lntake pipe
x lntake manifold
Torque Specifications
Turbocharging pressure
Impeller wheel axial play
Impeller wheel radial play
Part tightened
0.61
- 0.81 kg/cm2
(8.7
- 11.5 psi, 60 - 79 kPa)
0.13 mm (0.0051 in.) or less
0.1
8 mm (0.0071 in.) or less
kg-cm ft-lb N .m

Toyota 3L Specifications

General

Displacement	2.8 L (2, 779 cc)
Compression Ratio	22.2:1
Fuel Type	Diesel
Valvetrain	SOHC, 8 valves
Fuel System	Indirect injection
Power Output	91 hp (68 kW) at 4, 000 rpm
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Bore x Stroke	96 mm x 96 mm (3.78 in x 3.78 in)
Cylinder Arrangement	Inline-4
