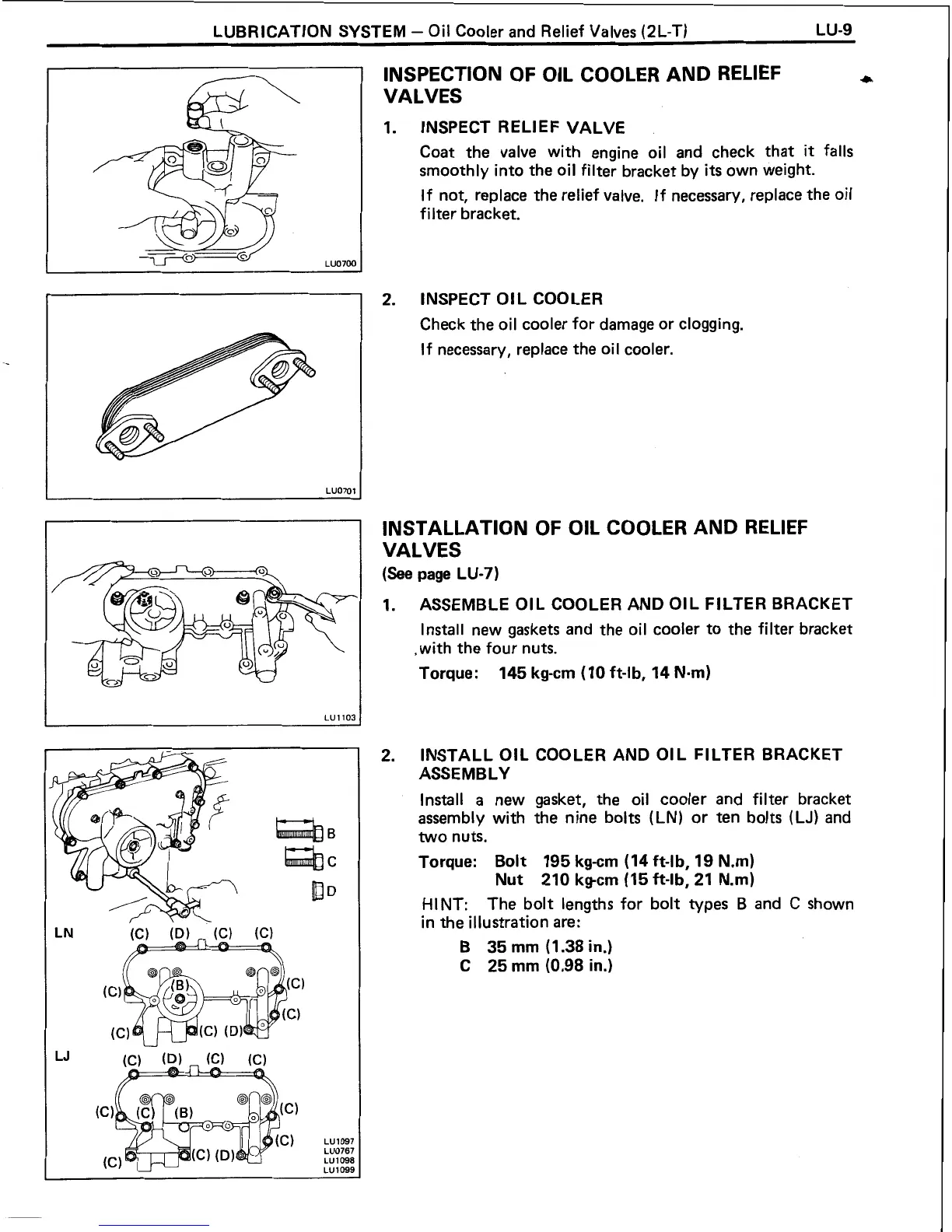

LUBRICATION SYSTEM
-
Oil Cooler and Relief Valves
(2L-T)
LU-9
INSPECTION OF OIL COOLER AND RELIEF
VALVES
1.
INSPECT RELIEF VALVE
Coat the valve with engine oil and check that
it
falls
smoothly into the oil filter bracket by
its
own weight.
If not, replace the relief valve. If necessary, replace the oil
filter bracket.
2. INSPECT OIL COOLER
Check the oil cooler for damage or clogging.
If necessary, replace the oil cooler.
INSTALLATION OF OIL COOLER AND RELIEF
VALVES
(See
page LU-7)
ASSEMBLE OIL COOLER AND OIL FILTER BRACKET
Install new gaskets and the oil cooler to the filter bracket
.with the four nuts.
Torque:
145 kg-cm (10 ft-lb, 14
N-m)
INSTALL OIL COOLER AND OIL FILTER BRACKET
ASSEMBLY
Install
a
new gasket, the oil cooler and filter bracket
assembly with the nine bolts (LN) or ten bolts (LJ) and
two nuts.
Torque: Bolt 195 kg-cm (14 ft-lb, 19
N.m)
Nut
210 kpcm (15 ft-lb, 21 N.m)
HINT:
The bolt lengths for bolt types
B
and
C
shown
in the illustration are:
B
35
mm (1.38 in.)
C 25 mm (0.98 in.)
