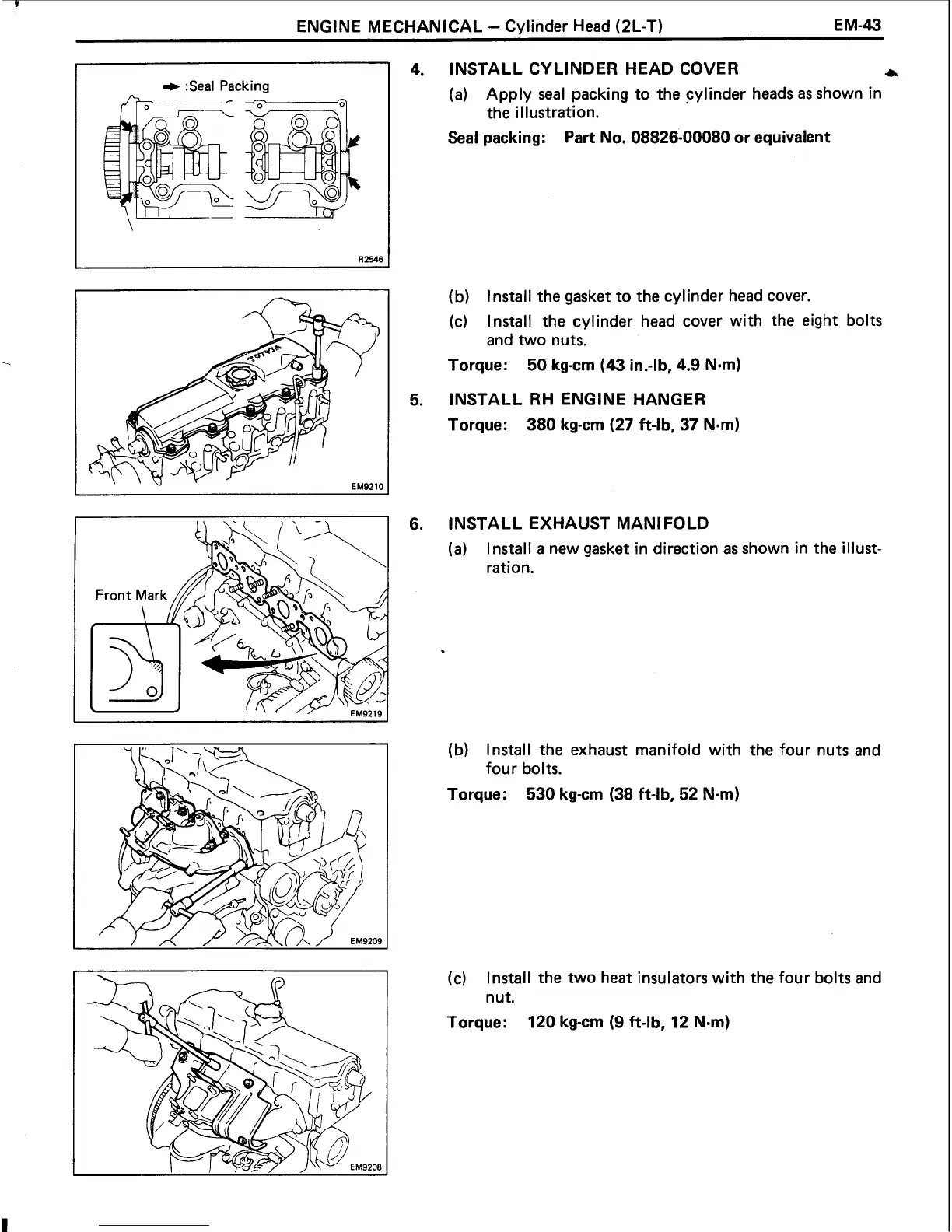

ENGINE MECHANICAL - Cylinder Head (2L-T)
EM-43
- :Seal Packing
? -
INSTALL CYLINDER HEAD COVER +
(a)
Apply seal packing to the cylinder heads
as shown in
the illustration.
Part No. 08826-00080 or equivalent
Seal packing:
(b)
l nstall the gasket to the cylinder head cover.
(c) Install the cylinder head cover with the eight bolts
and two nuts.
Torque:
50 kg-cm (43 in.-lb, 4.9 N-m)
INSTALL RH ENGINE HANGER
Torque:
380 kg-cm (27 ft-lb, 37 N-m)
INSTALL EXHAUST MANIFOLD
(a)
Install a new gasket in direction as shown in the illust-
ration.
(b)
Install the exhaust manifold with the four nuts and
four bolts.
Torque: 530 kg-cm (38 ft-lb, 52 N-m)
(c)
Install the two heat insulators with the four bolts and
nut.
Torque:
120 kg-cm (9 ft-lb, 12 Nmm)

Toyota 3L Specifications

General

Displacement	2.8 L (2, 779 cc)
Compression Ratio	22.2:1
Fuel Type	Diesel
Valvetrain	SOHC, 8 valves
Fuel System	Indirect injection
Power Output	91 hp (68 kW) at 4, 000 rpm
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Bore x Stroke	96 mm x 96 mm (3.78 in x 3.78 in)
Cylinder Arrangement	Inline-4
