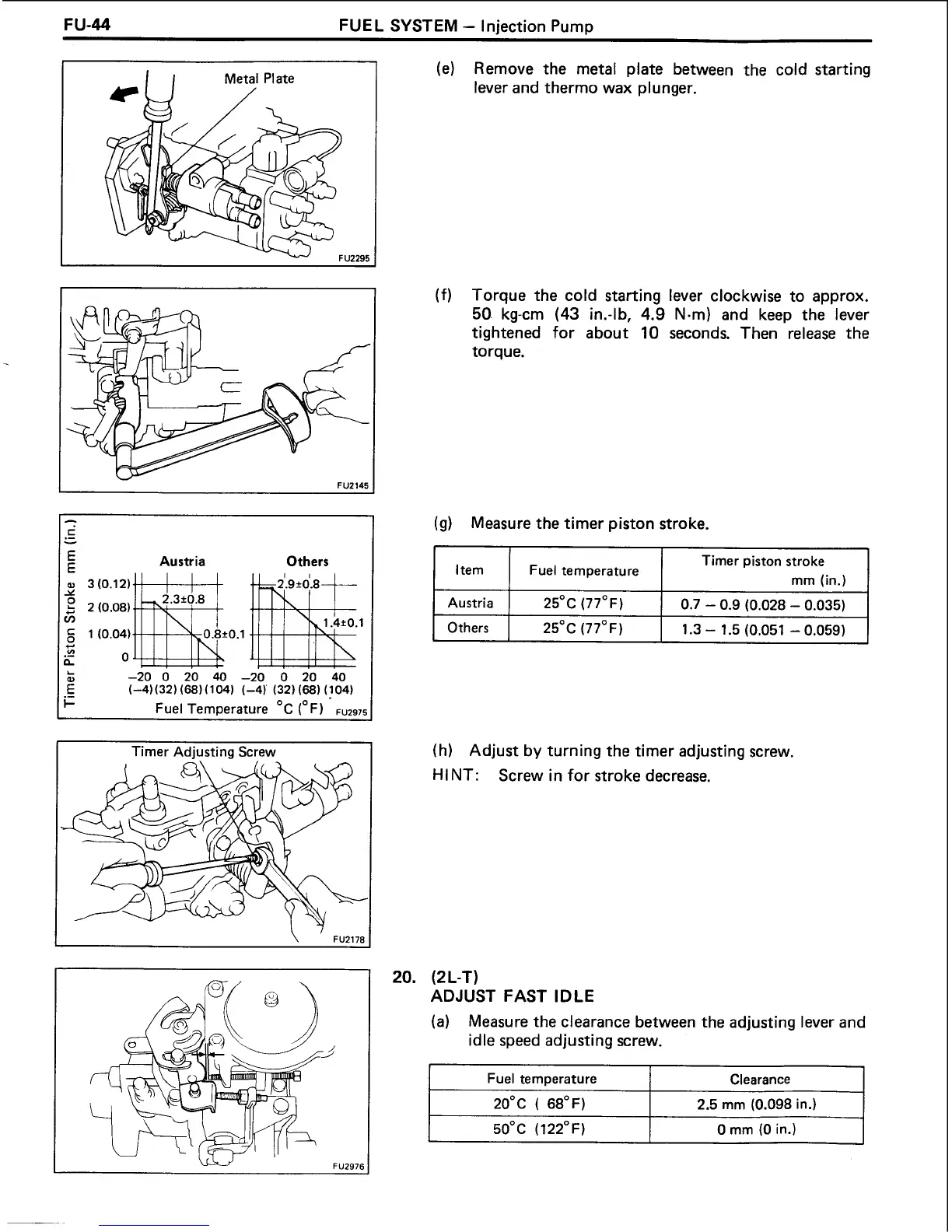

FU-44
FUEL SYSTEM
- lniection Pumo
I I Metal Plate
I I Austria Others
L
E"
-20 0 20 40 -20 0 20 40
(-4)(32) (68)(104)
(-4)' (32)
(68) (104)
F
Fuel Temperature "C (OF) FV2975
I Timer Adjusting Screw
(e)
Remove the metal plate between the cold starting
lever and thermo wax plunger.
(f)
Torque the cold starting lever clockwise to approx.
50. kg-cm
(43 in.-lb, 4.9 N-m) and keep the lever
tightened for about
10 seconds. Then release the
torque.
(g)
Measure the timer piston stroke.
1 Item I
Timer piston stroke
Fuel temperature
mm (in.)
(h) Adjust by turning the timer adjusting screw.
HINT: Screw in for stroke decrease.
Austria
Others
20. (2L-T)
ADJUST FAST IDLE
(a)
Measure the clearance between the adjusting lever and
idle speed adjusting screw.
25°C (77"~)
25"~ (77°F)
0.7
- 0.9 (0.028 - 0.035)
1.3 - 1.5 (0.051 - 0.059)
I 20°C ( 68°F) I 2.5 rnm (0.098 in.) 1
Fuel temperature
Clearance
1
50"~ (122°F) 0 mm (0 in.)
