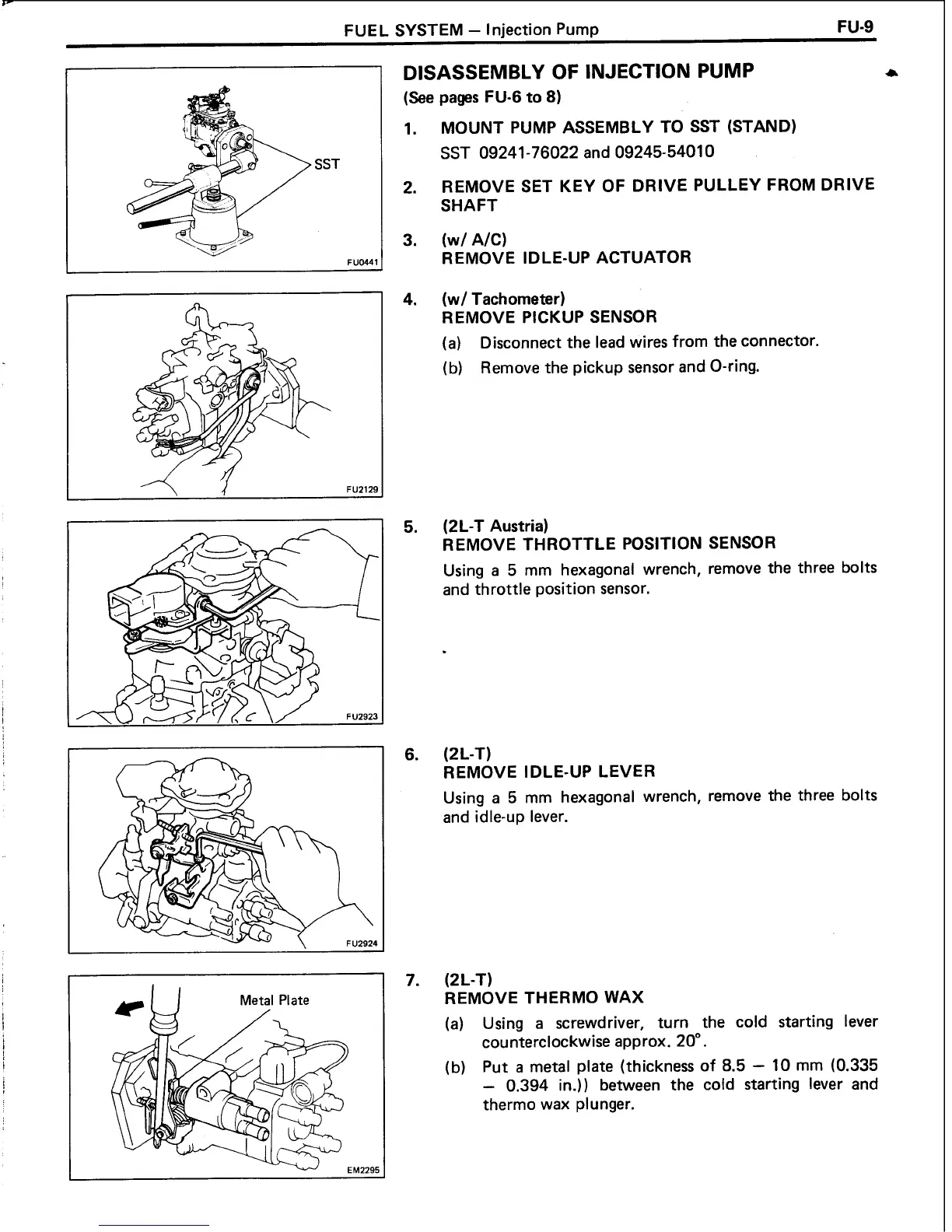

FUEL SYSTEM - Injection Pump
FU-9
I 1 DISASSEMBLY OF INJECTION PUMP c
SST
(See pages FU-6 to 8)
1.
MOUNT PUMP ASSEMBLY TO SST (STAND)
SST 09241-76022 and 09245-5401 0
REMOVE SET KEY OF DRIVE PULLEY FROM DRIVE
SHAFT
(wl AIC)
REMOVE IDLE-UP ACTUATOR
(wl Tachometer)
REMOVE PICKUP SENSOR
(a)
Disconnect the lead wires from the connector.
(b)
Remove the pickup sensor and O-ring.
(2L-T Austria)
REMOVE THROTTLE POSITION SENSOR
Using a 5 mm hexagonal wrench, remove the three bolts
and throttle position sensor.
(2 L-T)
REMOVE IDLE-UP LEVER
Using a 5 mm hexagonal wrench, remove the three bolts
and idle-up lever.
(2 L-T)
REMOVE THERMO WAX
(a) Using a screwdriver, turn the cold starting lever
counterclockwise approx. 20".
(b) Put
a metal plate (thickness of 8.5 - 10 mm (0.335
- 0.394 in.)) between the cold starting lever and
thermo wax plunger.

Toyota 3L Specifications

General

Displacement	2.8 L (2, 779 cc)
Compression Ratio	22.2:1
Fuel Type	Diesel
Valvetrain	SOHC, 8 valves
Fuel System	Indirect injection
Power Output	91 hp (68 kW) at 4, 000 rpm
Aspiration	Naturally aspirated
Cooling System	Water-cooled
Bore x Stroke	96 mm x 96 mm (3.78 in x 3.78 in)
Cylinder Arrangement	Inline-4
