9
FUEL SYSTEM/ENGINE MANAGEMENT
Tkewu

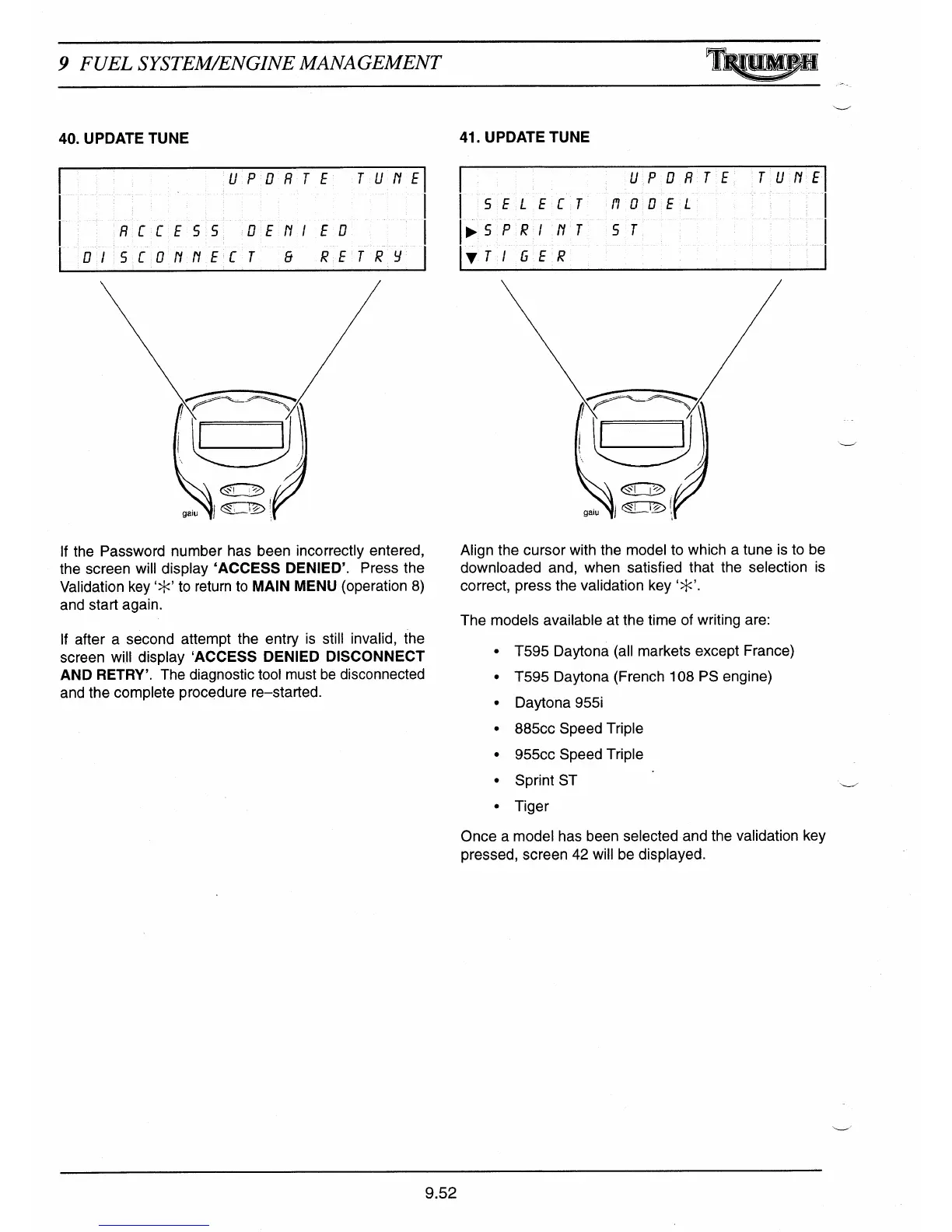

40. UPDATE TUNE
UPDATE
runt
', SS
O E IY I
ED
D1SC0fYlYfCT
&
RETRY
41. UPDATE TUNE
UPDRT E
T UIYf
SEL ECT n
O p f
L
I ► S P R I MT ST
I TT i GER
If the Password number has been incorrectly entered,
the screen will display
`ACCESS DENIED'.
Press the
Validation key `*' to return to
MAIN MENU
(operation 8)
and start again.
If after a second attempt the entry is still invalid, the
screen will display
`ACCESS DENIED DISCONNECT
AND RETRY'.
The diagnostic tool must be disconnected
and the complete procedure re—started.
Align the cursor with the model to which a tune is to be
downloaded and, when satisfied that the selection is
correct, press the validation key '*'.
The models available at the time of writing are:
• T595 Daytona (all markets except France)
• T595 Daytona (French 108 PS engine)
• Daytona 955i
• 885cc Speed Triple
•
955cc Speed Triple
•
Sprint ST
•
Tiger
Once a model has been selected and the validation key
pressed, screen 42 will be displayed.
9.52

Triumph Daytona 955i Specifications

General

Displacement	955 cc
Bore x Stroke	79 x 65 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Transmission	6-speed
Rear Brakes	Single 220 mm disc, 2-piston caliper
Front Tire	120/70 ZR17
Rear Tire	190/50 ZR17
Width	720 mm (28.3 in)
Seat Height	815 mm (32.1 in)
Engine Type	Liquid-cooled, inline 3-cylinder
Max Torque	100 Nm (74 lb-ft) @ 8, 200 rpm
Final Drive	Chain
Frame	Aluminum beam
Front Suspension	43 mm inverted telescopic fork, adjustable
Rear Suspension	Monoshock, adjustable
Front Brakes	Twin 320 mm discs, 4-piston calipers
Fuel Capacity	21 litres (5.5 US gallons)
