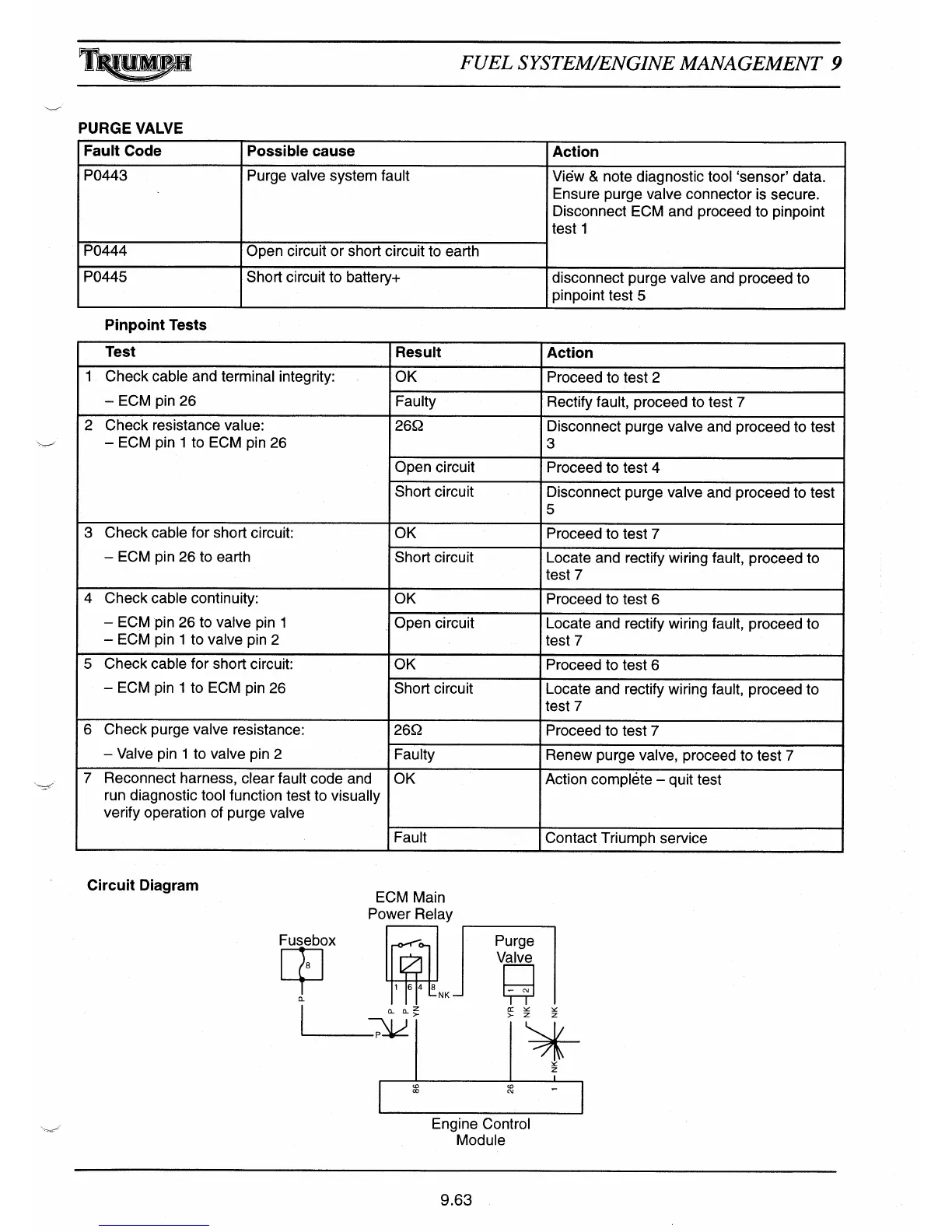

FUEL SYSTEM/ENGINE MANAGEMENT 9
PURGE VALVE
Fault Code
Possible cause
Action
PO443
Purge valve system fault
View & note diagnostic tool `sensor' data.
Ensure purge valve connector is secure.
Disconnect ECM and proceed to pinpoint
test 1
PO444
Open circuit or short circuit to earth
PO445
Short circuit to battery+
disconnect purge valve and proceed to
pinpoint test 5
Pinpoint Tests
Test
Result
Action
1
Check cable and terminal integrity:
— ECM pin 26
OK
Proceed to test 2
Faulty
Rectify fault, proceed to test 7
2 Check resistance value:
— ECM pin 1 to ECM pin 26
26Q
Disconnect purge valve and proceed to test
3
Open circuit
Proceed to test 4
Short circuit
Disconnect purge valve and proceed to test
5
3 Check cable for short circuit:
— ECM pin 26 to earth
OK
Proceed to test 7
Short circuit
Locate and rectify wiring fault, proceed to
test 7
4
Check cable continuity:
— ECM pin 26 to valve pin 1
— ECM pin 1 to valve pin 2
OK
Proceed to test 6
Open circuit
Locate and rectify wiring fault, proceed to
test 7
5
Check cable for short circuit:
— ECM pin 1 to ECM pin 26
OK
Proceed to test 6
Short circuit
Locate and rectify wiring fault, proceed to
test 7
6
Check purge valve resistance:
- Valve pin 1 to valve pin 2
2652
Proceed to test 7
Faulty
Renew purge valve, proceed to test 7
7
Reconnect harness, clear fault code and
run diagnostic tool function test to visually
verify operation of purge valve
OK
Action complete — quit test
Fault
Contact Triumph service
Circuit Diagram
ECM Main
Power Relay
Fusebox
Valve
[oro1[j
r N
NK
a az a:
Y
Y
> z
z
Z
N
-I
Engine Control
Module
9.63

Triumph Daytona 955i Specifications

General

Displacement	955 cc
Bore x Stroke	79 x 65 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Transmission	6-speed
Rear Brakes	Single 220 mm disc, 2-piston caliper
Front Tire	120/70 ZR17
Rear Tire	190/50 ZR17
Width	720 mm (28.3 in)
Seat Height	815 mm (32.1 in)
Engine Type	Liquid-cooled, inline 3-cylinder
Max Torque	100 Nm (74 lb-ft) @ 8, 200 rpm
Final Drive	Chain
Frame	Aluminum beam
Front Suspension	43 mm inverted telescopic fork, adjustable
Rear Suspension	Monoshock, adjustable
Front Brakes	Twin 320 mm discs, 4-piston calipers
Fuel Capacity	21 litres (5.5 US gallons)
