Triumph Daytona 955i User Manual

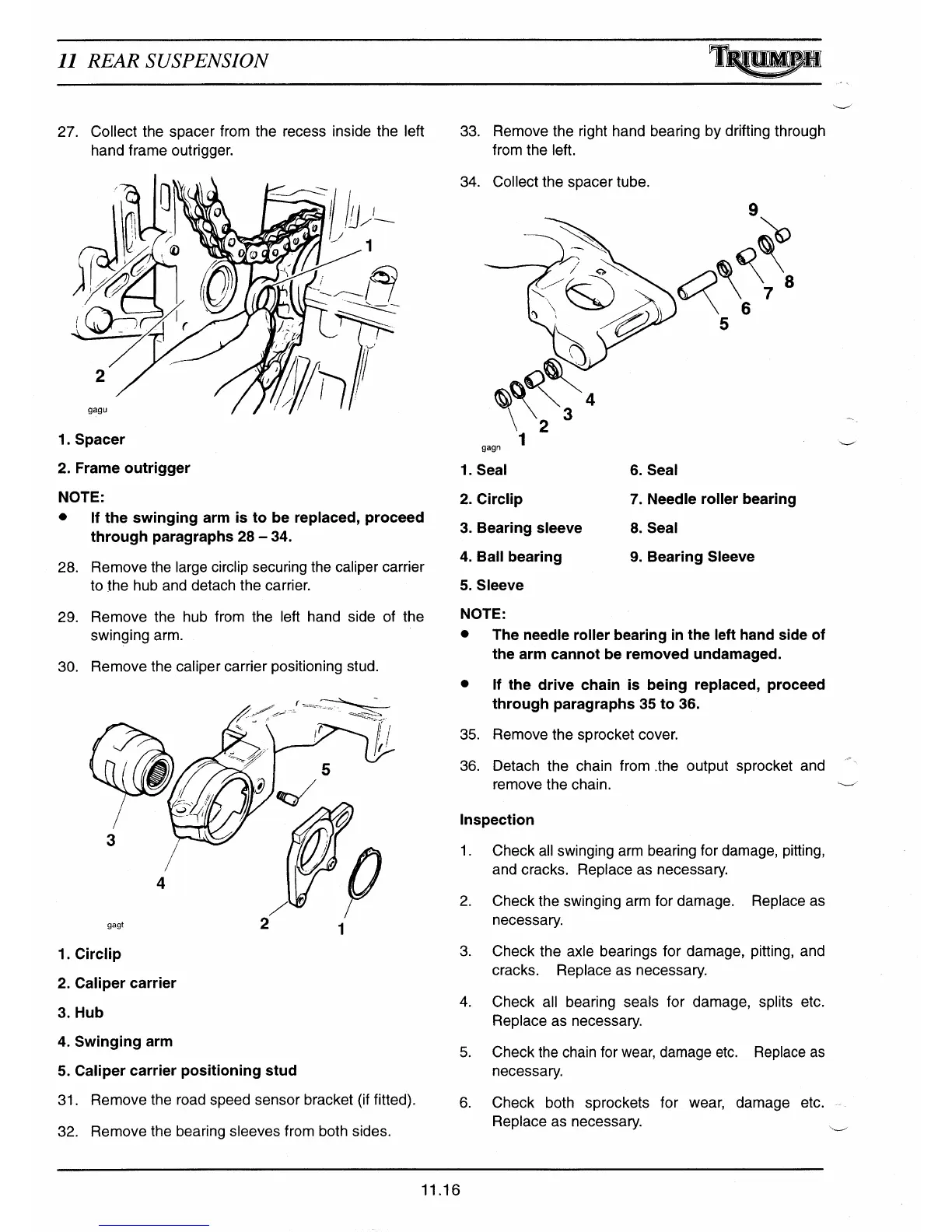

11 REAR SUSPENSION
27. Collect the spacer from the recess inside the left
hand frame outrigger.
1. Spacer
2.
Frame outrigger
NOTE:
•
If the swinging arm is to be replaced, proceed
through paragraphs 28-34.
28. Remove the large circlip securing the caliper carrier
to the hub and detach the carrier.
29. Remove the hub from the left hand side of the
swinging arm.
30. Remove the caliper carrier positioning stud.
g
a
g
t
2
1
1.
Circlip
2.
Caliper carrier
3. Hub
4.
Swinging arm
5.
Caliper carrier positioning stud
31. Remove the road speed sensor bracket (if fitted)
32. Remove the bearing sleeves from both sides.
33. Remove the right hand bearing by drifting through
from the left.
34. Collect the spacer tube.
9
7
6
2
gagn
1
1. Seal 6. Seal
2.
Circlip 7. Needle roller bearing
3. Bearing sleeve 8. Seal
4. Ball bearing 9. Bearing Sleeve
5.
Sleeve
NOTE:
•
The needle roller bearing in the left hand side of
the arm cannot be removed undamaged.
•
If the drive chain is being replaced, proceed
through paragraphs 35 to 36.
35. Remove the sprocket cover.
36. Detach the chain from the output sprocket and
remove the chain. ^-
Inspection
1.
Check all swinging arm bearing for damage, pi
tt
ing,
and cracks. Replace as necessa
ry
.
2.
Check the swinging arm for damage. Replace as
necessary.
3. Check the axle bearings for damage, pitting, and
cracks. Replace as necessa
ry
.
4.
Check all bearing seals for damage, splits etc.
Replace as necessa ry
.
5. Check the chain for wear, damage etc. Replace as
necessary.
6. Check both sprockets for wear, damage etc.
Replace as necessa ry .
11.16

Triumph Daytona 955i Specifications

General

Displacement	955 cc
Bore x Stroke	79 x 65 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Transmission	6-speed
Rear Brakes	Single 220 mm disc, 2-piston caliper
Front Tire	120/70 ZR17
Rear Tire	190/50 ZR17
Width	720 mm (28.3 in)
Seat Height	815 mm (32.1 in)
Engine Type	Liquid-cooled, inline 3-cylinder
Max Torque	100 Nm (74 lb-ft) @ 8, 200 rpm
Final Drive	Chain
Frame	Aluminum beam
Front Suspension	43 mm inverted telescopic fork, adjustable
Rear Suspension	Monoshock, adjustable
Front Brakes	Twin 320 mm discs, 4-piston calipers
Fuel Capacity	21 litres (5.5 US gallons)
