ELECTRICAL SYSTEM
i
M
!^(
fI
L

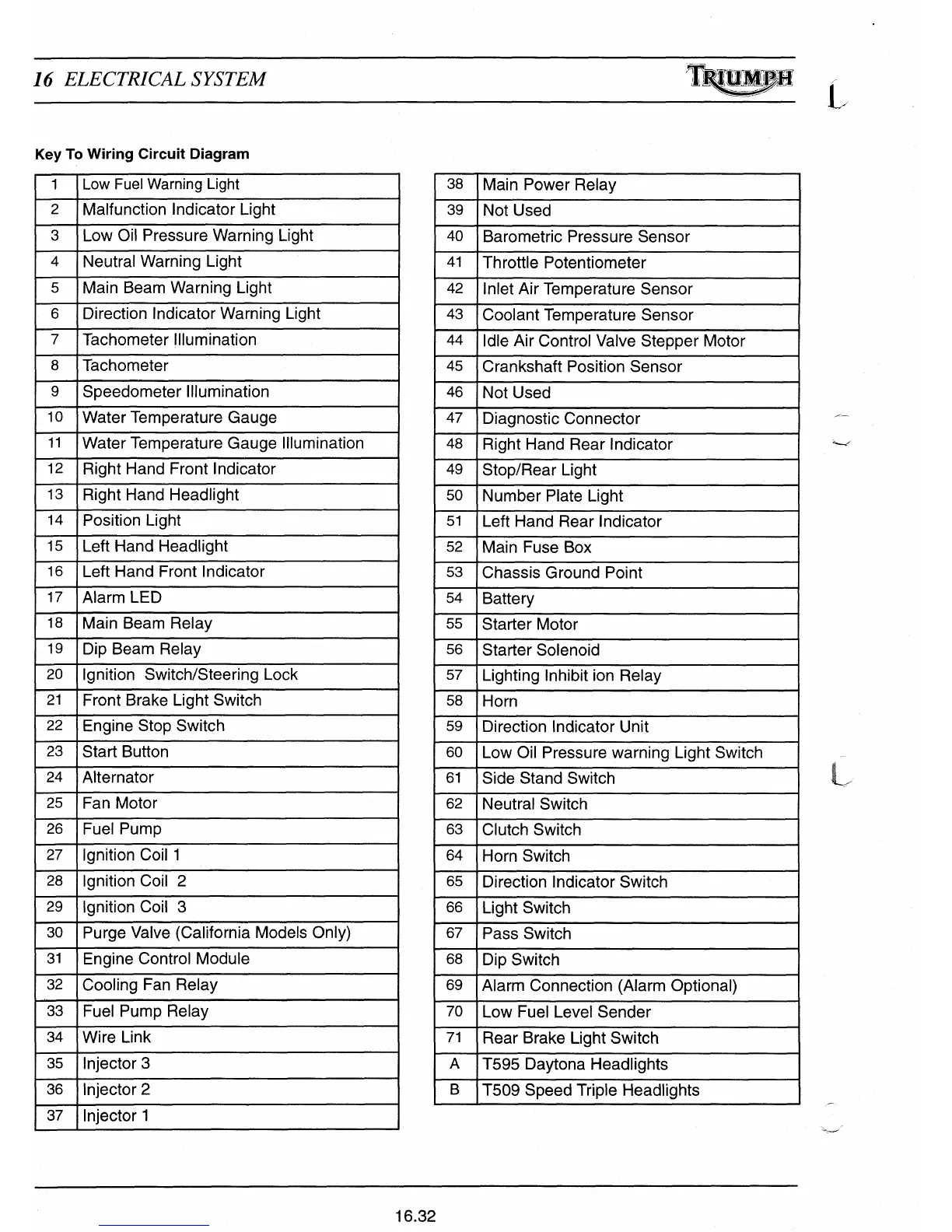

Key To Wiring Circuit Diagram
1
Low Fuel Warning Light
2
Malfunction Indicator Light
3
Low Oil Pressure Warning Light
4
Neutral Warning Light
5
Main Beam Warning Light
6
Direction Indicator Warning Light
7
Tachometer Illumination
8
Tachometer
9
Speedometer Illumination
10
Water Temperature Gauge
11
Water Temperature Gauge Illumination
12
Right Hand Front Indicator
13
Right Hand Headlight
14
Position Light
15
Left Hand Headlight
16
Left Hand Front Indicator
17
Alarm LED
18
Main Beam Relay
19
Dip Beam Relay
20
Ignition Switch/Steering Lock
21
Front Brake Light Switch
22
Engine Stop Switch
23
Start Button
24
Alternator
25
Fan Motor
26
Fuel Pump
27
Ignition Coil 1
28
Ignition Coil 2
29
Ignition Coil 3
30
Purge Valve (California Models Only)
31
Engine Control Module
32
Cooling Fan Relay
33
Fuel Pump Relay
34
Wire Link
35
Injector 3
36
Injector 2
37
Injector 1
38
Main Power Relay
39
Not Used
40
Barometric Pressure Sensor
41
Throttle Potentiometer
42
Inlet Air Temperature Sensor
43
Coolant Temperature Sensor
44
Idle Air Control Valve Stepper Motor
45
Crankshaft Position Sensor
46
Not Used
47
Diagnostic Connector
48
Right Hand Rear Indicator
49
Stop/Rear Light
50
Number Plate Light
51
Left Hand Rear Indicator
52
Main Fuse Box
53
Chassis Ground Point
54
Battery
55
Starter Motor
56
Starter Solenoid
57
Lighting Inhibit ion Relay
58
Horn
59
Direction Indicator Unit
60
Low Oil Pressure warning Light Switch
61
Side Stand Switch
62
Neutral Switch
63
Clutch Switch
64
Horn Switch
65
Direction Indicator Switch
66
Light Switch
67
Pass Switch
68
Dip Switch
69
Alarm Connection (Alarm Optional)
70
Low Fuel Level Sender
71
Rear Brake Light Switch
A
T595 Daytona Headlights
B
T509 Speed Triple Headlights
16.32
To Next Page
