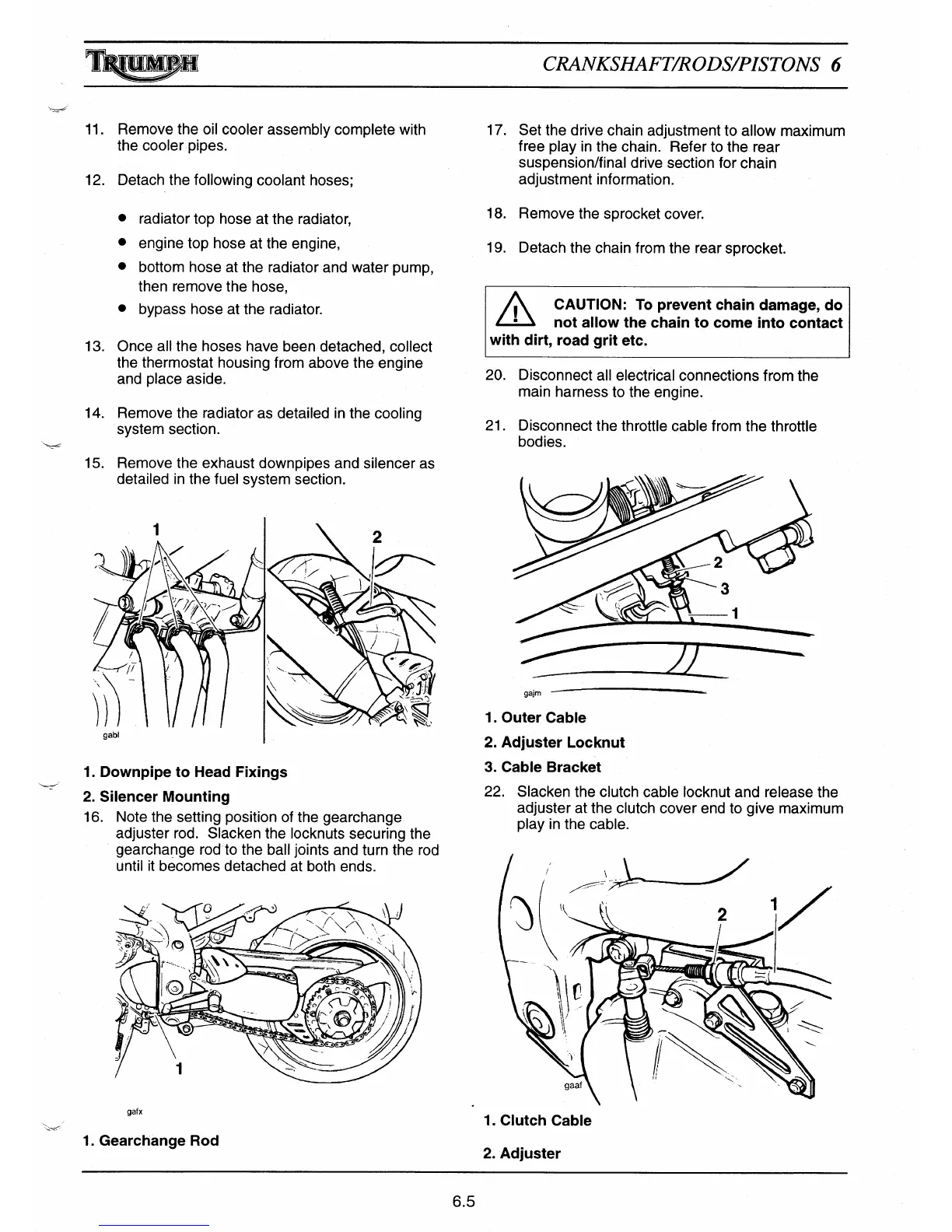

CRANKSHAFT/RODS/PISTONS 6
11. Remove the oil cooler assembly complete with
the cooler pipes.
12. Detach the following coolant hoses;
• radiator top hose at the radiator,
• engine top hose at the engine,
• bottom hose at the radiator and water pump,
then remove the hose,
• bypass hose at the radiator.
13. Once all the hoses have been detached, collect
the thermostat housing from above the engine
and place aside.
14. Remove the radiator as detailed in the cooling
system section.
15. Remove the exhaust downpipes and silencer as
detailed in the fuel system section.
1.
Downpipe to Head Fixings
2.
Silencer Mounting
16. Note the setting position of the gearchange
adjuster rod. Slacken the locknuts securing the
gearchange rod to the ball joints and turn the rod
until it becomes detached at both ends.
gafx
1. Gearchange Rod
17. Set the drive chain adjustment to allow maximum
free play in the chain. Refer to the rear
suspension/final drive section for chain
adjustment information.
18. Remove the sprocket cover.
19. Detach the chain from the rear sprocket.
CAUTION: To prevent chain damage, do
•
not allow the chain to come into contact
with dirt, road grit etc.
20. Disconnect all electrical connections from the
main harness to the engine.
21. Disconnect the throttle cable from the throttle
bodies.
gajm
1. Outer Cable
2.
Adjuster Locknut
3. Cable Bracket
22. Slacken the clutch cable locknut and release the
adjuster at the clutch cover end to give maximum
play in the cable.
1. Clutch Cable
2.
Adjuster
6.5

Triumph Daytona 955i Specifications

General

Displacement	955 cc
Bore x Stroke	79 x 65 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Transmission	6-speed
Rear Brakes	Single 220 mm disc, 2-piston caliper
Front Tire	120/70 ZR17
Rear Tire	190/50 ZR17
Width	720 mm (28.3 in)
Seat Height	815 mm (32.1 in)
Engine Type	Liquid-cooled, inline 3-cylinder
Max Torque	100 Nm (74 lb-ft) @ 8, 200 rpm
Final Drive	Chain
Frame	Aluminum beam
Front Suspension	43 mm inverted telescopic fork, adjustable
Rear Suspension	Monoshock, adjustable
Front Brakes	Twin 320 mm discs, 4-piston calipers
Fuel Capacity	21 litres (5.5 US gallons)
