Paper jams at lever 1b and knob 1c
Tip
Always ensure that all paper jams, including any small ripped pieces of paper, are cleared
before proceeding with your copy/print jobs.

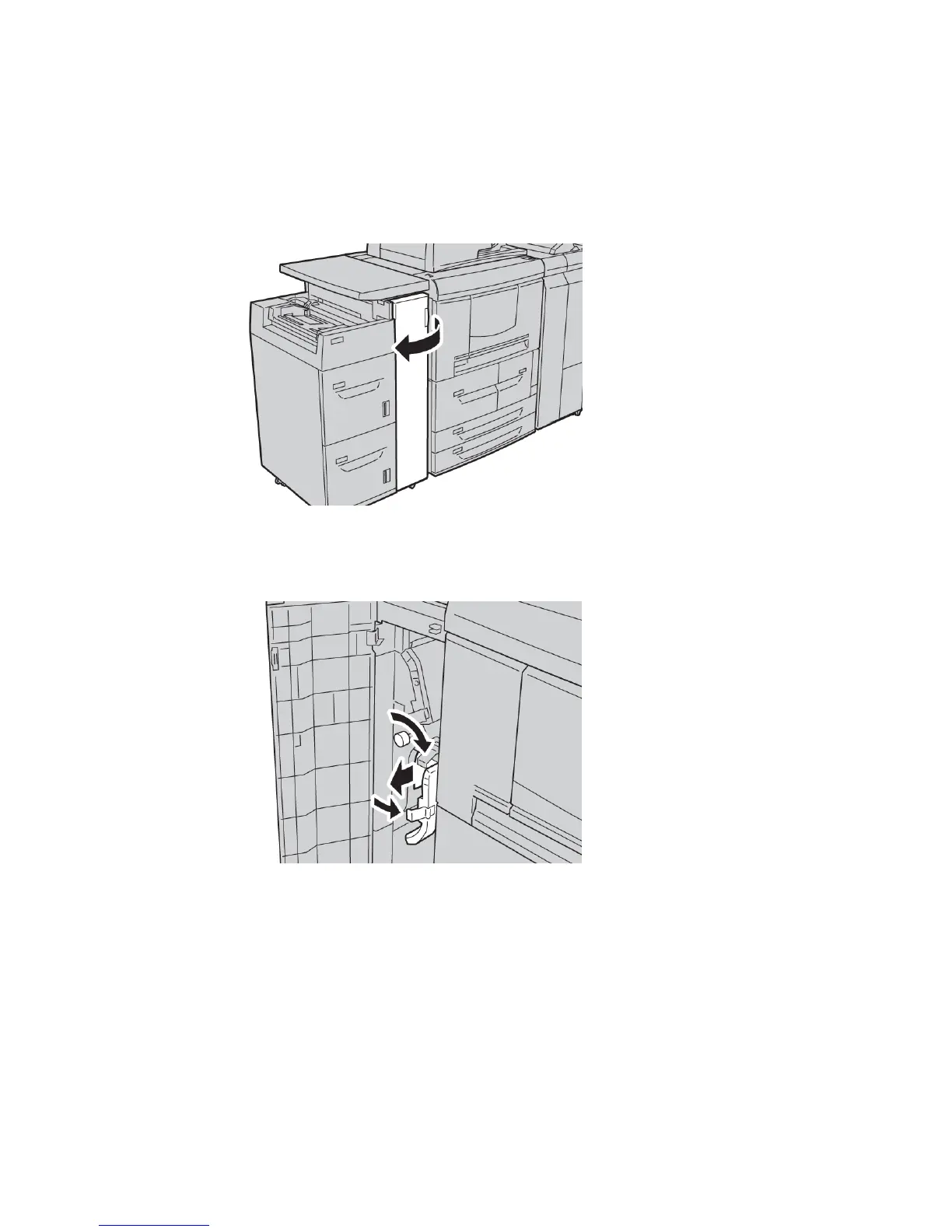

1. Open the front cover of the HCF.
2. Move lever 1b to the right and turn knob 1c to the right. Remove the jammed paper.
Note
If paper is torn, check inside the machine and remove it.
3. Return lever 1b to the original position.
4. Close the front cover of the HCF completely.
Note
The machine will not operate if the cover is open even slightly.
User Guide17-8
High Capacity Feeder (HCF/Trays 6 and 7), 8.5 x 11 in./A4
