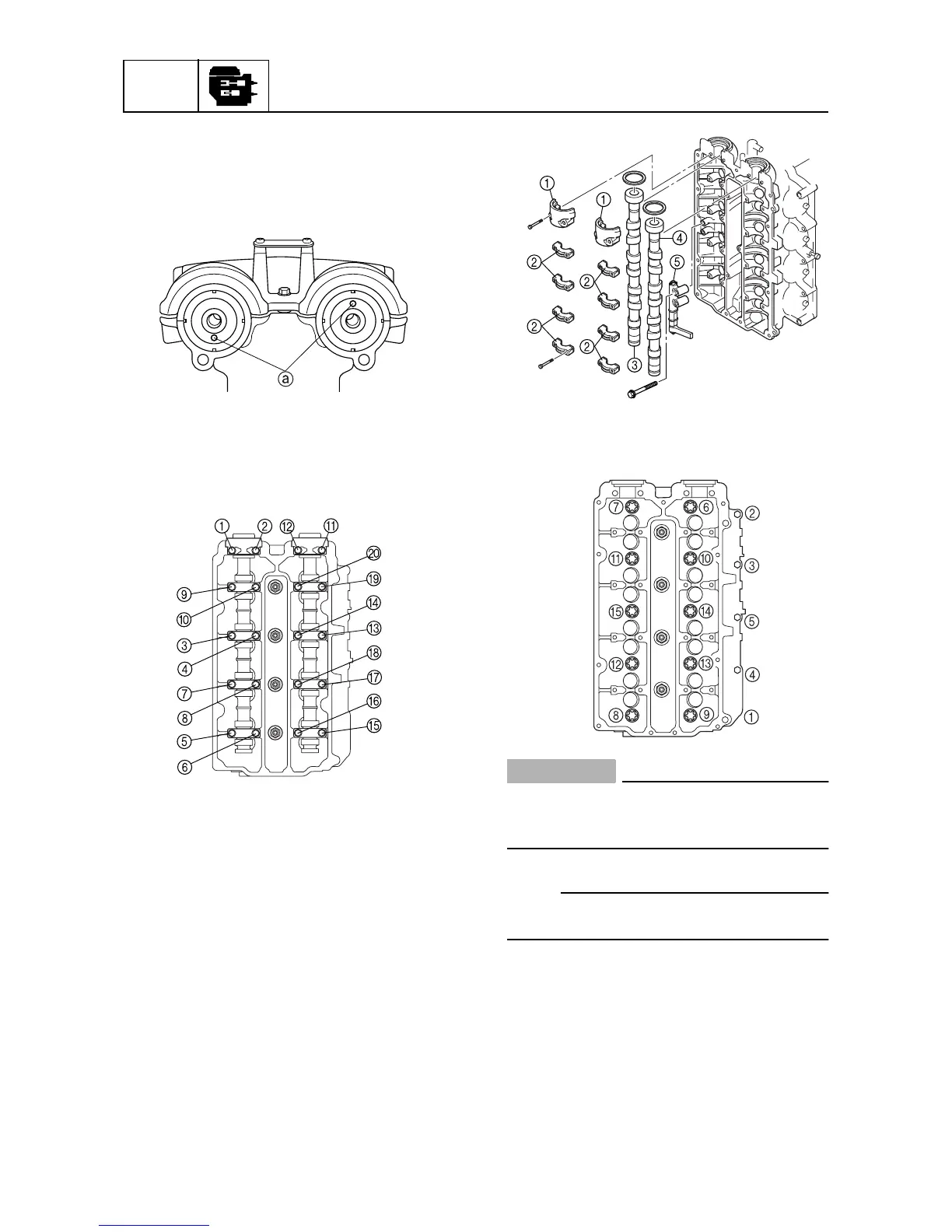

Removing the cylinder head
1. Check that the camshaft dowel pin holes
a
are in the position shown in the illus-
tration. Adjust if necessary.
2. Remove the cylinder head cover.
3. Remove the camshaft cap bolts in the
sequence shown.
4. Remove camshaft caps
1
and
2
, cam-
shaft (intake)
3
, camshaft (exhaust)
4
,
and fuel pump bracket
5
.
5. Remove the cylinder head bolts in the
sequence shown.
CAUTION:
Do not scratch or damage the mating sur-
faces of the cylinder head and cylinder
body.
NOTE:
Use a T-type TORX socket (T55) to remove
the cylinder head bolts (M10).
6. Remove the valve pads
6
and valve lift-
ers
7
.
S60C5340
S60C5350
S60C5360
S60C5370
