Yamaha F100B Service Manual

ELEC
Electrical systems
– +
8-7
60C5D11

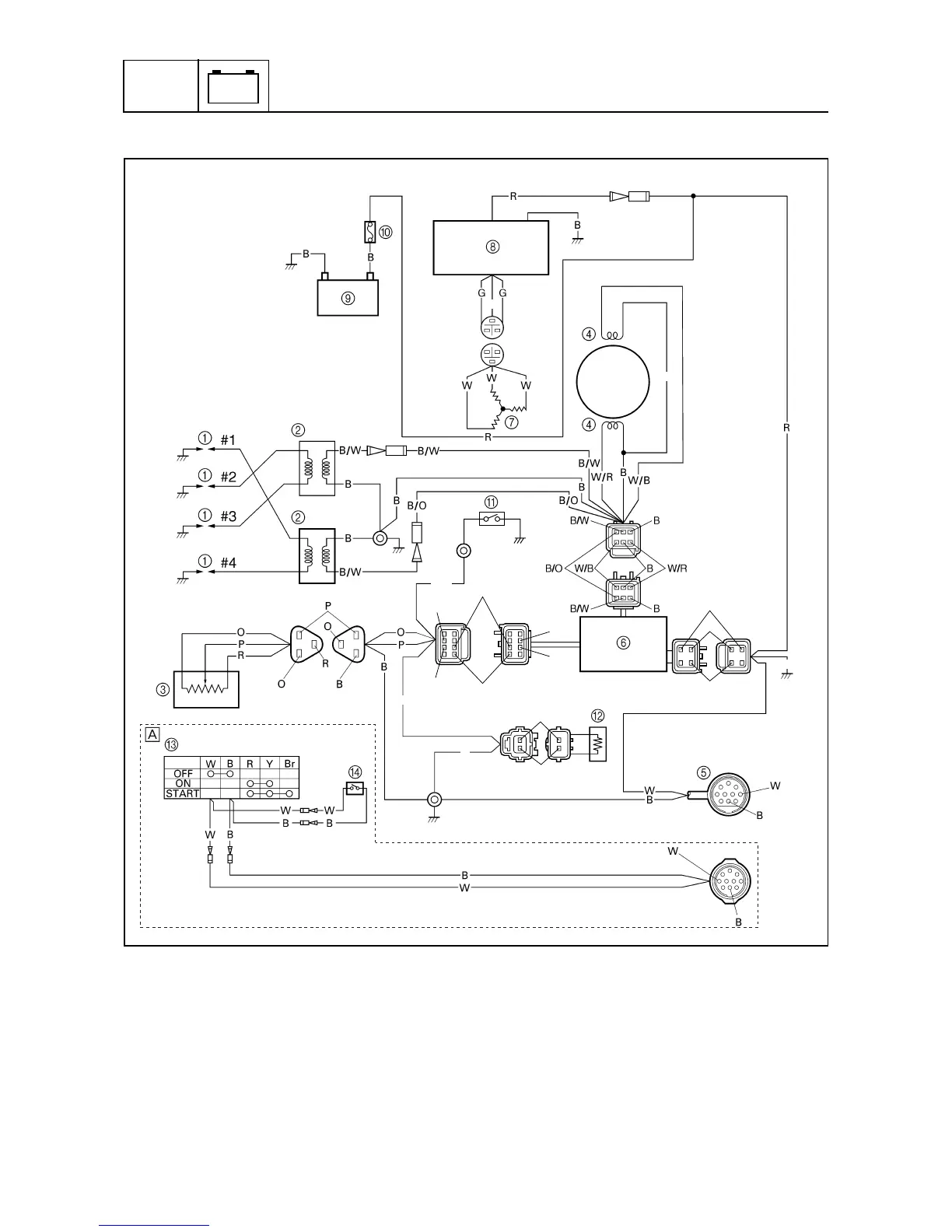

Ignition system and ignition control system
8
1
Spark plugs
2
Ignition coils
3
Throttle position
sensor
4
Pulser coils
5
10-P coupler
6
CDI unit
7
Lighting coil
8
Rectifier Regulator
9
Battery
0
Fuse (30 A)
A
Oil pressure switch
B
Thermo sensor
C
Engine start switch
D
Engine shut-off
switch
È
Tiller handle model
B: Black
Br : Brown
G: Green
O : Orange
P: Pink
R: Red
W: White
Y: Yellow
B/O : Black/orange
B/W : Black/white
B/Y : Black/yellow
G/W : Green/white
P/W : Pink/white
W/B : White/black
W/R : White/red
S60C8060
G/W
B/Y
B
B
B/Y
P/W
P
R
W
B
O
P/W
B/Y
P/W
B/Y
B
B
