Yamaha F100B - Installing the Power Trim and Tilt Motor

BRKT
Bracket unit
7-47
60C5D11
NOTE:
Place a clean cloth over the end of the arma-
ture shaft, hold the shaft with a pair of pliers
as shown, then carefully slide the yoke onto
the armature.

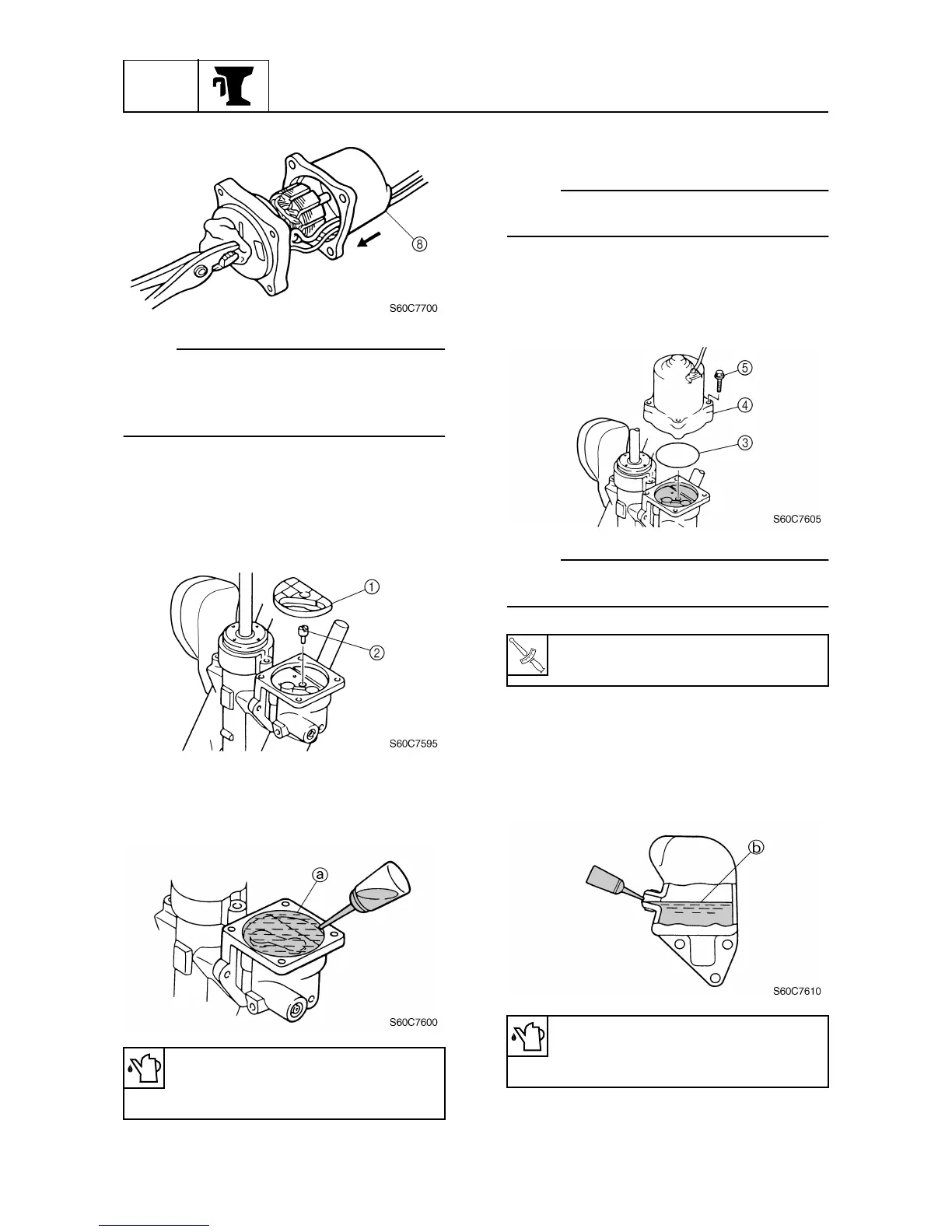

Installing the power trim and tilt
motor
1. Install the filter
1
and joint
2
into the
pump housing.
2. Fill the pump housing
a
with the recom-
mended fluid to the correct level as
shown.
3. Remove all of the air bubbles with a
syringe or suitable tool.
NOTE:
Turn the joint with a screwdriver, and then
remove any air between the pump gear teeth.
4. Install the new O-ring
3
, power trim and
tilt motor
4
, and then tighten the bolts
5
to the specified torque.
NOTE:
Align the armature shaft with the recess in
the joint.
5. Remove the reservoir cap.
6. Fill the reservoir
b
with the recom-
mended fluid to the brim of the filler hole
as shown.
Recommended power trim and tilt
fluid:
ATF Dexron
II
T
R
.
.
PTT motor bolt
5
:
5 N·m (0.5 kgf·m, 3.6 ft·lb)
Recommended power trim and tilt
fluid:
ATF Dexron
II
