Yamaha F100B - Disassembling the Propeller Shaft Assembly; Checking the Propeller Shaft Housing

60C5D11
6-12
1
2
3
4
5
6
7
8
9
2. Remove the ball bearing.
3. Remove the oil seals and needle bear-
ing.

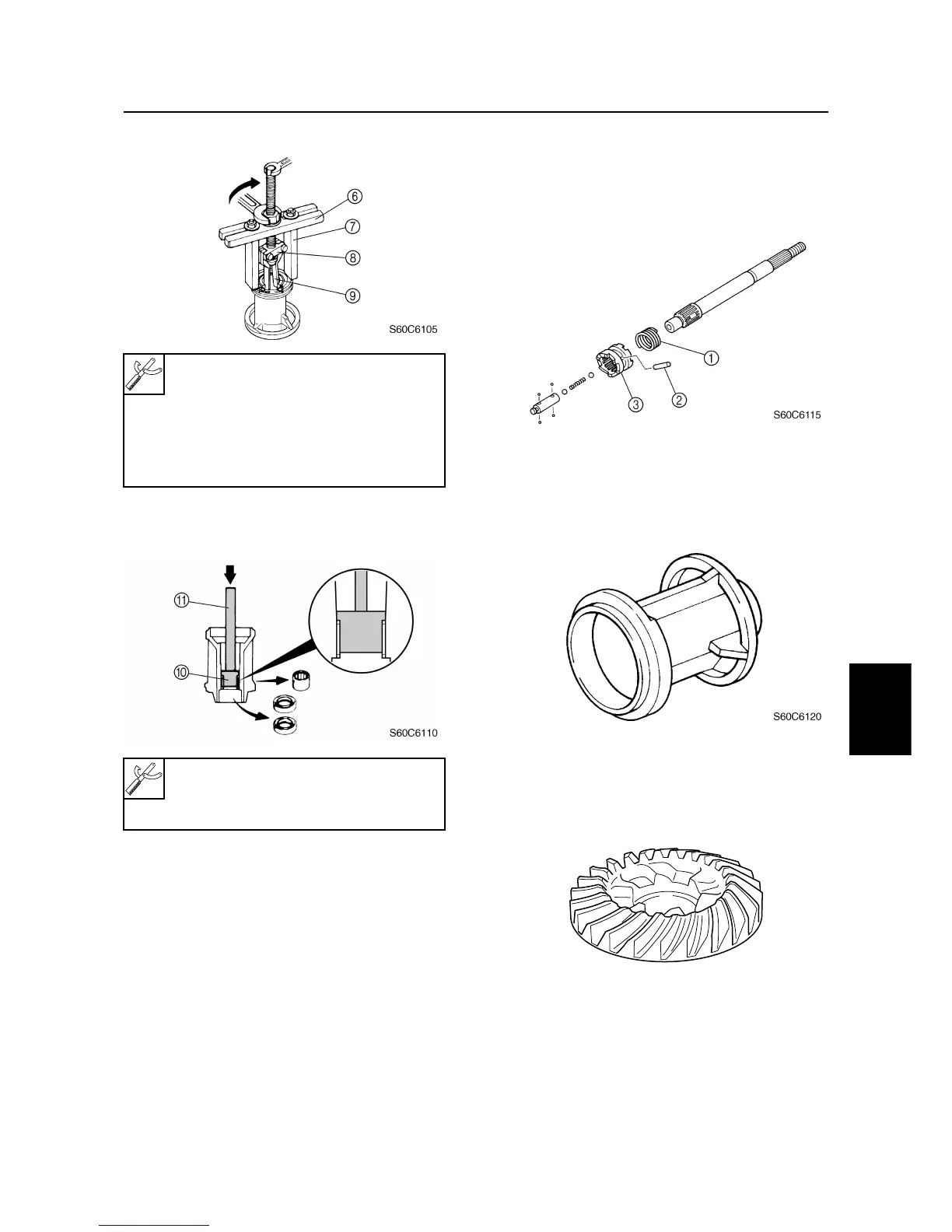

Disassembling the propeller shaft
assembly
1. Remove the spring
1
, and then remove
the cross pin
2
, dog clutch
3
, slider,
and spring.
Checking the propeller shaft housing
1. Clean the propeller shaft housing using a
soft brush and cleaning solvent, and then
check it for cracks. Replace if necessary.
2. Check the teeth and dogs of the reverse
gear for cracks or wear. Replace the
gear if necessary.
Stopper guide plate
6
: 90890-06501
Stopper guide stand
7
:
90890-06538
Bearing puller
8
: 90890-06535
Bearing puller claw 1
9
:
90890-06536
Needle bearing attachment
0
:
90890-06653
Driver rod L3
A
: 90890-06652
S60C6125
Propeller shaft housing (F100B)
