Yamaha F100B Service Manual

60C5D11
7-88
1
2
3
4
5
6
7
8
9

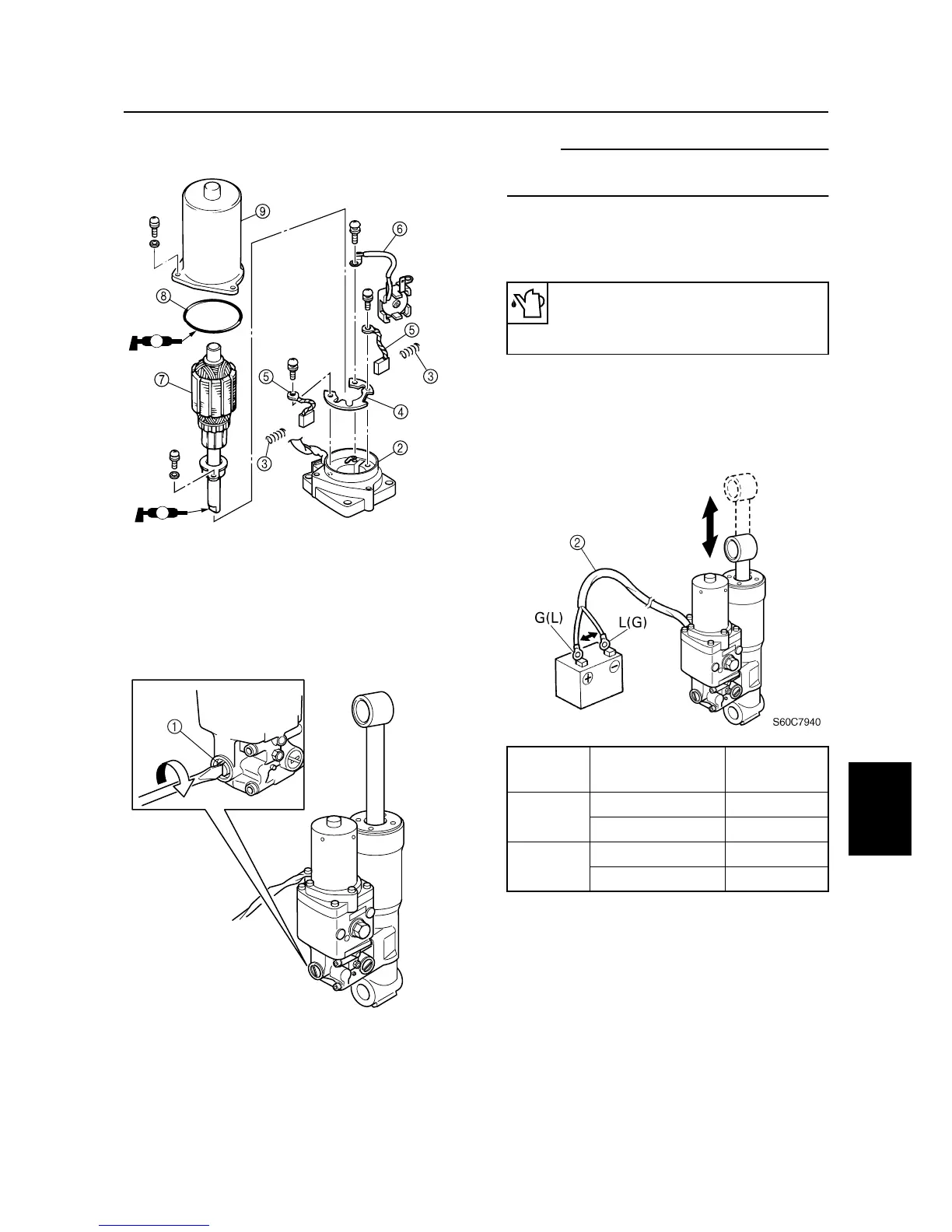

3. Install the armature
7
, O-ring
8
, and
yoke
9
.
Bleeding the power trim and tilt
unit (F100C)
7
Not installed
1. Close the manual valve
1
by turning it
clockwise.
2. Place the power trim and tilt unit in an
upright position.
3. Check the fluid level in the reservoir.
NOTE:
The fluid level should be at the brim of the
filler hole.
4. If necessary, add sufficient fluid of the
recommended type to the correct level.
5. Install the reservoir cap.
6. Connect the PTT motor leads
2
to the
battery terminals.
7. Reverse the PTT motor leads between
the battery terminals to fully extend the
tilt ram, and then reverse them again to
fully retract the ram.
S60C7970
AA
AA
S60C7935
Recommended power trim and tilt
fluid:
ATF Dexron
II
Tilt ram PTT motor lead
Battery
terminal
Up
Blue (L)
+
Green (G)
-
Down
Green (G)
+
Blue (L)
-
Power trim and tilt motor (F100C) / Bleeding the power trim and tilt unit (F100C)
