Yamaha F100B Service Manual

60C5D11
7-70
1
2
3
4
5
6
7
8
9

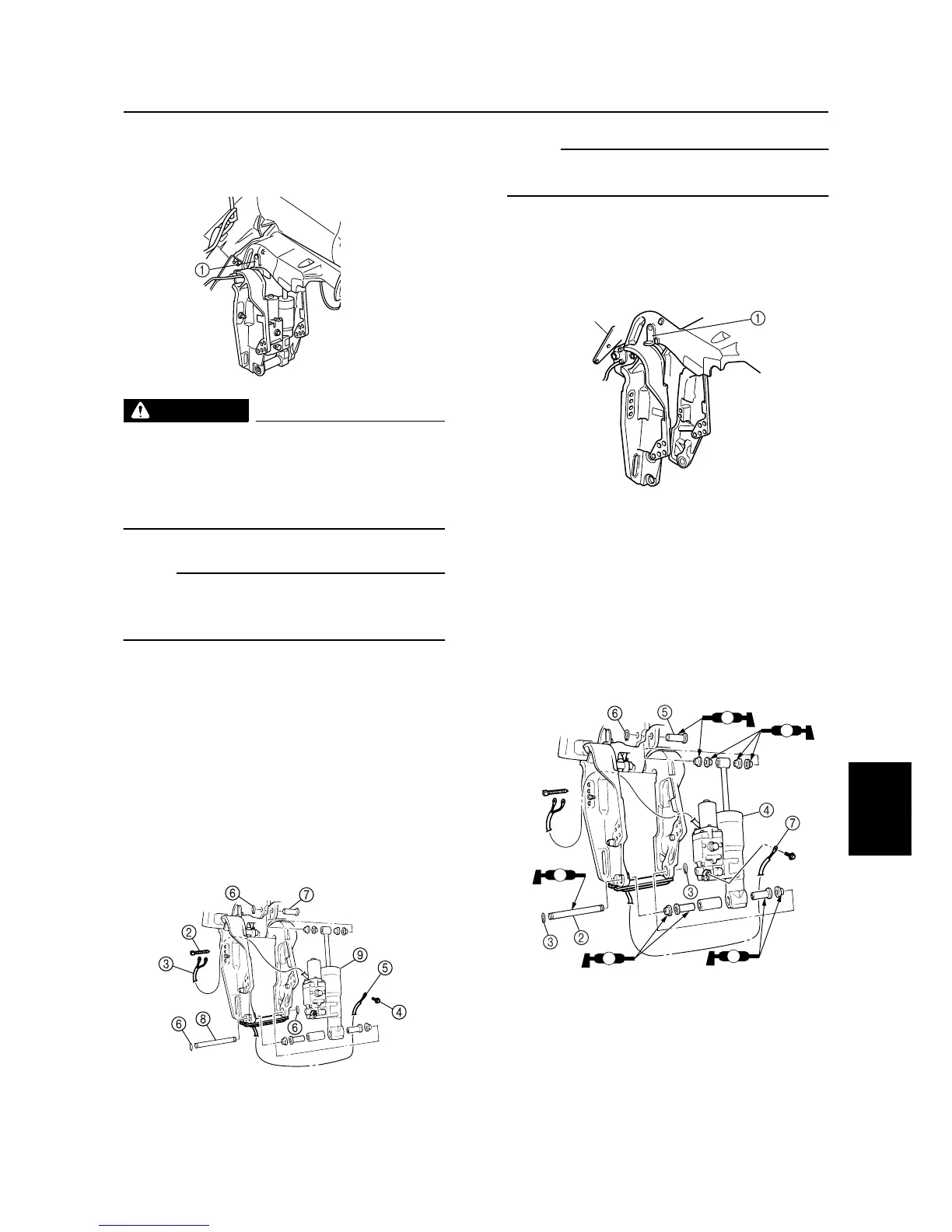

Removing the power trim and tilt unit
1. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
1
.
WARNING
After tilting up the outboard motor, be
sure to support it with the tilt stop lever.
Otherwise, the outboard motor could sud-
denly lower if the power trim and tilt unit
should lose fluid pressure.
NOTE:
If the power trim and tilt does not operate,
loosen the manual valve and tilt the outboard
motor up manually.
2. Loosen the plastic ties
2
, and then pull
out the PTT motor lead
3
.
3. Remove the bolt
4
and disconnect the
ground lead
5
.
4. Remove the circlips
6
, then shafts
7
and
8
.
5. Remove the power trim and tilt unit
9
.
NOTE:
To remove the power trim and tilt unit, lower
the tilt ram slightly.
Installing the power trim and tilt unit
1. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
1
.
2. Install the shaft
2
and circlips
3
onto
both clamp brackets together with the
power trim and tilt unit
4
.
3. Install the tilt ram upper end into the
swivel bracket with the shaft
5
and cir-
clip
6
.
4. Connect the ground lead
7
.
S60C7750
S60C7755
S60C7975
S60C7980
AA
AA
AA
AA
AA
Power trim and tilt unit (F100C)
